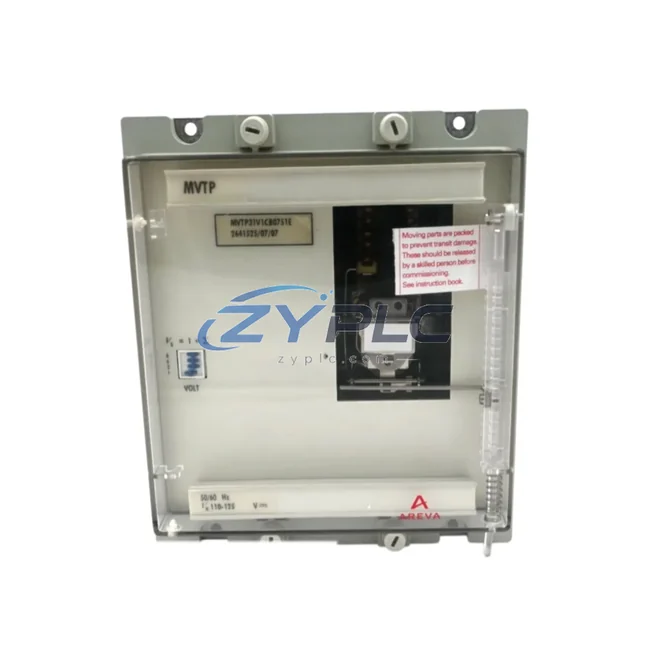

GE MVTP31V1CB0751E Protection Relay for Multilin Systems

GE MVTP31V1CB0751E: Industrial Data Link for Multilin Protection Systems

The GE MVTP31V1CB0751E is a high-performance bus-wire supervision and protection relay from GE’s renowned Multilin Series, engineered to serve as a critical node in the industrial data chain of modern smart factories. Designed for demanding power distribution and protection environments, this relay bridges the gap between field-level protection devices and upper-layer control systems — including SCADA platforms, HMI terminals, and DCS architectures — delivering real-time fault detection, event logging, and remote diagnostic capability across complex industrial networks.

In today’s connected manufacturing environment, protection relays are no longer passive switching devices. The MVTP31V1CB0751E functions as an active participant in the industrial communication fabric, supporting structured data exchange between substation automation systems, PLC controllers, and remote monitoring stations. Its integration into a GE Multilin-based protection scheme ensures that every trip event, alarm condition, and status change is captured, timestamped, and transmitted upstream with minimal latency — enabling operators to respond to faults before they escalate into costly downtime.

Compatibility & Integration Notes

Connected Automation Data Flow

The MVTP31V1CB0751E sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with current transformers (CTs), voltage transformers (VTs), and bus-bar monitoring sensors to acquire real-time electrical parameters. These analog signals are digitized and processed internally, then transmitted via Modbus RTU over RS-485 to a GE RX3i PLC controller or a GE PACSystems CPU module acting as the primary automation controller on the plant floor.

Within the same protection zone, the MVTP31V1CB0751E communicates peer-to-peer with other Multilin relays — such as the GE Multilin 750/760 Feeder Protection Relay and the GE Multilin 850 Universal Relay — using IEC 61850 GOOSE messaging over a dedicated substation LAN. This high-speed inter-relay communication enables coordinated tripping and interlocking logic without routing signals through the PLC, dramatically reducing response time during fault conditions.

Data from the MVTP31V1CB0751E is aggregated by a GE MDS SD9 Industrial Gateway or a compatible edge gateway device, which consolidates protection event records, energy metering data, and alarm logs before forwarding them to the plant SCADA server via DNP3 over TCP/IP. The SCADA platform — typically running on GE Cimplicity or a third-party system such as Ignition by Inductive Automation — displays real-time bus voltage, current, and protection status on operator HMI screens, enabling continuous visibility into the health of the power distribution network.

For remote I/O expansion, the MVTP31V1CB0751E integrates with GE Versamax Remote I/O modules deployed across distributed panel boards, collecting digital status signals from circuit breakers, disconnect switches, and auxiliary contacts. These status inputs are mapped into the relay’s logic engine and reflected in the SCADA database, providing a complete digital twin of the switchgear lineup. When a trip event occurs, the relay simultaneously issues a GOOSE trip command to adjacent relays, logs a time-stamped fault record internally, and transmits an unsolicited DNP3 event report to the SCADA master — all within milliseconds.

At the drive and motor protection layer, the MVTP31V1CB0751E coordinates with GE AF-600 FP variable frequency drives and motor protection relays to supervise bus voltage quality during motor starting sequences. Voltage sag events detected by the MVTP31V1CB0751E can trigger pre-programmed load-shedding routines in the PLC, protecting sensitive drives and preventing cascading failures across the production line. This tight integration between protection relays, drives, and the PLC controller exemplifies the data-driven approach to smart factory power management.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial power systems is the fragmentation of protection data across incompatible relay generations and communication protocols. Older electromechanical relays generate no digital data at all, while first-generation numerical relays may support only proprietary serial protocols that cannot be integrated into modern Ethernet-based SCADA architectures. The result is a patchwork of data islands — protection events that are never captured, fault records that exist only on local relay displays, and alarm conditions that go unnoticed until a physical inspection is performed.

The GE MVTP31V1CB0751E addresses this challenge directly by supporting multiple communication protocols simultaneously. Its dual-port architecture allows it to maintain a legacy Modbus RTU connection to an existing PLC while simultaneously participating in an IEC 61850 substation automation network — bridging old and new infrastructure without requiring a complete system replacement. This protocol gateway capability is particularly valuable in brownfield industrial sites where capital investment in existing equipment must be preserved while modernization proceeds incrementally.

Remote monitoring and diagnostics are further enhanced by the relay’s ability to generate detailed fault records, including pre-fault and post-fault waveform data, which can be retrieved remotely via the SCADA system or a dedicated relay configuration tool such as GE EnerVista Multilin Setup Software. Maintenance engineers can analyze fault waveforms from the control room or even from off-site locations, eliminating the need for physical site visits during initial fault investigation. This capability directly supports the predictive maintenance strategies that are central to Industry 4.0 and smart factory initiatives.

System scalability is another key advantage. As production capacity expands and new switchgear panels are added to the distribution system, additional Multilin relays can be integrated into the existing IEC 61850 network with minimal configuration effort. The MVTP31V1CB0751E’s role as a bus supervision relay means it can monitor multiple feeder circuits simultaneously, providing a centralized view of bus health that scales naturally with the size of the installation. Combined with structured data export to historian databases and MES platforms, this relay becomes a foundational element of a fully transparent, data-driven production environment.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE MVTP31V1CB0751E support, and is it compatible with existing Modbus-based SCADA systems?
The MVTP31V1CB0751E supports IEC 61850, Modbus RTU, and DNP3 protocols, making it compatible with the vast majority of industrial SCADA and DCS platforms. Its multi-protocol architecture allows it to serve as a protocol gateway between legacy Modbus RTU networks and modern IEC 61850 substation automation systems, enabling seamless integration into both greenfield and brownfield industrial sites without requiring replacement of existing infrastructure.

Q2: How does the relay ensure network stability and minimize communication latency in time-critical protection applications?
The MVTP31V1CB0751E uses IEC 61850 GOOSE messaging for peer-to-peer inter-relay communication, which operates at the Ethernet layer and achieves trip signal transmission times well under 4 milliseconds — far faster than any SCADA-routed command. For SCADA reporting, DNP3 unsolicited event reporting ensures that fault events are pushed to the master station immediately upon occurrence, without waiting for a polling cycle. This combination of fast local communication and reliable upstream reporting ensures that protection actions are never delayed by network congestion.

Q3: Can the MVTP31V1CB0751E be integrated into an existing GE Multilin protection scheme alongside other relay models?
Yes. The MVTP31V1CB0751E is designed to operate within a coordinated GE Multilin protection architecture alongside other relays in the Multilin family, including feeder protection, motor protection, and transformer protection relays. IEC 61850 GOOSE-based interlocking and coordinated tripping logic can be configured across multiple relay models using GE EnerVista Multilin Setup Software, enabling a fully integrated protection scheme with centralized event management and consistent data formatting across all devices.

Q4: What quality assurance and warranty coverage is provided with the GE MVTP31V1CB0751E?
Every GE MVTP31V1CB0751E unit is functionally tested prior to shipment to verify communication port operation, protection logic execution, and relay output performance. The unit is supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and replacement requirements in critical industrial power systems.
