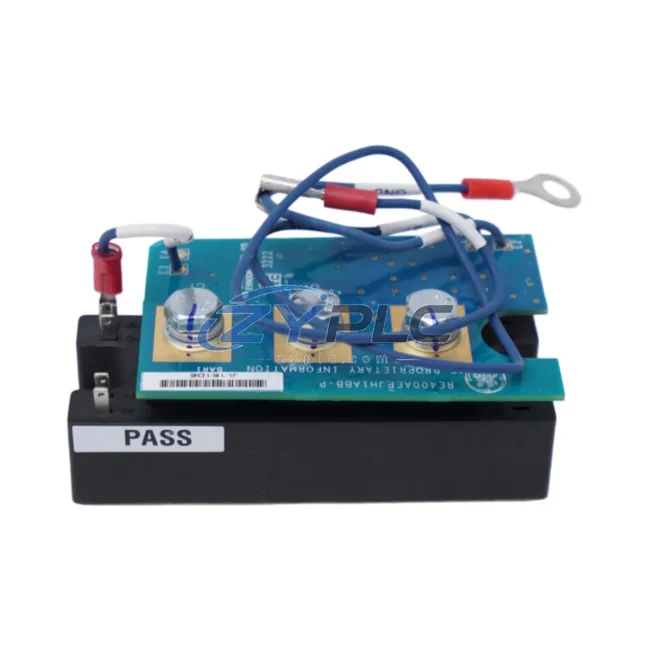

GE RE400REPJH1ABA Redundancy Controller Module for PACSystems

GE RE400REPJH1ABA Industrial Network Interface for PACSystems: Precision Data Link for Smart Factory Connectivity

In modern industrial environments where uptime is non-negotiable and data transparency drives every operational decision, the GE RE400REPJH1ABA Redundancy Controller Module stands as a critical node in the PACSystems control architecture. Designed to maintain seamless communication continuity between primary and backup controllers, this module ensures that the data flow across your plant network never falters — even during controller switchover events. Whether your facility runs Profinet, EtherNet/IP, Modbus TCP, or SRTP (Service Request Transport Protocol), the RE400REPJH1ABA integrates into the broader GE PACSystems ecosystem to deliver real-time data exchange between field devices, PLCs, remote I/O racks, HMI panels, SCADA servers, and enterprise-level MES platforms.

At ZYPLC, every RE400REPJH1ABA unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting urgent maintenance replacements and planned system expansions alike.

Compatibility & Integration Notes

Connected Automation Data Flow

The RE400REPJH1ABA does not operate in isolation — it is the backbone of a redundant, high-availability control network. In a typical PACSystems RX3i redundancy configuration, the module works in tandem with the GE IC695CPE330 CPU, synchronizing controller states across the redundancy link at millisecond intervals. This ensures that when a primary CPU fault is detected, the standby controller assumes control without any perceptible interruption to the production line.

On the field device side, the RE400REPJH1ABA communicates with distributed I/O racks populated with modules such as the GE IC695MDL664 discrete output module and IC695ALG600 analog input module, collecting real-time process data — temperatures, pressures, flow rates, and motor feedback signals — and routing them through the PACSystems backplane to the active CPU. This data is simultaneously mirrored to the standby controller via the redundancy sync link, ensuring both controllers maintain an identical process image at all times.

At the network layer, the PACSystems platform connects to plant-wide SCADA systems — such as GE iFIX or Wonderware InTouch — through the Ethernet port on the GE IC695ETM001 Ethernet Interface Module. The RE400REPJH1ABA ensures that SCADA polling continues uninterrupted during switchover, preserving historian data integrity and alarm state continuity. HMI panels, including the GE QuickPanel+ IC755CxS series, maintain live process visualization without requiring operator intervention during a redundancy event.

For drive-level integration, the PACSystems network communicates with GE AF-600FP series variable frequency drives via EtherNet/IP or Modbus TCP, enabling closed-loop motor speed control and energy monitoring directly from the PLC program. The RE400REPJH1ABA ensures that drive command continuity is maintained even during controller failover, preventing uncontrolled motor stops that could damage equipment or disrupt process flow.

Remote diagnostics are enabled through the SRTP protocol, allowing maintenance engineers to connect to the PACSystems controller from a remote workstation running GE Proficy Machine Edition programming software. Fault logs, I/O status, and redundancy health indicators are accessible in real time, enabling predictive maintenance decisions without requiring physical presence on the plant floor. Edge gateway devices, such as the GE MDS SD Series industrial router, can further extend this remote access capability over cellular or WAN networks, connecting isolated field sites to centralized SCADA infrastructure.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — where older Modbus RTU devices, newer EtherNet/IP instruments, and proprietary fieldbus components cannot communicate directly, creating data silos that obscure plant performance and delay fault response. The GE PACSystems platform, anchored by the RE400REPJH1ABA redundancy architecture, addresses this challenge through its multi-protocol CPU design and modular communication expansion.

By deploying the RE400REPJH1ABA alongside protocol-specific communication modules — such as the GE IC695PBM300 Profibus Master Module for legacy field devices — plant engineers can bridge older instrumentation into the modern Ethernet backbone without replacing existing hardware. This protocol gateway capability eliminates data isolation, allowing SCADA systems to receive unified, real-time data from every device on the plant floor regardless of its native communication standard.

Remote monitoring becomes fully transparent with the redundancy module in place. Because the RE400REPJH1ABA guarantees controller availability, SCADA historians receive continuous data streams without gaps caused by controller restarts or maintenance windows. This uninterrupted data flow is essential for production line transparency — enabling OEE (Overall Equipment Effectiveness) calculations, shift performance reporting, and energy consumption tracking to be performed with complete, accurate datasets.

System expansion is equally straightforward. The PACSystems RX3i backplane supports hot-insertion of additional I/O modules, and the redundancy architecture means that module additions or firmware updates can be performed on the standby controller while the primary remains in control — eliminating planned downtime for system upgrades. This scalability makes the RE400REPJH1ABA a long-term investment for facilities planning phased automation expansions over multiple years.

Pre-shipment testing at ZYPLC verifies redundancy switchover function, Ethernet port integrity, and backplane communication before every unit leaves our facility. Combined with the warranty terms confirmed during quotation, this ensures that your replacement or expansion module performs to specification from day one.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE RE400REPJH1ABA support?
The RE400REPJH1ABA operates within the GE PACSystems RX3i/RX7i redundancy architecture. Protocol support — including SRTP, EtherNet/IP, Modbus TCP, and Profinet — is determined by the paired CPU module (e.g., IC695CPE330) and installed communication modules (e.g., IC695ETM001). The redundancy module itself manages controller state synchronization over the dedicated redundancy sync link, ensuring protocol continuity during switchover events.

Q2: Is the RE400REPJH1ABA compatible with existing PACSystems RX3i installations?
Yes. The RE400REPJH1ABA is designed for the PACSystems RX3i and RX7i backplane architecture. Compatibility depends on the CPU firmware version and redundancy configuration. ZYPLC recommends verifying the firmware revision of your existing IC695CPE330 or equivalent CPU before installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q3: How does the redundancy module affect network stability and SCADA data continuity?
The RE400REPJH1ABA performs controller state synchronization at sub-100ms intervals, enabling bumpless switchover that is transparent to SCADA polling cycles. EtherNet/IP and Modbus TCP connections from SCADA servers and HMI panels are maintained through the switchover event, ensuring historian data streams and alarm states remain continuous. Network stability is further enhanced by the dual Ethernet port design, which supports redundant network paths.

Q4: What testing and warranty coverage does ZYPLC provide for the RE400REPJH1ABA?
Every RE400REPJH1ABA unit shipped by ZYPLC undergoes pre-shipment functional testing, including redundancy sync port verification, Ethernet interface testing, and backplane communication checks. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified hardware defect within the warranty period, ZYPLC will provide a replacement unit or full refund. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty claims and technical support.
