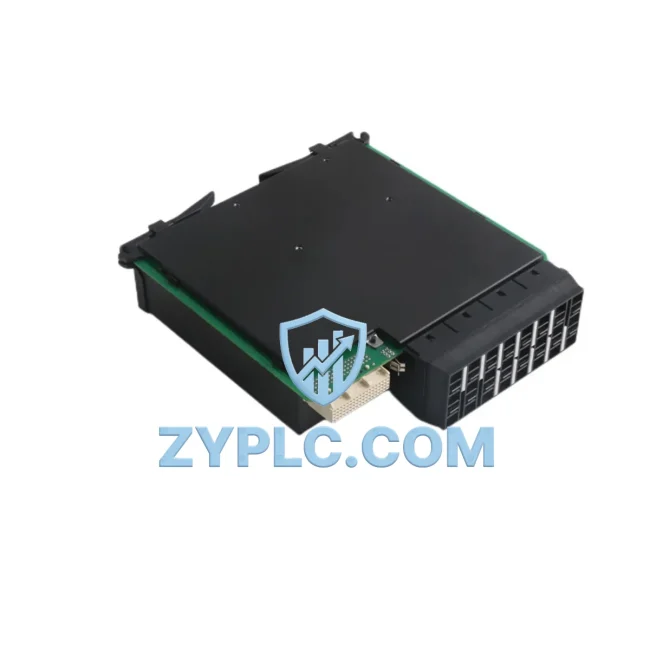

GE UR-8LH VT Module for Multilin UR

GE UR-8LH VT Module for Multilin UR Series

The GE UR-8LH is a dedicated Voltage Transformer (VT) input module engineered for seamless integration within the GE Multilin Universal Relay (UR) platform. Rather than functioning as a standalone component, the UR-8LH is designed to occupy a precise role within a layered protection and control architecture — serving as the primary analog voltage acquisition interface between field-level instrument transformers and the UR relay’s internal processing core. Its deployment directly influences the accuracy of protection algorithms, the reliability of metering outputs, and the long-term stability of the entire substation automation system.

In modern power system protection architectures, voltage measurement fidelity is foundational. The UR-8LH accepts voltage signals from external VTs and conditions them for use by the UR relay’s DSP engine, enabling functions such as overvoltage protection (59), undervoltage protection (27), directional overcurrent supervision, and synchrocheck (25). When paired with the UR-8CT current transformer input module, the UR-8LH completes the analog front-end of the relay, allowing the system to perform differential protection, distance protection, and power quality monitoring with high precision across transmission and distribution applications.

The UR platform’s modular backplane architecture allows the UR-8LH to be installed in designated analog input slots within the UR chassis, alongside communication modules such as the UR-9GH Ethernet module or the UR-9G fiber optic communications card. This modularity ensures that protection engineers can configure the relay’s I/O complement to match the exact requirements of each application — whether that is a simple feeder protection scheme or a complex bus differential arrangement requiring multiple voltage and current input channels.

From a system integration perspective, the UR-8LH contributes to the overall coherence of the protection panel. In a typical switchgear bay, the relay chassis housing the UR-8LH will also accommodate a UR-9PH power supply module, which provides regulated DC power to all installed modules. The power supply’s stability directly affects the analog measurement accuracy of the UR-8LH, making the selection of a compatible, high-quality power module a critical engineering decision. Redundant power supply configurations using dual UR-9PH modules are commonly deployed in critical infrastructure applications to eliminate single points of failure at the power layer.

At the network and communications layer, the UR relay platform supports IEC 61850 GOOSE messaging, DNP3, and Modbus protocols through its communications modules. The UR-8LH’s voltage measurements are made available to SCADA systems and substation automation controllers via these protocols, enabling real-time voltage monitoring, event logging, and remote protection setting changes. Integration with a GE D60 Line Distance Relay or a GE T60 Transformer Protection Relay in the same protection zone allows engineers to build coordinated, multi-function protection schemes where voltage data from the UR-8LH informs both local and remote protection decisions.

For engineering teams managing large fleets of UR-series relays, the UR-8LH’s compatibility with GE’s EnerVista UR Setup software simplifies commissioning and ongoing maintenance. Technicians can verify channel scaling, confirm VT ratio settings, and perform secondary injection tests without removing the module from service. This reduces commissioning time and minimizes the risk of configuration errors that could compromise protection system integrity.

Long-term maintainability is a key consideration in substation design. The UR-8LH’s hot-swappable module design — consistent with the broader UR platform architecture — allows field replacement without de-energizing the relay chassis, provided that appropriate safety procedures are followed. This capability is particularly valuable in live substation environments where outage windows are limited. Spare module inventory planning is simplified by the UR-8LH’s cross-compatibility with multiple UR relay models, including the GE C60 Circuit Breaker Relay, GE L90 Line Differential Relay, and GE B90 Bus Differential Relay.

In process industries such as petrochemical plants, water treatment facilities, and mining operations, the UR-8LH supports protection schemes for medium-voltage motors, transformers, and feeders. Its wide input voltage range accommodates the diverse VT secondary voltages encountered in these environments, and its high-accuracy analog front-end ensures that protection functions operate correctly even under abnormal system conditions such as voltage unbalance or harmonic distortion.

All UR-8LH modules supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that customers receive full technical support and replacement coverage for the duration of the warranty period. Our inventory is sourced from verified supply chains, and each module undergoes functional verification prior to shipment to confirm that it meets GE Multilin’s original performance specifications.

Product Specification Table

System Compatibility Notes

The UR-8LH operates as part of a tightly coordinated relay architecture. In a complete UR-series protection panel, it works alongside the UR-8CT current transformer input module to provide the full analog front-end required for differential and distance protection functions. The UR-9PH power supply module delivers regulated DC power to the chassis, ensuring stable analog measurement conditions for the UR-8LH across all operating scenarios.

Communications modules such as the UR-9GH Ethernet communications card and the UR-9G fiber optic interface relay the UR-8LH’s voltage measurements to SCADA and substation automation systems via IEC 61850 GOOSE and DNP3 protocols. In multi-relay protection schemes, the UR-8LH-equipped relay coordinates with adjacent protection devices including the GE D60 Line Distance Relay, GE T60 Transformer Protection Relay, GE C60 Circuit Breaker Relay, and GE L90 Line Differential Relay to form a comprehensive, zone-based protection architecture. Terminal block assemblies and marshalling panels complete the wiring interface between the UR chassis and field instrument transformers, ensuring signal integrity from the VT secondary all the way to the relay’s DSP core.

Industrial Application Notes

The UR-8LH finds application across a broad range of industrial and utility environments. In electrical power transmission and distribution, it supports line protection, transformer protection, and bus protection schemes at 33 kV to 500 kV substations. In petrochemical and refinery facilities, it protects medium-voltage switchgear feeding critical process loads, where voltage measurement accuracy is essential for motor protection coordination. In water treatment and pumping stations, the UR-8LH enables reliable feeder protection for high-capacity pump motors, with voltage-based protection functions preventing equipment damage during supply disturbances.

In mining and mineral processing operations, the module supports protection of underground and surface medium-voltage distribution systems, where harsh environmental conditions demand robust, well-proven relay hardware. In metallurgical and steel plants, it contributes to arc furnace feeder protection and transformer differential schemes, where precise voltage measurement is critical for correct operation of high-speed protection functions. Across all these applications, the UR-8LH’s role within the UR platform’s modular architecture ensures that protection engineers can adapt the relay’s configuration to meet evolving system requirements without replacing the entire relay.

Product Compatibility FAQ

Q1: Is the UR-8LH compatible with all GE Multilin UR-series relay models?
The UR-8LH is designed for use within the GE Multilin Universal Relay (UR) platform and is compatible with UR-series relay models that support modular analog input expansion, including the C60, D60, T60, L90, and B90. Compatibility should be confirmed against the specific relay model’s order code and firmware version using GE’s EnerVista UR Setup software prior to installation.

Q2: Can the UR-8LH be replaced in the field without a full system shutdown?
The UR platform’s modular design supports hot-swap module replacement under appropriate safety conditions. However, field replacement procedures must comply with the site’s electrical safety rules and GE Multilin’s installation guidelines. ZYPLC recommends consulting the relay’s instruction manual and coordinating with the protection engineer responsible for the installation before performing any module replacement in a live substation environment.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. During the warranty period, ZYPLC provides technical support and replacement modules at no additional cost. For long-term spare parts planning, ZYPLC maintains verified inventory of UR-series modules to support customers’ maintenance and lifecycle management programs, reducing the risk of extended outages due to spare parts unavailability.

—
