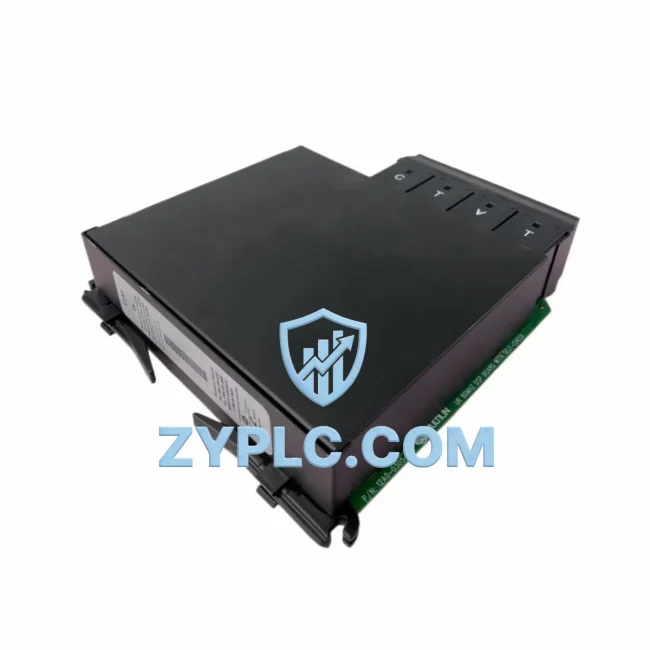

GE UR-8NH Protection Relay for UR Series Automation
The GE UR-8NH is a high-performance voltage transformer (VT) input module designed for the GE UR Series Universal Relay platform. In modern industrial facilities where energy accountability is no longer optional, the UR-8NH plays a critical role in the protection and monitoring architecture that keeps electrical systems running at peak efficiency. By delivering precise voltage sensing data to the UR relay processor, this module enables the kind of real-time fault detection and load management that directly reduces unnecessary energy consumption, prevents unplanned downtime, and extends the operational lifespan of connected equipment.
Product Specification Table
| Parameter |
Specification |
| SKU / Model |
GE UR-8NH |
| Series |
GE UR Series Universal Relay |
| Module Type |
VT (Voltage Transformer) Input Module |
| Input Channels |
8-channel voltage input |
| Nominal Input Voltage |
Up to 300 V AC (phase-to-neutral) |
| Operating Frequency |
50 / 60 Hz |
| Power Consumption |
Ultra-low self-consumption design (<5 W typical) |
| Running Efficiency |
High-accuracy metering class; <0.5% measurement error |
| Compatible Systems |
GE UR Series (C60, C70, D60, F60, G60, L90, M60, T60) |
| Application Environment |
Substations, motor control centers, industrial power distribution |
| Energy Saving Value |
Enables precise load shedding, fault isolation, and demand response |
| Communication Protocol |
IEC 61850, DNP3, Modbus RTU/TCP (via UR relay processor) |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Ships after outgoing quality test |
System Compatibility and Application
The GE UR-8NH does not operate in isolation — it is the voltage sensing backbone of a tightly integrated protection and maintenance planning ecosystem. In a typical industrial substation or motor control center, the UR-8NH slots into the UR relay chassis alongside complementary modules such as the GE UR-8CT current transformer input module, which together provide the complete voltage and current picture required for accurate power metering and differential protection.
At the relay processor level, the GE UR-CPU module processes the analog signals from the UR-8NH and executes protection algorithms in under 4 milliseconds, enabling rapid fault isolation that prevents energy-wasting fault conditions from propagating across the bus. When paired with the GE UR-8D digital I/O module, the system can automatically trigger load shedding sequences or switch to backup feeders without operator intervention, dramatically reducing the duration and energy cost of disturbance events.
For facilities running GE’s broader digital substation strategy, the UR-8NH-equipped relay communicates seamlessly with the GE EnerVista UR Setup software platform, which provides centralized configuration, real-time waveform capture, and energy consumption trending across multiple relay nodes. This data feeds directly into plant-level maintenance planning systems, allowing engineers to identify inefficient load profiles, schedule preventive maintenance during low-demand windows, and validate that protection settings remain aligned with actual operating conditions.
In drive-intensive environments — such as those running GE AF-600 FP variable frequency drives on large induction motors — the UR-8NH provides the upstream voltage quality monitoring that ensures the VFD input is receiving clean, stable power. Voltage sags, swells, or harmonic distortion detected by the UR-8NH can trigger pre-programmed responses in the relay, protecting both the drive and the motor from conditions that would otherwise cause premature insulation degradation and increased energy losses.
For multi-feeder industrial plants, the UR-8NH integrates with GE Multilin 850 feeder protection relays and GE Multilin 735 motor protection relays to form a coordinated protection zone. This coordination ensures that only the faulted segment is isolated during a fault event, keeping the rest of the production line energized and avoiding the cascading shutdowns that waste both energy and production time. The GE Multilin EPM 7000 power quality meter can be deployed alongside the UR relay to provide sub-cycle power quality data, giving maintenance teams the granular visibility needed to implement targeted energy efficiency improvements.
Where IEC 61850 GOOSE messaging is deployed, the UR-8NH-equipped relay participates in peer-to-peer protection schemes with other IED devices on the substation LAN, enabling bus differential protection and inter-relay blocking schemes that eliminate the need for dedicated pilot wire circuits — reducing both installation cost and the energy overhead of legacy copper-based protection infrastructure.
Maintenance and Replacement Notes
Consider a continuous process plant — a cement factory, a steel rolling mill, or a chemical processing facility — where electrical energy represents 30–50% of total operating cost. In these environments, the GE UR-8NH contributes to maintenance planning at multiple levels of the production hierarchy.
At the equipment level, the UR-8NH enables the UR relay to perform real-time voltage unbalance detection. Even a 2% voltage unbalance on a three-phase motor can increase motor losses by 8% or more. By detecting and alarming on unbalance conditions early, the UR-8NH allows maintenance teams to correct supply issues — loose connections, blown fuses on one phase, or transformer tap mismatches — before they translate into measurable unplanned downtime and accelerated motor winding degradation.
At the production line level, the UR-8NH supports demand response programs by providing the accurate voltage and power factor data needed to calculate real-time kVA demand. When integrated with a plant SCADA system via Modbus TCP or DNP3, this data enables automated demand management: non-critical loads such as HVAC compressors, auxiliary conveyors, or lighting circuits can be temporarily shed during peak tariff windows, reducing peak demand charges without interrupting core production processes.
From a maintenance cost perspective, the UR-8NH’s waveform capture capability — triggered automatically on fault or disturbance events — provides post-event analysis data that eliminates the guesswork from root cause investigations. Instead of scheduling broad preventive maintenance shutdowns, maintenance engineers can use the captured data to perform targeted, condition-based interventions: replacing a specific transformer, re-torquing a specific bus connection, or adjusting a specific relay setting. This shift from time-based to condition-based maintenance directly reduces maintenance labor costs and the energy cost of unnecessary equipment restarts.
For facilities with 12-month warranty requirements on replacement parts — a common procurement standard in regulated industries — the GE UR-8NH ships with a full 12-month warranty from ZYPLC, backed by pre-shipment functional testing and outgoing quality inspection. Each unit is verified for correct channel mapping, input impedance, and communication handshake with the UR relay processor before dispatch, ensuring that the module performs to specification from day one of installation.
Product Sourcing FAQ
Q1: How does the GE UR-8NH contribute to measurable operational stability in an industrial plant?
The UR-8NH provides the accurate voltage measurement data that enables the UR relay to perform precise power factor monitoring, voltage unbalance detection, and demand metering. These capabilities allow plant engineers to identify and correct energy-wasting conditions — such as low power factor, voltage unbalance, or overloaded feeders — that would otherwise go undetected until they cause equipment failure or appear as unexplained increases in the electricity bill.
Q2: Which GE UR Series relay models is the UR-8NH compatible with?
The UR-8NH is compatible with the full range of GE UR Series Universal Relay platforms, including the C60 (feeder protection), C70 (generator protection), D60 (line distance protection), F60 (feeder management relay), G60 (generator management relay), L90 (line differential relay), M60 (motor protection relay), and T60 (transformer management relay). Compatibility is determined by the relay chassis slot configuration — consult the UR Series Installation Manual or contact ZYPLC for chassis-specific slot mapping guidance.
Q3: Can the UR-8NH replace an existing VT module from a different manufacturer or an older GE UR revision?
Direct replacement is possible in most cases, provided the chassis form factor and firmware revision are compatible. ZYPLC recommends verifying the relay order code and firmware version before ordering a replacement UR-8NH. Our technical team can assist with compatibility verification based on the relay nameplate data. In cases where a firmware upgrade is required to support the replacement module, ZYPLC can advise on the upgrade path.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every GE UR-8NH supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each module undergoes outgoing quality inspection including channel continuity verification, input impedance measurement, and communication interface testing. A test report is available upon request. Warranty claims are processed directly through ZYPLC — contact plc.sales@zyplc.com with the order reference and fault description to initiate a warranty assessment.
