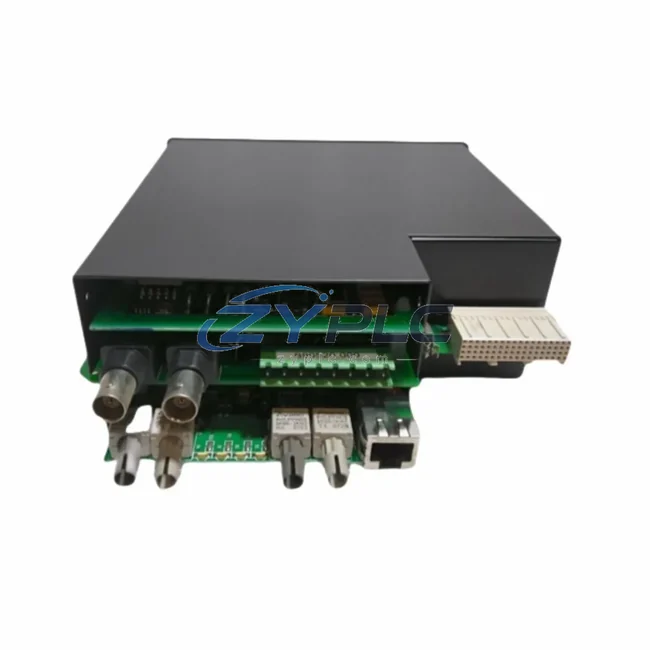

GE UR5EH CPU Board for UR Automation

GE UR5EH CPU Board for UR Series Automation

The GE UR5EH is a high-performance CPU Board Module engineered for the GE UR Series Universal Relay platform, delivering precision protection logic, real-time power monitoring, and maintenance-focused control execution across demanding industrial environments. Designed for substations, power distribution networks, and process automation systems, the UR5EH enables plant engineers to reduce unplanned downtime risk, improve equipment utilization rates, and maintain tighter control over motor protection and feeder management — all within a unified relay architecture.

Unlike conventional relay processors that operate in isolation, the UR5EH integrates seamlessly with the broader UR Series ecosystem, enabling coordinated protection schemes that minimize fault-induced downtime and reduce the unplanned downtime associated with unplanned shutdowns. Its deterministic processing cycle supports fast fault detection and trip response, which directly translates to reduced arc flash exposure, lower thermal stress on connected equipment, and improved overall system efficiency.

Product Specification Table

System Compatibility and Application

In a modern industrial maintenance planning architecture, the GE UR5EH CPU Board serves as the intelligent core of the protection and control layer. It works in concert with a range of system components to deliver end-to-end energy visibility and control. At the field level, current and voltage inputs are gathered through the UR Series analog input modules, processed by the UR5EH’s onboard logic engine, and translated into actionable protection commands — all within milliseconds.

For motor-driven applications, the UR5EH integrates with the GE MM300 Motor Management Relay to provide coordinated overload protection and operating load tracking. When paired with the GE F60 Feeder Protection Relay, the UR5EH enables zone-selective interlocking that prevents unnecessary upstream tripping, preserving system uptime and reducing the energy cost of restart sequences. In transformer protection applications, the GE T60 Transformer Protection Relay shares the same UR platform, allowing the UR5EH CPU architecture to be leveraged across multiple protection zones with consistent firmware and configuration tools.

On the communications side, the UR5EH supports IEC 61850 GOOSE messaging, enabling high-speed peer-to-peer communication with other UR Series relays such as the GE L90 Line Differential Relay and the GE D60 Line Distance Relay — eliminating the need for hardwired intertrip schemes and reducing copper wiring costs. Integration with GE’s EnerVista UR Setup software allows engineers to configure protection settings, monitor real-time energy parameters, and perform remote diagnostics without interrupting production.

For broader SCADA integration, the UR5EH communicates via DNP3 and Modbus TCP to upstream maintenance planning systems, including GE’s GridSolutions SCADA platforms and third-party DCS environments. This enables plant-level energy dashboards to receive granular power quality data — voltage, current, frequency, power factor — directly from the relay, supporting demand response programs and peak shaving strategies. When combined with GE’s PQM II Power Quality Meter, the UR5EH-based system provides a complete picture of energy flow from the feeder to the load, enabling targeted efficiency improvements at the equipment level.

Maintenance and Replacement Notes

In continuous process industries — including petrochemical plants, water treatment facilities, and heavy manufacturing — unplanned electrical faults are among the leading causes of production downtime and unplanned downtime. A single feeder trip can cascade into hours of lost production, with restart energy surges adding further cost. The GE UR5EH CPU Board addresses this challenge by enabling adaptive protection schemes that respond to actual system conditions rather than fixed thresholds.

By implementing thermal overload curves calibrated to the specific motor and cable characteristics of each production line, the UR5EH prevents nuisance tripping while still protecting equipment from genuine overload conditions. This precision reduces the frequency of unnecessary shutdowns, directly improving equipment utilization rates and reducing the energy consumed in repeated motor start cycles — which can draw 6–8 times rated current and place significant stress on both the motor and the upstream power infrastructure.

The UR5EH also supports predictive maintenance workflows. By continuously monitoring parameters such as thermal capacity used, number of starts, and running hours, the relay provides maintenance teams with actionable data to schedule interventions before failures occur. This shifts maintenance from a reactive, energy-intensive model to a planned, efficient one — reducing both labor costs and the unplanned downtime associated with emergency repairs and unscheduled restarts.

For production lines with variable load profiles — such as those using variable frequency drives (VFDs) for pump and fan control — the UR5EH’s power factor monitoring capability helps identify periods of poor power factor that increase reactive power demand and utility penalties. By flagging these conditions in real time, the relay enables operators to activate power factor correction equipment at the right moment, optimizing energy costs without manual intervention.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including protection element verification, communication port testing, and firmware validation. Each GE UR5EH is backed by a warranty terms confirmed during quotation, ensuring that your production line investment is protected from day one. With availability subject to RFQ confirmation for shipment arranged after confirmation, lead times are minimized — reducing the risk of extended downtime while awaiting replacement parts.

Product Sourcing FAQ

Q1: How does the GE UR5EH contribute to operational stability in an industrial facility?
The UR5EH reduces unplanned downtime by enabling precise, adaptive protection that minimizes nuisance tripping and unplanned shutdowns. Fewer shutdowns mean fewer high-energy motor restarts, lower reactive power surges, and improved overall equipment utilization. Its real-time power monitoring also provides the data needed to identify and correct inefficiencies in feeder and motor circuits.

Q2: Is the UR5EH compatible with existing GE UR Series relay chassis?
Yes. The UR5EH is designed for the GE UR Series universal relay platform and is compatible with a wide range of UR chassis configurations, including those used in the C60, D60, F60, G60, L90, M60, and T60 relay families. Always verify the specific firmware version and hardware revision requirements for your application before installation.

Q3: Can the UR5EH be used as a direct replacement for a failed CPU board in an existing installation?
In most cases, yes. The UR5EH is a replacement CPU board for compatible UR Series relay chassis. Configuration settings from the original relay can typically be restored via EnerVista UR Setup software, minimizing reconfiguration time and reducing the duration of the maintenance window. ZYPLC recommends verifying hardware and firmware compatibility with your existing chassis before ordering.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every GE UR5EH supplied by ZYPLC is tested prior to shipment to verify correct operation of all protection elements, communication interfaces, and I/O functions. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides prompt replacement or repair support to minimize impact on your production schedule.
