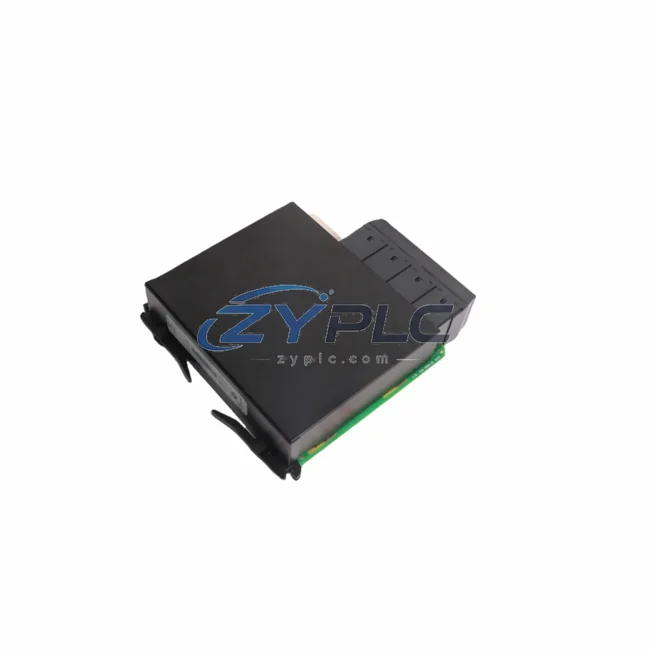

GE UR6DH Digital I/O for UR Series

GE UR6DH Digital I/O for UR Series

In a modern protection and control system, every module must earn its place in the architecture. The GE UR6DH — a high-density Digital I/O Module engineered specifically for the GE UR Series platform — does exactly that. Rather than functioning as a standalone component, the UR6DH is designed from the ground up to integrate seamlessly into the layered control hierarchy that defines reliable substation automation, power distribution management, and industrial protection systems. Whether deployed in a greenfield installation or as a replacement in an existing UR chassis, this module delivers the signal fidelity, architectural consistency, and long-term serviceability that system engineers demand.

Product Specification Table

System Compatibility Notes

The UR6DH does not operate in isolation — it is a functional node within a carefully coordinated protection and control architecture. At the core of this architecture sits the GE UR Series relay CPU module, which handles protection logic, event recording, and communication management. The UR6DH slots directly into the same modular chassis, sharing the internal backplane bus to exchange digital status signals with the CPU in real time, without introducing latency or signal degradation that could compromise protection response times.

On the power layer, the GE UR Series power supply module (typically the 6E or 6F power card) provides regulated DC power to all chassis-mounted modules, including the UR6DH. This centralized power architecture eliminates the need for external power conditioning per module and simplifies cabinet wiring. When redundant power is required — as is standard in critical substation applications — dual power supply slots in the UR chassis allow seamless failover without interrupting I/O operation.

For communication and network integration, the UR6DH relies on the host relay’s IEC 61850 communication module (such as the GE 6C or 6L Ethernet card) to publish GOOSE messages and report digital status changes to upstream SCADA systems or bay-level controllers. This means the UR6DH’s contact states are immediately visible to GE EnerVista UR Setup software, enabling engineers to configure input debounce timing, output seal-in logic, and event logging without leaving the unified engineering environment.

At the field level, the UR6DH interfaces directly with terminal blocks and marshalling panels that aggregate signals from circuit breakers, disconnect switches, transformer tap changers, and auxiliary contacts. In many installations, these are paired with GE UR Series CT/VT input modules (such as the 6A or 6B analog input cards) in adjacent chassis slots, creating a complete signal acquisition layer that feeds both protection algorithms and digital I/O status reporting simultaneously.

In systems requiring inter-relay coordination — such as bus differential or line current differential schemes — the UR6DH works alongside GE L90 Line Differential Relays and GE B90 Bus Differential Relays, where its digital outputs can trigger blocking signals, transfer trip commands, or alarm annunciation across the protection zone. The module’s Form A and Form B relay contacts are rated for the switching currents typical in these inter-panel signaling applications, ensuring reliable operation across the full lifecycle of the installation.

For human-machine interface integration, the digital status signals managed by the UR6DH are surfaced through GE EnerVista Viewpoint Monitoring or third-party HMI platforms via the host relay’s DNP3 or Modbus TCP interface. This allows operators to monitor breaker status, alarm states, and control outputs from a centralized control room display without requiring additional I/O gateways or protocol converters.

Industrial Application Notes

The GE UR6DH finds its most critical applications in environments where the integrity of digital signal exchange directly affects system safety and uptime. In electrical power substations, the module manages the digital I/O requirements of protection relays overseeing transmission lines, power transformers, and bus sections. Its ability to handle both high-voltage AC and low-voltage DC input signals in the same module simplifies panel design and reduces the number of interposing relays required in the marshalling cabinet.

In industrial power distribution systems — such as those found in petrochemical plants, steel mills, and large manufacturing facilities — the UR6DH supports motor protection relays and feeder protection units within the UR Series platform. Here, the module’s digital outputs drive lockout relays, motor contactor coils, and alarm annunciators, while its inputs monitor auxiliary contacts from switchgear, motor control centers, and process interlocks. The result is a tightly integrated protection and control layer that reduces fault clearance time and minimizes production downtime.

In water treatment and pumping stations, where remote and unmanned operation is common, the UR6DH enables the host relay to monitor pump run/stop status, valve position feedback, and level switch states — all through a single chassis-mounted module. Combined with the relay’s IEC 61850 GOOSE messaging capability, these digital states can be shared across the station network to coordinate pump sequencing and load shedding without requiring a separate PLC layer.

For mining and mineral processing applications, where equipment operates under harsh environmental conditions and extended maintenance intervals are the norm, the UR6DH’s wide operating temperature range and robust contact ratings make it a reliable choice for conveyor protection systems, crusher motor protection, and high-voltage feeder control. Its modular design means that a failed module can be replaced in the field without disturbing adjacent chassis slots or requiring relay reconfiguration, minimizing maintenance downtime in remote locations.

Product Compatibility FAQ

Q1: Is the GE UR6DH compatible with all UR Series relay platforms?
The UR6DH is designed for the GE Universal Relay (UR) Series modular chassis and is compatible with platforms including the D60 Distance Relay, T60 Transformer Protection Relay, L90 Line Differential Relay, C60 Breaker Protection Relay, F60 Feeder Protection Relay, and B90 Bus Differential Relay. Compatibility depends on the chassis slot configuration and firmware version of the host relay. We recommend verifying the chassis order code and firmware revision before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: How does the UR6DH integrate into an IEC 61850 substation automation architecture?
The UR6DH itself does not have an independent Ethernet port — it communicates via the UR chassis internal backplane to the host relay’s CPU and communication modules. The host relay then publishes the UR6DH’s digital I/O states as IEC 61850 Logical Nodes (GGIO) over GOOSE or MMS to the station bus. This means the UR6DH achieves full system integration within an IEC 61850 architecture through the host relay, without requiring separate configuration or IP addressing for the I/O module itself.

Q3: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every GE UR6DH unit supplied by ZYPLC undergoes functional testing prior to shipment, including digital input threshold verification, output contact continuity and switching tests, and backplane communication checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Units that fail during the warranty period are replaced or repaired at no additional cost. Detailed test reports are available upon request for quality-critical procurement processes.
