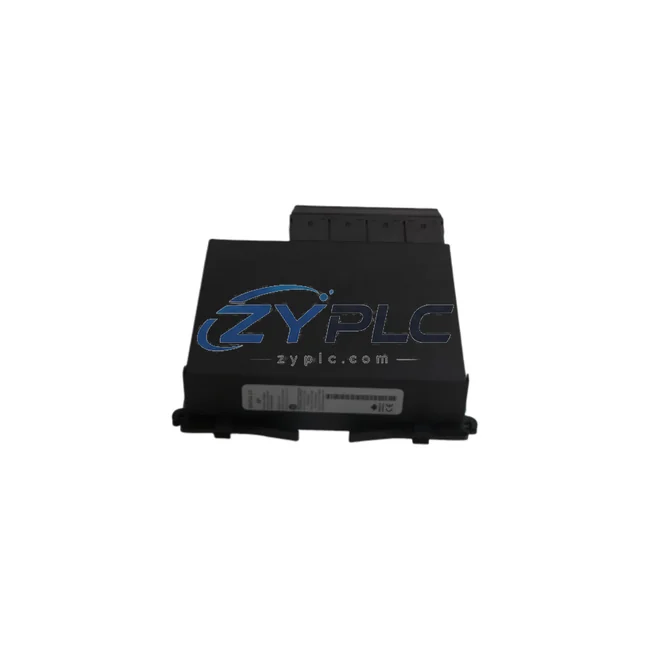

GE UR6PH Digital I/O Module UR Series

GE UR6PH Digital I/O Module for UR Series Automation

The GE UR6PH is a high-efficiency Digital I/O Module engineered for the GE UR Series protection relay and automation platform. Designed for demanding industrial environments, the UR6PH plays a critical role in reducing unplanned downtime risk across power distribution, motor control, and process automation systems. By delivering precise, real-time digital signal acquisition and output control, this module enables plant engineers to eliminate idle-state energy draw, sharpen equipment utilization rates, and maintain tighter production line rhythms — all without adding complexity to the control architecture.

Product Specification Table

System Compatibility and Application

In a modern industrial maintenance planning architecture, the GE UR6PH Digital I/O Module sits at the intersection of signal acquisition and control execution. It interfaces directly with the GE UR Series protection relay chassis — such as the GE UR F35 (Multi-Loop Controller) and the GE UR T35 (Transformer Protection Relay) — to provide the discrete input/output channels needed for real-time equipment state monitoring and automated switching decisions.

When integrated with a GE UR D60 (Line Distance Relay) or a GE UR L90 (Line Differential Relay), the UR6PH enables coordinated protection schemes that reduce unnecessary trip events — a leading cause of unplanned downtime and associated energy restart costs. Each avoided nuisance trip translates directly into preserved motor run-up energy and reduced mechanical stress on connected drives.

On the drive side, the UR6PH digital outputs can interface with GE AF-650 GP variable frequency drives or compatible third-party VFDs to issue start/stop and speed-reference commands based on protection relay logic. This closed-loop interaction between the I/O module, the relay, and the drive system allows the plant to implement demand-responsive motor control — ramping down drive output during low-load periods rather than running motors at fixed speed continuously.

For condition monitoring, the UR6PH works alongside GE UR M60 (Motor Protection Relay) and GE EPM 9450 power quality meters to feed discrete status signals — breaker open/close, contactor state, fault flags — into the energy data acquisition layer. This gives the SCADA or maintenance planning system a complete picture of equipment state, enabling accurate calculation of actual versus theoretical operating load per production cycle.

Communication integration is handled through the UR Series backplane, which supports IEC 61850 GOOSE messaging, DNP3, and Modbus TCP/IP protocols. The UR6PH’s I/O states are therefore available in real time to GE iFIX SCADA or any IEC 61850-compliant maintenance planning platform, enabling supervisory-level maintenance planning decisions without additional hardware gateways.

For facilities running GE PACSystems RX3i PLCs, the UR6PH can be coordinated through hardwired interlocks or network-based status exchange, allowing the PLC program to incorporate protection relay I/O states into production scheduling logic — for example, deferring high-inrush motor starts during peak demand windows identified by the power meter.

Maintenance and Replacement Notes

In a typical medium-voltage motor control application, the GE UR6PH provides the digital I/O backbone that makes maintenance-focused automation practical rather than theoretical. Consider a cement plant’s raw mill drive system: the UR6PH monitors breaker status, motor running feedback, and thermal overload signals in real time. When the protection relay detects a sustained light-load condition — motor running at less than 30% of rated current for more than a configurable time window — the UR6PH output triggers a drive speed reduction command to the connected VFD, cutting operating load proportionally to the cube of speed reduction.

In a water treatment facility, the same module monitors pump station breaker states and feeds discrete signals to the plant’s maintenance planning system. Operators can see exactly which pumps are running, which are on standby, and which have tripped — without polling each device individually. This reduces SCADA scan overhead and allows the control system to implement optimized pump sequencing that minimizes total kWh consumed per cubic meter of water processed.

Maintenance teams benefit equally. Because the UR6PH captures and timestamps every discrete state change — breaker operations, relay pickups, output activations — maintenance engineers can trend equipment switching frequency as a leading indicator of contact wear or insulation degradation. Catching these trends early reduces unplanned outages, which are typically 3–5× more energy-intensive to recover from than planned maintenance windows due to emergency restart procedures and production catch-up cycles.

Every unit shipped undergoes full functional testing prior to dispatch. Stock is maintained for immediate availability, and all GE UR6PH modules are covered by a warranty terms confirmed during quotation from the date of shipment — giving procurement and maintenance teams confidence in both delivery timelines and long-term reliability.

Product Sourcing FAQ

Q1: How does the GE UR6PH contribute to measurable operational stability on the production line?
The UR6PH provides the discrete I/O channels that allow the UR Series protection relay to communicate real-time equipment states to drives, PLCs, and maintenance planning systems. By enabling demand-responsive control — such as VFD speed reduction during light-load periods and optimized motor start sequencing — the module helps reduce total operating load without requiring changes to the core production process.

Q2: Is the UR6PH compatible with existing GE UR Series relay chassis and third-party automation systems?
Yes. The UR6PH is designed for the GE UR Series modular chassis and is compatible with UR, URplus, and related platform variants. Its hardwired I/O outputs can interface with any automation system — including third-party PLCs, VFDs, and SCADA platforms — that accepts standard discrete 24 VDC or 125 VDC signals.

Q3: Can the UR6PH replace an existing I/O module in a live system, and what is the recommended changeover procedure?
The UR6PH is a direct replacement for compatible GE UR Series I/O slots. The recommended procedure involves de-energizing the relay chassis, documenting existing wiring terminations, swapping the module, and performing a functional I/O test before returning the relay to service. Our technical team can provide configuration guidance to ensure zero-disruption changeover.

Q4: What does the warranty terms confirmed during quotation cover, and how is the testing process conducted before shipment?
Every GE UR6PH module is tested for digital input response, output switching integrity, and communication backplane connectivity before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on production continuity.
