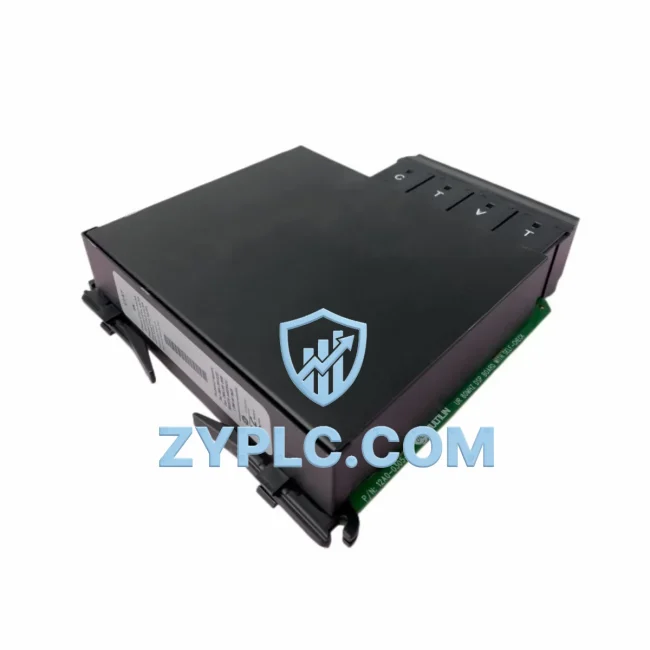

GE UR8NH CT/VT Input Module for Multilin Series Systems

GE UR8NH CT/VT Input Module: Industrial Data Link for Smart Factory Protection Networks

The GE UR8NH CT/VT Input Module is a precision-engineered signal acquisition component designed for the GE Multilin Universal Relay (UR) Series platform. As a dedicated current transformer (CT) and voltage transformer (VT) input interface, the UR8NH serves as the critical front-end data acquisition node in modern industrial protection and automation networks — converting analog field signals into high-integrity digital data streams that feed directly into protection logic, SCADA systems, and enterprise-level energy management platforms.

In today’s smart factory and substation automation environments, the integrity of the data chain begins at the point of signal acquisition. The UR8NH ensures that CT and VT measurements from switchgear, transformers, feeders, and motor circuits are captured with precision, conditioned for noise immunity, and delivered to the UR Series relay processor with minimal latency. This makes it an indispensable component in any industrial site where real-time protection, accurate metering, and reliable fault detection are non-negotiable.

Compatibility & Integration Notes

Connected Automation Data Flow

The UR8NH sits at the origin of the industrial data chain. In a typical substation or plant protection architecture, field-level current and voltage signals from instrument transformers are wired directly into the UR8NH module, which is installed in the GE Multilin UR Series relay chassis — such as the GE Multilin 750/760 Feeder Protection Relay or the GE Multilin 469 Motor Management Relay. The UR8NH digitizes these analog inputs and passes them to the relay’s main processing board, where protection algorithms execute in real time.

Once the relay has processed the data, it communicates upstream via the relay’s communication module — typically a GE Multilin UR Series Communications Module (e.g., 9G-UR-COMM-E) — using IEC 61850 GOOSE messaging or DNP3 over Ethernet to transmit status, measurements, and event records to the substation automation layer. At this layer, a GE Grid Solutions MiCOM C264 Substation Controller or a third-party RTU aggregates data from multiple IEDs and relays before forwarding it to the SCADA master station.

For sites running GE OpticaPlus SCADA or GE iFIX HMI/SCADA, the UR8NH-sourced data appears as live analog values, protection element states, and fault records — enabling operators to monitor feeder loading, transformer differential currents, and motor start currents from a centralized control room. In distributed architectures, an industrial Ethernet switch (such as a Hirschmann RS20 or Moxa EDS-308) provides the Layer 2 network backbone that connects the relay, RTU, and SCADA server within the substation LAN.

For remote sites or unmanned substations, the data path extends further: a cellular or fiber-based industrial gateway (e.g., Moxa MGate MB3180 Modbus Gateway or a GE MDS SD9 Industrial Radio) bridges the substation LAN to the enterprise WAN, enabling remote diagnostics, alarm forwarding, and firmware management without requiring on-site personnel. This end-to-end connectivity — from the UR8NH CT/VT input to the enterprise SCADA dashboard — is the backbone of modern substation automation and smart grid operations.

In motor control center (MCC) applications, the UR8NH-equipped relay works alongside GE Multilin 239 Motor Protection Relay units and GE Multilin SR750 Feeder Relays, sharing protection coordination data across the plant network. Remote I/O modules and GE PACSystems RX3i PLCs may also participate in the same Modbus TCP or IEC 61850 network segment, enabling integrated protection-automation workflows where a single fault event can trigger both relay tripping and PLC-based process shutdown sequences.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging industrial facilities is protocol fragmentation and data isolation. Older protection relays may communicate only via Modbus RTU over RS-485, while newer IEDs support IEC 61850 over Ethernet. Without a unified data acquisition strategy, critical protection data remains siloed — invisible to SCADA operators and inaccessible for predictive maintenance analytics.

The GE UR8NH, as part of the Multilin UR platform, directly addresses this challenge. By providing a standardized, high-accuracy CT/VT input interface within a relay platform that natively supports multiple communication protocols — including IEC 61850, DNP3, Modbus TCP, and IEC 60870-5-104 — the UR8NH enables seamless integration of protection data into both legacy SCADA systems and modern cloud-based energy management platforms. Sites that previously relied on manual meter reading or isolated relay panels can now achieve full production line transparency, with every feeder current, transformer voltage, and motor load visible in real time on the SCADA dashboard.

For system expansion, the modular architecture of the UR Series chassis means that additional UR8NH modules can be added as new feeders or circuits are commissioned — without replacing the relay or reconfiguring the communication network. This scalability is critical for industrial sites undergoing phased electrification upgrades or renewable energy integration projects, where new generation sources and distribution circuits must be brought online incrementally.

Remote diagnostics capabilities further reduce operational costs: maintenance engineers can retrieve fault records, oscillography data, and relay settings remotely via the IEC 61850 MMS interface or the relay’s built-in web server, eliminating the need for costly site visits for routine diagnostics. Combined with the 12-month warranty and pre-shipment functional testing, the UR8NH delivers a low total cost of ownership for industrial protection and automation applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE UR8NH support for SCADA integration?
The UR8NH is part of the GE Multilin UR Series relay platform, which supports IEC 61850 (GOOSE and MMS), DNP3 over serial and Ethernet, Modbus RTU/TCP, and IEC 60870-5-104. This multi-protocol capability ensures compatibility with virtually all major SCADA and EMS platforms, including legacy systems running Modbus and modern IEC 61850-compliant substation automation systems.

Q2: How does the UR8NH ensure network stability and data integrity in high-noise industrial environments?
The UR8NH is designed to operate within the electrically harsh environment of switchgear rooms and substations. The module provides galvanic isolation between field CT/VT circuits and the relay’s digital processing core, suppressing common-mode noise and transient interference. The UR Series relay platform also supports redundant Ethernet communication ports, ensuring continuous SCADA connectivity even in the event of a single network path failure.

Q3: Can the UR8NH be integrated into an existing protection system without replacing the entire relay?
Yes. The UR8NH is a modular plug-in card designed for the GE Multilin UR Series chassis. It can be installed or replaced in the field without replacing the relay chassis or communication modules, provided the chassis has an available slot. This modularity significantly reduces upgrade costs and minimizes system downtime during maintenance or expansion activities.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?
All UR8NH units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm signal input accuracy, communication interface integrity, and compatibility with the UR Series relay platform. Units are shipped with test documentation upon request. For warranty claims or technical support, contact our team directly.

—
