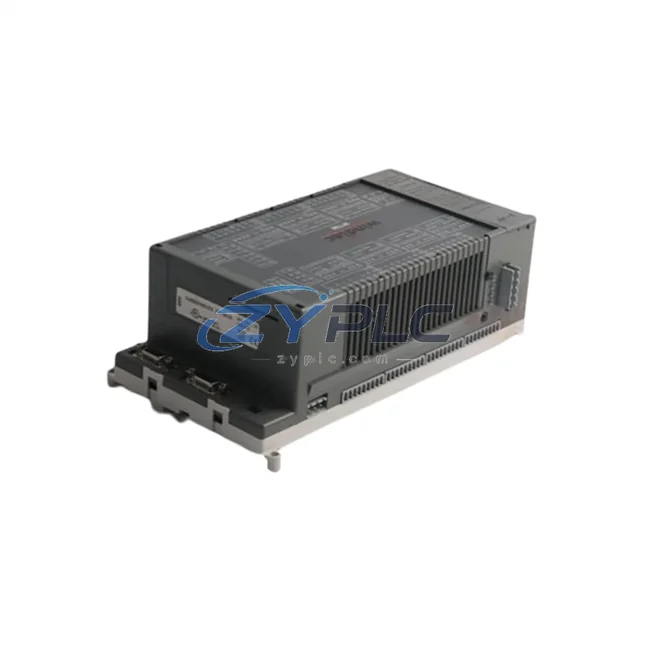

GE VCIB-16A AC Servo Vector Drive for Vectrive

GE VCIB-16A AC Servo Vector Drive: Control System and Coordinated Automation Design

The GE VCIB-16A is a high-performance AC servo vector drive engineered for seamless integration within the GE Vectrive motion control architecture. Rather than functioning as a standalone component, the VCIB-16A is designed to operate as a coordinated node within a layered industrial automation system — interfacing with programmable logic controllers, distributed I/O modules, communication gateways, human-machine interfaces, and power distribution assemblies to deliver consistent, scalable, and maintainable drive performance across demanding industrial environments.

In modern industrial control architectures, the servo drive layer sits between the controller layer and the execution layer. The VCIB-16A occupies this critical position, receiving velocity and torque commands from upstream GE Series 90 PLCs or GE PACSystems RX3i controllers, translating those commands into precise motor excitation signals, and feeding back encoder data to close the position loop. This bidirectional signal flow ensures that the control system maintains real-time awareness of motor state, enabling dynamic load compensation, fault detection, and coordinated multi-axis synchronization.

Product Specification Table

System Compatibility Notes

The VCIB-16A achieves its full performance potential when deployed within a coordinated GE Vectrive system architecture. At the controller layer, a GE PACSystems RX3i CPU module or a GE Series 90-30 PLC provides the motion sequencing logic, issuing velocity references and enable signals to the drive via analog command channels or a serial motion bus. The controller’s I/O backplane — populated with GE IC693MDL series discrete I/O modules and IC693ALG analog input modules — aggregates field sensor data and feeds it upstream to the CPU for closed-loop process control decisions.

At the network layer, a GE IC693CMM311 communications module or equivalent Ethernet gateway bridges the PLC backplane to plant-level SCADA systems, enabling remote monitoring of drive status, fault codes, and production counters. For installations requiring deterministic fieldbus communication, a Profibus DP or DeviceNet adapter module can be inserted between the controller and the VCIB-16A, ensuring synchronized command delivery across multi-axis servo systems.

The power layer feeding the VCIB-16A typically includes a dedicated servo transformer or line reactor to attenuate harmonic distortion, followed by a GE or compatible 24VDC power supply module for control circuit logic. In redundant architectures, a secondary power feed with automatic transfer switching ensures that a single power supply failure does not interrupt drive operation. Surge protection devices and EMC filters installed at the cabinet entry point further protect the VCIB-16A’s sensitive input rectifier stage from line transients.

At the human-machine interface layer, a GE QuickPanel+ operator terminal or equivalent HMI provides the operator with real-time visibility into drive speed, torque output, fault history, and parameter settings. Alarm management screens linked to the PLC’s fault register allow maintenance personnel to diagnose drive faults without requiring a laptop or handheld programmer. This integration between the HMI, PLC, and VCIB-16A drive creates a unified diagnostic environment that significantly reduces mean time to repair.

Terminal modules and marshalling panels — such as GE IC693ACC300 series terminal blocks — provide the physical wiring interface between the VCIB-16A’s control terminals and field devices including proximity sensors, limit switches, and motor thermal contacts. Proper terminal organization ensures that signal integrity is maintained across long cable runs and that future maintenance technicians can trace wiring without ambiguity. In multi-drive cabinets, a common DC bus arrangement or shared braking resistor assembly may be employed to recover regenerative energy from decelerating axes, improving overall system energy efficiency.

Industrial Application Notes

The GE VCIB-16A is deployed across a broad range of industrial sectors where precise motion control and system-level integration are essential. In discrete manufacturing environments — including automotive assembly lines, electronics production, and precision machining centers — the VCIB-16A drives servo axes responsible for part positioning, tool actuation, and conveyor indexing. Its closed-loop vector control algorithm maintains accurate speed regulation under variable load conditions, ensuring consistent cycle times and dimensional accuracy.

In the power generation and utilities sector, the VCIB-16A supports valve actuator drives, cooling fan speed control, and auxiliary equipment positioning within turbine control systems. Its compatibility with GE PACSystems controllers allows it to be integrated into existing plant DCS architectures without requiring a separate motion controller, reducing system complexity and licensing costs.

Petrochemical and refinery applications benefit from the VCIB-16A’s ability to operate reliably in thermally challenging environments when installed within properly rated control enclosures. Pump and compressor drive applications leverage the drive’s torque control mode to maintain constant process pressure regardless of fluid viscosity variations. In water treatment facilities, the VCIB-16A controls aeration blower drives and sludge pump motors, with the PLC managing process setpoints based on dissolved oxygen sensor feedback.

Mining and mineral processing operations deploy the VCIB-16A in conveyor drive systems, crusher feed control, and flotation cell agitator drives. The drive’s robust overcurrent protection and fault logging capabilities are particularly valuable in these environments, where unplanned downtime carries significant production cost penalties. Metallurgical processing lines — including rolling mills and continuous casting machines — use the VCIB-16A in tension control and speed synchronization applications, where multiple drives must operate in coordinated master-follower configurations managed by the upstream PLC.

Packaging machinery and food processing lines rely on the VCIB-16A for high-cycle servo positioning tasks such as form-fill-seal machine jaw drives, labeling head positioning, and robotic pick-and-place axis control. The drive’s fast current loop response enables the tight position repeatability required for high-speed packaging applications, while its compact panel-mount form factor simplifies integration into space-constrained machine control cabinets.

Product Compatibility FAQ

Q1: Is the GE VCIB-16A compatible with GE PACSystems RX3i and Series 90-30 PLC platforms for coordinated motion control?
A1: Yes. The VCIB-16A is designed for use within GE Vectrive motion system architectures, which are compatible with GE PACSystems RX3i and Series 90-30 controller platforms. Analog velocity command interfaces (±10V) and serial communication channels allow the drive to receive motion commands directly from the PLC’s motion output modules. For multi-axis applications, the PLC’s motion function blocks coordinate command sequencing across multiple VCIB drives, ensuring synchronized axis operation. ZYPLC’s technical team can assist with parameter configuration and system commissioning support.

Q2: What fieldbus communication options are available for integrating the VCIB-16A into a plant-wide SCADA or DCS network?
A2: The VCIB-16A supports serial RS-232/RS-485 communication natively, enabling parameter read/write and status monitoring via the GE drive communication protocol. For integration into Profibus DP, DeviceNet, or Ethernet/IP networks, an external communication gateway or adapter module is required. GE and third-party gateway modules are available that translate the drive’s serial interface to standard industrial fieldbus protocols, allowing the VCIB-16A to appear as a standard drive node on the plant network. ZYPLC supports RFQ sourcing for compatible gateway modules and can advise on the appropriate interface solution for your specific network architecture.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
A3: All GE VCIB-16A units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failures under normal operating conditions. The warranty covers repair or replacement of defective units at no additional cost. ZYPLC maintains a dedicated inventory of GE Vectrive series drives and associated components — including GE IC693 series I/O modules, power supply modules, and communication adapters — to support long-term spare parts requirements. For critical production environments, ZYPLC recommends maintaining a minimum of one spare VCIB-16A unit on-site to minimize downtime risk. Our technical support team is available to assist with fault diagnosis, parameter backup, and replacement unit commissioning throughout the warranty period and beyond.
