Gefran GFX4-IR-80-0-2-0-0 Power Controller

Gefran GFX4-IR-80-0-2-0-0 Power Controller for GFX Series Automation

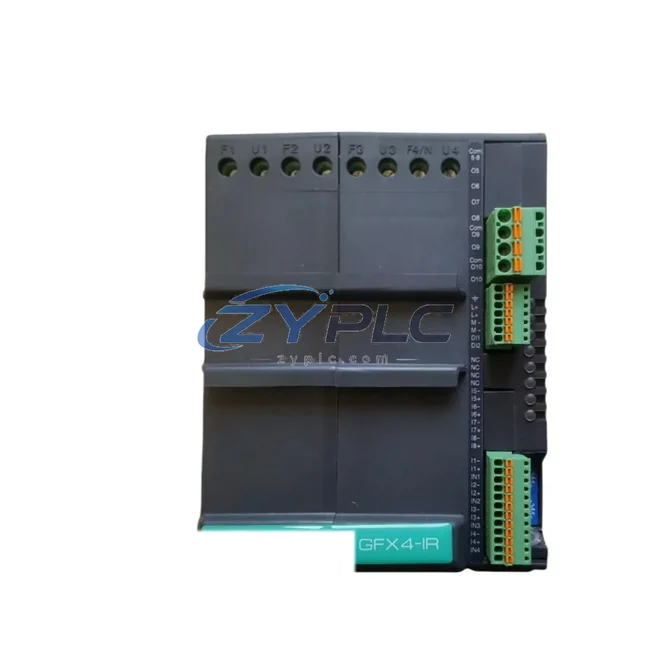

The Gefran GFX4-IR-80-0-2-0-0 is a high-performance, modular thyristor power controller from Gefran’s industry-proven GFX Series, engineered specifically for industrial environments where energy efficiency, precise thermal process control, and production line optimization are mission-critical. Rated at 80A with integrated infrared (IR) firing logic, this unit delivers consistent, low-harmonic power regulation across resistive and transformer-coupled loads — making it an essential component in any industrial automation system.

In modern manufacturing, uncontrolled power delivery to heating elements, furnaces, and process reactors is one of the leading causes of unplanned downtime and unplanned downtime. The GFX4-IR-80-0-2-0-0 addresses this directly through phase-angle and zero-crossing firing modes, enabling the control system to match actual thermal demand rather than delivering fixed full-power cycles. The result is measurable reduction in peak energy draw, lower thermal stress on heating elements, and extended equipment service life — all of which translate directly into lower operating costs and improved OEE (Overall Equipment Effectiveness).

Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch, and is backed by a warranty terms confirmed during quotation, ensuring your production line investment is protected from day one.

Product Specification Table

System Compatibility and Application

The GFX4-IR-80-0-2-0-0 does not operate in isolation — its true value is realized when integrated into a layered industrial automation architecture where every component contributes to system-wide energy accountability.

At the control layer, the GFX4-IR-80-0-2-0-0 receives setpoint signals from upstream PLCs such as the Gefran 1600V programmable controller or third-party Siemens S7-1200 series PLCs via analog 4–20mA or 0–10V references. These controllers manage production recipes and thermal profiles, ensuring the power controller only delivers energy when the process actually demands it — eliminating idle-state over-heating that wastes operating-hours across multi-shift operations.

For drive-level maintenance planning on motor-driven auxiliary systems (cooling fans, conveyor feeds, material handling), the GFX4-IR-80-0-2-0-0 is commonly deployed alongside Gefran ADV200 series AC drives and Gefran SIEI AVy series variable frequency drives. These VFDs regulate motor speed in proportion to actual load demand, and when combined with the GFX thyristor controller on the heating side, the entire process cell operates at optimized operating load — both thermal and mechanical.

Power quality and condition monitoring are handled upstream by dedicated power analyzers such as the Gefran 1000 series multi-function power meter or compatible third-party DIN-rail energy meters with Modbus RTU output. These devices feed real-time kWh, power factor, and harmonic data back to the SCADA or HMI layer — typically a Gefran Touch HMI panel or Weintek cMT series display — giving operators full visibility into operating load per production zone.

At the I/O and signal conditioning layer, Gefran GS Series signal conditioners and Gefran TFM series temperature transmitters ensure that thermocouple and RTD inputs are accurately linearized before being passed to the PID control loop. Accurate temperature feedback is the foundation of efficient thyristor firing — a 2°C measurement error can result in sustained over-firing that accumulates into significant unplanned downtime over a production shift.

For installations requiring fieldbus integration, the GFX4-IR-80-0-2-0-0 supports optional RS485 Modbus RTU communication, enabling seamless data exchange with Gefran GFX-COM communication modules and integration into broader PROFIBUS or EtherNet/IP networks via protocol gateways. This connectivity allows maintenance planning systems to log firing angle data, load current, and fault states — critical inputs for predictive maintenance algorithms that prevent unplanned downtime.

The modular design of the GFX Series also means that the GFX4-IR-80-0-2-0-0 can be paralleled with additional GFX thyristor modules for higher-current applications, or combined with Gefran GFX4-SSR solid-state relay modules for hybrid switching architectures that balance switching speed with thermal dissipation requirements.

Maintenance and Replacement Notes

In a typical plastic extrusion line, barrel heating zones consume the majority of process energy. Without precise thyristor control, heating elements cycle at full power and rely on mechanical thermostats for cutoff — a method that causes temperature overshoot, element fatigue, and unnecessary energy draw during steady-state production. The GFX4-IR-80-0-2-0-0 replaces this approach with continuous proportional power delivery: the firing angle is modulated in real time based on PID feedback from the temperature controller, so the heating element receives exactly the energy needed to maintain setpoint — no more, no less.

In ceramic kiln and glass annealing applications, where thermal profiles span hours and temperature uniformity directly affects product yield, the GFX4-IR-80-0-2-0-0’s zero-crossing firing mode eliminates radio-frequency interference and reduces harmonic injection into the plant power grid. This is particularly important in facilities where sensitive measurement equipment or servo drives share the same electrical distribution panel — harmonic distortion from uncontrolled SCR firing can degrade encoder signals and cause nuisance faults in servo amplifiers.

From a maintenance perspective, the GFX4-IR-80-0-2-0-0’s built-in load diagnostics — including open-load detection, shorted thyristor alarm, and over-temperature protection — provide early warning signals that maintenance teams can act on before a failure causes production stoppage. When integrated with a SCADA system via Modbus, these fault codes can trigger automated work orders in CMMS platforms, closing the loop between real-time equipment health and planned maintenance schedules.

ZYPLC maintains ready stock of the GFX4-IR-80-0-2-0-0 and related GFX Series components, with pre-shipment functional testing on every unit. Lead times are minimized to support urgent MRO (Maintenance, Repair & Operations) requirements, and the warranty terms confirmed during quotation covers both component defects and functional performance — giving procurement and engineering teams confidence in every purchase.

Product Sourcing FAQ

Q1: How much energy can the GFX4-IR-80-0-2-0-0 save compared to on/off relay control?
In proportional phase-angle mode, the GFX4-IR-80-0-2-0-0 typically reduces operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters. Savings vary by process type, setpoint stability, and load characteristics, but the elimination of overshoot cycles and reduction in peak demand are consistent benefits across most industrial heating applications.

Q2: Is the GFX4-IR-80-0-2-0-0 compatible with my existing PLC and temperature controller?
Yes. The unit accepts standard analog inputs (0–10V and 4–20mA) compatible with virtually all industrial PLCs and temperature controllers, including Siemens, Omron, Mitsubishi, and Gefran’s own 1600V and 650V series. For digital integration, the optional RS485 Modbus RTU interface enables direct communication with SCADA systems and maintenance planning platforms.

Q3: What is the recommended replacement or upgrade path for aging thyristor controllers?
The GFX4-IR-80-0-2-0-0 is a direct functional replacement for many legacy 80A single-phase thyristor units. ZYPLC’s technical team can assist with cross-referencing older Gefran GFX3 or third-party SCR controllers to confirm dimensional, electrical, and signal compatibility before shipment — reducing installation risk and commissioning time.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every GFX4-IR-80-0-2-0-0 unit supplied by ZYPLC is tested under load conditions prior to dispatch to verify thyristor firing integrity, analog input response, and protection circuit functionality. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC’s support team, with replacement units dispatched from stock to minimize production downtime.
