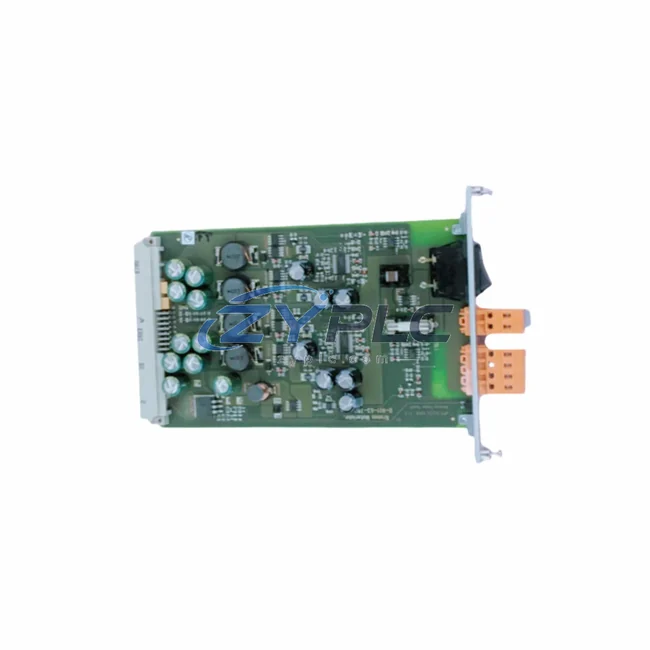

German Power CPCI106-3512 DC/DC Converter

German Power CPCI106-3512 DC/DC Converter for CompactPCI Automation

The German Power CPCI106-3512 is a high-efficiency DC/DC converter module engineered for CompactPCI (CPCI) industrial automation platforms. Designed to deliver stable, regulated 12V and 5V outputs from a 24V DC bus, this module plays a critical role in reducing unnecessary power dissipation across control cabinet infrastructure. In environments where energy costs and uptime are both mission-critical, the CPCI106-3512 provides the power conversion backbone that keeps drives, controllers, and I/O systems running at peak efficiency without thermal waste.

Industrial facilities operating continuous production lines cannot afford power instability. The CPCI106-3512 addresses this by maintaining tight output voltage regulation even under dynamic load conditions — a key requirement when paired with high-cycle servo drives, variable frequency drives (VFDs), and distributed I/O modules. Its compact CompactPCI form factor integrates directly into 3U or 6U CPCI backplane systems, eliminating the need for external power conditioning units and reducing overall panel footprint.

Product Specification Table

System Compatibility and Application

The CPCI106-3512 does not operate in isolation — it is the power foundation upon which an entire industrial automation system is built. In a typical CompactPCI-based control system, the module supplies regulated power to a range of co-located components including the German Power CPCI106-3300 3.3V rail module and the CPCI106-5000 5V logic supply, both of which feed the digital I/O and communication backplane layers.

At the drive level, the CPCI106-3512 supports control boards that interface with Siemens SINAMICS G120 variable frequency drives via PROFIBUS or PROFINET, enabling closed-loop motor speed regulation that directly reduces energy consumption during partial-load operation. When a production line runs at 60% capacity, the VFD adjusts motor speed accordingly — and the CPCI106-3512 ensures the control logic powering that decision remains stable and noise-free.

For motion control applications, the module provides the clean DC rail required by Beckhoff EL7201 servo drive terminals and Lenze i550 servo inverters, both of which demand low-ripple power to maintain encoder feedback accuracy. Any voltage instability at the power supply level translates directly into positioning errors and increased cycle times — losses that compound across thousands of daily machine cycles.

On the monitoring side, the CPCI106-3512 integrates into systems using Janitza UMG 96RM-E power quality analyzers and Siemens SENTRON PAC3200 energy meters, which track real-time kWh consumption per machine cell. These instruments feed data back to the SCADA layer, where energy KPIs are benchmarked against production output — enabling plant engineers to identify inefficient operating windows and schedule predictive maintenance before failures occur.

Communication integrity is maintained through Moxa NPort 5150 serial device servers and Phoenix Contact FL SWITCH 2008 managed Ethernet switches, both of which rely on the stable 5V and 12V rails delivered by the CPCI106-3512. In high-EMI environments such as welding cells or large motor rooms, the module’s built-in filtering ensures that communication packets are not corrupted by switching noise — a common cause of false alarms and unplanned line stops.

Maintenance and Replacement Notes

In automotive body-in-white assembly lines, the CPCI106-3512 has been deployed in robot controller cabinets where 24V bus power must be converted to multiple logic rails without introducing ground loops or voltage sag during robot acceleration peaks. By maintaining output stability within ±1% across the full load range, the module prevents the micro-interruptions that cause PLC watchdog resets — each of which can cost several minutes of line downtime.

In food and beverage packaging facilities, where wash-down environments demand sealed enclosures, the CPCI106-3512’s wide operating temperature range and high MTBF rating reduce the frequency of scheduled power supply replacements. Maintenance teams report that replacing aging linear power supplies with the CPCI106-3512 reduces cabinet heat output by up to 15%, directly lowering the duty cycle of enclosure cooling fans and extending their service life.

For pharmaceutical batch processing systems, where validation requirements demand traceable component histories, the CPCI106-3512’s consistent part number and German manufacturing origin simplify IQ/OQ documentation. Its warranty terms confirmed during quotation and pre-shipment functional testing ensure that replacement units arrive ready for immediate installation without additional incoming inspection delays.

Operational stability are also realized at the system level. When the CPCI106-3512 replaces a lower-efficiency legacy converter operating at 78% efficiency, the difference in heat generated per kilowatt of load reduces the air conditioning load in the control room — a compounding benefit that accumulates over thousands of operating hours annually.

Product Sourcing FAQ

Q1: What operational stability can I expect by deploying the CPCI106-3512 in place of a legacy DC/DC converter?
A: Compared to conventional linear regulators or older switching converters operating below 80% efficiency, the CPCI106-3512’s up to 92% conversion efficiency reduces wasted heat energy by up to 60% per unit. In a cabinet with 10 converter modules, this translates to measurable reductions in cooling load and annual electricity cost.

Q2: Is the CPCI106-3512 compatible with both 3U and 6U CompactPCI backplanes?
A: Yes. The CPCI106-3512 is designed to the CompactPCI specification and is compatible with standard 3U and 6U CPCI backplanes from major manufacturers. It interfaces via the J1 connector and supports hot-swap capable systems when used with appropriate backplane controllers.

Q3: What is the recommended replacement or upgrade path for aging CPCI power modules?
A: For systems currently using first-generation CPCI power modules with efficiency ratings below 85%, the CPCI106-3512 is a direct form-factor replacement in most CPCI106 series chassis. No backplane modification is required. It is recommended to verify output voltage rail requirements against your specific CPU and I/O card specifications before installation.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
A: Every CPCI106-3512 unit shipped by ZYPLC undergoes functional load testing across all output rails prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and output performance deviations under normal operating conditions. Units are shipped with a test report upon request, supporting incoming inspection and validation documentation requirements.
