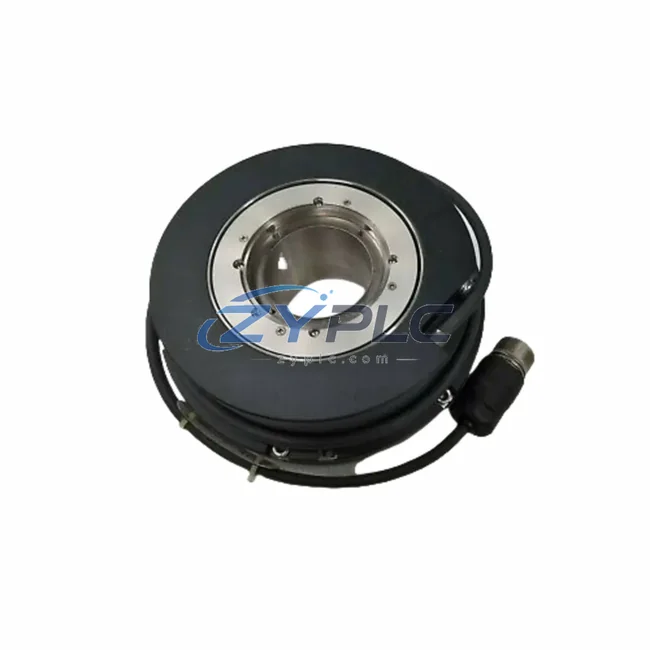

Heidenhain 785C.0003-18000 EnDat Communication Gateway for Linear Scale Systems

Heidenhain 785C.0003-18000 EnDat Communication Gateway: Precision Industrial Data Link for Smart Factory Linear Scale Systems

The Heidenhain 785C.0003-18000 (Part No. 311262-01) is a high-performance EnDat communication gateway engineered to bridge precision linear scale encoders with modern industrial control architectures. Designed for demanding CNC machining centers, servo drive systems, and smart factory automation environments, this gateway delivers deterministic, high-speed serial data transmission between Heidenhain linear encoders and upstream controllers, SCADA platforms, and edge computing nodes. With native EnDat 2.2 protocol support, the 785C.0003-18000 ensures absolute position data is transmitted with sub-microsecond latency, enabling real-time closed-loop feedback across the entire motion control chain.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory environment, the Heidenhain 785C.0003-18000 sits at the heart of the precision measurement data chain. At the field level, Heidenhain LB 382C and LC 483 exposed linear encoders generate absolute position signals that are transmitted via the EnDat 2.2 interface directly into the 785C.0003-18000 gateway. The gateway conditions and serializes this data before forwarding it upstream to Siemens SINUMERIK 840D sl CNC controllers or Fanuc Series 30i-B motion controllers, where real-time interpolation and axis compensation algorithms execute within microseconds.

For multi-axis machining centers, the 785C.0003-18000 operates in parallel with Heidenhain EXE 610D interpolation electronics and PWM 21 position display units, forming a tightly synchronized measurement loop. Position data flows from the gateway into the machine’s PROFINET or EtherCAT backbone, where it is aggregated by an industrial Ethernet switch — such as those in the Siemens SCALANCE X series — before being delivered to the plant-level SCADA system. Operators monitoring the Siemens WinCC or Wonderware InTouch HMI dashboards receive live axis position, velocity, and encoder health diagnostics without any polling delay.

In servo drive applications, the gateway interfaces with Siemens SINAMICS S120 or Bosch Rexroth IndraDrive drive systems, providing the absolute encoder feedback required for safe torque-off (STO) and safe limited speed (SLS) safety functions. The EnDat 2.2 protocol’s bidirectional capability also allows the drive controller to write parameters and read encoder memory cells — including serial number, resolution, and calibration data — directly through the 785C.0003-18000, eliminating the need for separate commissioning tools during initial setup or after encoder replacement.

At the edge computing layer, data aggregated from multiple 785C.0003-18000 gateways is collected by an industrial edge gateway running OPC UA server software, enabling seamless integration with MES and ERP platforms. Remote diagnostic agents can query encoder status registers, signal quality metrics, and position deviation logs without interrupting the production cycle, supporting predictive maintenance workflows across the entire linear axis network.

Solving Data Isolation in Industrial Sites

Many manufacturing facilities operating legacy CNC equipment face a persistent challenge: linear encoders and position measurement systems that speak proprietary protocols cannot communicate directly with modern SCADA, MES, or cloud analytics platforms. The result is data isolation — critical axis position and encoder health information remains trapped at the machine level, invisible to plant managers and maintenance engineers who need it most.

The Heidenhain 785C.0003-18000 directly addresses this problem. By acting as a transparent protocol bridge between the EnDat 2.2 encoder bus and standard industrial fieldbus or Ethernet networks, it eliminates the communication gap that has historically forced operators to rely on manual measurement logs or periodic offline calibration checks. With the 785C.0003-18000 in place, absolute position data from every linear axis is continuously available to the plant network in real time.

For facilities running mixed-vendor environments — combining Heidenhain encoders with Siemens, Fanuc, or Mitsubishi controllers — the gateway’s broad protocol compatibility ensures that encoder data can be normalized and forwarded to any upstream system without custom middleware development. This dramatically reduces integration time during machine retrofits or production line expansions, and allows engineering teams to add new axes or measurement points to the network without redesigning the communication architecture.

Remote monitoring and diagnostics are equally transformed. Maintenance teams can access encoder signal quality indicators, position deviation trends, and fault history logs from any networked workstation or mobile device, enabling condition-based maintenance scheduling that reduces unplanned downtime. When an encoder approaches end-of-life or a cable develops intermittent signal degradation, the system generates an alarm through the SCADA platform before a production fault occurs — turning reactive maintenance into a proactive, data-driven process.

All units are shipped after full functional testing and communication verification. Availability confirmed by RFQ inventory ensures short lead times for urgent replacement or new installation projects. Every Heidenhain 785C.0003-18000 supplied by ZYPLC is covered by a , with technical support available throughout the warranty period.

Industrial Connectivity FAQ

Q1: What communication latency can I expect from the Heidenhain 785C.0003-18000 in a real-time CNC application?
The EnDat 2.2 protocol operates at clock frequencies up to 16 MHz, delivering position data cycle times well below 10 microseconds in typical CNC configurations. This is sufficient for high-speed closed-loop servo control on linear axes with rapid traverse rates exceeding 60 m/min, and meets the determinism requirements of SINUMERIK 840D sl and Fanuc 30i-B real-time interpolation cycles.

Q2: Is the 785C.0003-18000 compatible with both PROFINET and EtherCAT network architectures?
Yes. The gateway’s EnDat 2.2 interface is compatible with controller platforms that support PROFINET IRT, EtherCAT, and PROFIBUS-DP fieldbus topologies. The specific network protocol used on the controller side is determined by the CNC or drive system’s communication module, not by the encoder gateway itself. This makes the 785C.0003-18000 suitable for integration into a wide range of existing network architectures without requiring changes to the plant’s fieldbus infrastructure.

Q3: How does the gateway support system expansion when adding new linear axes to an existing installation?
Each 785C.0003-18000 unit supports one EnDat encoder channel. For multi-axis expansions, additional gateway units are added in parallel on the controller’s encoder interface bus. Because each unit stores encoder identification data in its memory, the controller can automatically recognize new axes during commissioning without manual parameter entry, simplifying the integration of additional linear scales into an existing SCADA or MES data collection framework.

Q4: What does the cover, and what pre-shipment testing is performed?
Every Heidenhain 785C.0003-18000 unit supplied by ZYPLC undergoes functional communication testing prior to shipment, including EnDat 2.2 protocol handshake verification, signal integrity checks, and connector inspection. The covers manufacturing defects and communication failures under normal operating conditions. Technical support for installation, configuration, and troubleshooting is available throughout the warranty period via direct contact with the ZYPLC technical team.
