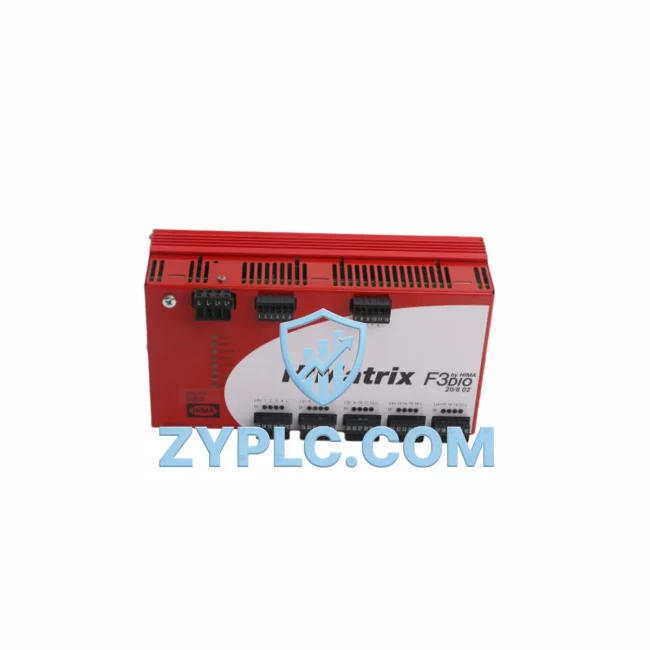

HIMA F3DIO 20/8 02 Industrial Network Interface for HIMax Systems

HIMA F3DIO 20/8 02: Industrial Data Link and Smart Factory Connectivity for HIMax Systems

The HIMA F3DIO 20/8 02 is a SIL3-certified safety digital I/O module engineered for mission-critical industrial network environments. Designed to operate within the HIMax safety controller platform, this module serves as a high-integrity interface node in the data chain connecting field-level devices, safety PLCs, remote I/O stations, HMI panels, SCADA systems, variable frequency drives, and enterprise-level supervisory networks. In modern smart factory deployments where real-time data integrity and functional safety are non-negotiable, the F3DIO 20/8 02 delivers the communication reliability and protocol compatibility that industrial automation engineers demand.

From the moment a field sensor generates a process signal, the F3DIO 20/8 02 captures and conditions that digital input with SIL3-level diagnostic coverage. The module’s 20 digital inputs and 8 digital outputs are tightly integrated into the HIMax backplane communication architecture, enabling deterministic data transfer to the central safety CPU without latency spikes or signal degradation. This tight coupling between field signal acquisition and the HIMax processor ensures that safety-critical decisions — emergency shutdowns, interlock activations, and alarm triggers — are executed within the response times demanded by IEC 61508 and IEC 61511 functional safety standards.

Network Communication Table

Connected Automation Data Flow

In a typical HIMax-based safety architecture, the F3DIO 20/8 02 sits at the intersection of field instrumentation and the safety control layer. Process signals from pressure transmitters, position switches, and emergency stop buttons are wired directly into the module’s 20 digital input channels. These signals are then validated through the HIMax internal bus and passed to the HIMA F3 CPU 0 02 safety processor, which executes the safety logic and generates output commands back through the F3DIO 20/8 02’s 8 digital output channels to actuators, solenoid valves, and motor starters.

For plants requiring integration with distributed control systems, the HIMA X-COM 01 communication module bridges the HIMax safety network to PROFIBUS DP or PROFINET segments, enabling the F3DIO 20/8 02’s process data to flow upstream to Siemens SIMATIC S7 PLCs or Honeywell Experion DCS platforms without protocol conversion bottlenecks. On the SCADA layer, OPC UA gateways — such as the HIMA F8650X safety controller in larger configurations — aggregate real-time I/O states from multiple F3DIO modules and publish them to historian servers and MES platforms, enabling plant-wide production transparency.

Remote I/O expansion is handled through the HIMA F3 DI 20 01 digital input module and the HIMA F2DO 16 01 digital output module, which extend the I/O count across distributed marshalling cabinets while maintaining SIL3 data integrity over the HIMax backplane. For analog process variables — temperature loops, flow measurements, and pressure signals — the HIMA F3 AIO 8/4 01 analog I/O module works in parallel with the F3DIO 20/8 02 to deliver a complete mixed-signal safety I/O solution within a single HIMax chassis.

At the HMI layer, operator workstations running Wonderware InTouch or Ignition SCADA receive live digital status data from the F3DIO 20/8 02 via OPC DA/UA server connections, giving control room operators real-time visibility into valve positions, motor run states, and safety interlock statuses. Variable frequency drives from manufacturers such as ABB or Siemens receive safe-stop and run-enable signals directly from the module’s digital outputs, completing the data loop from sensor to actuator to supervisory system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy PROFIBUS DP segments running alongside newer PROFINET and Ethernet/IP networks, with safety systems operating on entirely separate communication islands. The HIMA F3DIO 20/8 02, when paired with the HIMA X-COM 01 gateway module, resolves this fragmentation by acting as a protocol bridge between the HIMax safety bus and standard industrial fieldbus networks. Safety I/O data that was previously locked within the safety controller can now be surfaced to SCADA historians, cloud analytics platforms, and remote monitoring dashboards without compromising the integrity of the safety function.

For remote diagnostics, the HIMax platform’s built-in diagnostic capabilities allow maintenance engineers to interrogate the F3DIO 20/8 02’s channel-level status — input wire-break detection, output short-circuit monitoring, and module health flags — from a remote engineering workstation without requiring a site visit. This capability dramatically reduces mean time to repair (MTTR) in geographically distributed facilities such as offshore platforms, pipeline compressor stations, and remote chemical processing units.

Production line transparency is achieved by mapping the F3DIO 20/8 02’s I/O states to KPI dashboards in MES and ERP systems. When a safety interlock trips, the event timestamp, affected channel, and diagnostic code are automatically logged and forwarded to the plant historian, enabling root-cause analysis and regulatory compliance reporting. System expansion is equally straightforward: additional F3DIO 20/8 02 modules can be inserted into available HIMax chassis slots without system shutdown, supporting phased capacity growth as production lines are added or reconfigured.

Industrial Connectivity FAQ

Q1: What communication protocols does the HIMA F3DIO 20/8 02 support for SCADA integration?
The F3DIO 20/8 02 integrates into the HIMax backplane bus and, via the HIMA X-COM 01 communication module, supports PROFIBUS DP, PROFINET, Modbus TCP/IP, and OPC UA for upstream SCADA and DCS connectivity. This enables seamless data exchange with Wonderware, Ignition, Siemens WinCC, and other major SCADA platforms without additional protocol converters.

Q2: How does the module maintain network stability in high-noise industrial environments?
The F3DIO 20/8 02 is designed to IEC 61508 SIL3 standards, incorporating redundant signal path diagnostics, EMC-hardened input circuits, and watchdog-supervised output drivers. The HIMax backplane communication architecture uses deterministic, time-triggered protocols that eliminate network jitter and ensure consistent cycle times even in electrically noisy environments such as motor control centers and high-voltage switchgear rooms.

Q3: Can the F3DIO 20/8 02 be expanded or replaced without a full system shutdown?
Yes. The HIMax platform supports hot-standby redundancy configurations where I/O modules can be replaced or added during scheduled maintenance windows with minimal process interruption. Additional F3DIO 20/8 02 modules can be inserted into available chassis slots, and the HIMax CPU automatically recognizes and configures the new module through the backplane without requiring a full system restart.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the F3DIO 20/8 02?
Every HIMA F3DIO 20/8 02 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify digital I/O channel integrity, backplane communication handshake, and module identification. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch with global shipping support. For pricing, lead time, and technical consultation, contact ZYPLC at +86 19859288691 or [email protected].
