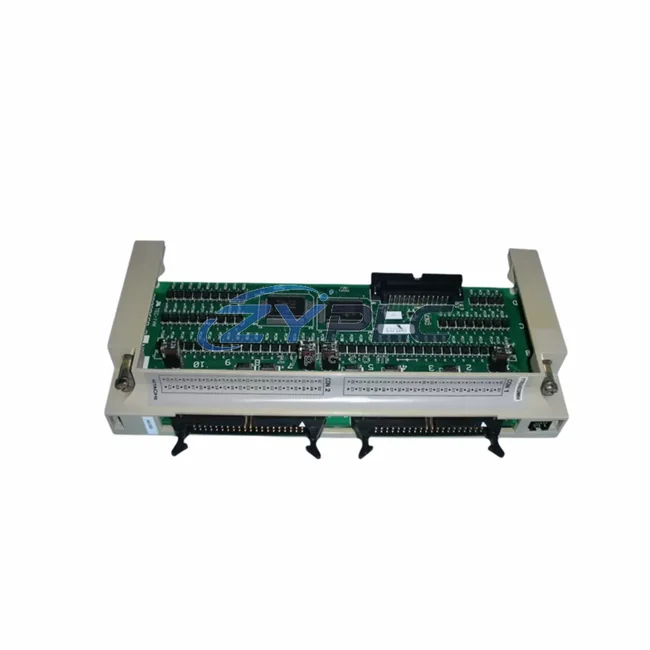

Hitachi YTR24D3MH Digital I/O for YTR

Hitachi YTR24D3MH Digital I/O for YTR: Control System and Upstream–Downstream Coordination

The Hitachi YTR24D3MH is a 24-point digital I/O module purpose-built for deployment within the Hitachi YTR Series distributed control architecture. Rather than functioning as a standalone component, the YTR24D3MH is engineered to operate as an integral node within a layered automation hierarchy — coordinating signal acquisition, logic execution, and field-level actuation across the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer simultaneously. This document examines the YTR24D3MH from a system architecture perspective, detailing how it enhances system consistency, scalability, redundancy capability, and long-term maintenance efficiency across demanding industrial environments.

Product Specification Table

System Compatibility Notes

The YTR24D3MH achieves its full performance potential only when integrated within a coherent YTR Series control platform. At the control layer, the Hitachi EH-CPU516 or EH-CPU548 CPU module serves as the central processing unit, executing ladder logic and function block programs that govern the YTR24D3MH’s I/O scan cycle. The CPU communicates with the I/O module via the YTR Series backplane, ensuring deterministic scan times and synchronized data exchange across all installed modules.

Power integrity is maintained by the Hitachi EH-PS32 power supply module, which delivers regulated 24 VDC to the backplane and all connected I/O modules including the YTR24D3MH. In redundant power configurations, a secondary EH-PS32 unit can be installed in parallel, eliminating single-point power failure risk — a critical requirement in continuous-process industries such as petrochemical refining and water treatment.

Within the I/O layer, the YTR24D3MH operates alongside complementary modules such as the YTR16D3MH (16-point digital I/O) and the YTR16A3MH (16-point analog I/O), enabling engineers to construct mixed-signal I/O racks tailored to the specific signal density and type requirements of each control zone. This modular approach allows incremental expansion without disrupting existing wiring or logic programs — a significant advantage during phased plant upgrades.

At the network layer, the Hitachi EH-ETH Ethernet communication module bridges the YTR Series backplane to plant-level SCADA systems and MES platforms via Modbus TCP or proprietary Hitachi protocols. For serial communication requirements, the Hitachi EH-SIO serial I/O module provides RS-232C and RS-485 connectivity, supporting legacy field devices and third-party instrumentation that cannot be migrated to Ethernet-based protocols.

Human-machine interface integration is achieved through compatible Hitachi HMI panels connected via the EH-ETH network module, providing operators with real-time visualization of digital I/O states, alarm management, and trend logging. The YTR24D3MH’s I/O status data is mapped directly into the CPU’s data registers, making all 24 points immediately accessible to the HMI without additional configuration overhead.

At the execution layer, the YTR24D3MH drives field devices including solenoid valves, motor contactors, indicator lamps, and relay coils. When paired with Hitachi terminal relay modules or third-party relay output expansion units, the module’s digital outputs can switch inductive loads safely, with the optical isolation barrier protecting the CPU and backplane from field-side voltage transients.

system integration is a defining characteristic of the YTR24D3MH’s architecture role. Because the module shares a common backplane bus, power rail, and programming environment with all other YTR Series components, system engineers can implement cross-module interlocks, coordinated startup sequences, and distributed safety shutdowns without relying on external wiring between modules. This reduces panel wiring complexity, shortens commissioning time, and simplifies fault diagnosis during maintenance cycles.

Industrial Application Notes

The YTR24D3MH is deployed across a broad spectrum of industrial automation applications where reliable digital signal management is essential to process continuity and safety.

In manufacturing and assembly line automation, the module manages conveyor belt control signals, part-present sensors, pneumatic actuator commands, and safety interlock circuits. Its 24-point capacity allows a single module to handle an entire production cell’s discrete I/O requirements, reducing rack space consumption and simplifying cable routing.

In electric power generation and distribution, the YTR24D3MH monitors circuit breaker status, transformer tap positions, and protection relay outputs. Its optical isolation ensures that high-voltage transients on the power system side do not propagate into the control system, maintaining CPU integrity during switching events.

In petrochemical and refinery applications, the module interfaces with emergency shutdown (ESD) systems, valve position feedback sensors, and pump run/stop commands. The provided by ZYPLC on all YTR24D3MH units ensures that replacement modules are available without extended lead times, supporting the strict maintenance schedules required by process safety management (PSM) regulations.

In water and wastewater treatment facilities, the YTR24D3MH controls pump station start/stop sequences, level switch inputs, and chemical dosing system commands. Its compatibility with the broader YTR Series architecture allows treatment plant operators to expand I/O capacity incrementally as new treatment stages are added, without replacing the existing CPU or communication infrastructure.

In mining and metallurgical processing, the module manages conveyor drive enable signals, crusher interlock circuits, and dust suppression system controls. The module’s wide operating temperature range and robust optical isolation make it suitable for the electrically noisy environments typical of mineral processing facilities.

Product Compatibility FAQ

Q1: Is the YTR24D3MH compatible with existing EH-150 Series CPU modules and backplanes?
The YTR24D3MH is designed for the YTR Series backplane architecture. Compatibility with EH-150 Series racks depends on the specific backplane revision and CPU firmware version. Engineers should verify backplane bus compatibility using Hitachi’s system configuration documentation before mixing YTR and EH-150 Series modules in the same rack. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: Can the YTR24D3MH be used in a redundant I/O configuration, and what additional components are required?
Redundant I/O configurations using the YTR24D3MH typically require a redundant CPU module (such as a second EH-CPU516), a redundant power supply (EH-PS32), and a redundant backplane or I/O bus coupler depending on the system architecture. The YTR24D3MH itself supports hot-standby operation when the CPU and backplane infrastructure are configured for redundancy. Detailed redundancy architecture guidance is available from ZYPLC’s engineering support team.

Q3: What does the cover, and how does ZYPLC handle warranty replacements for the YTR24D3MH?
All YTR24D3MH units supplied by ZYPLC carry a covering manufacturing defects and premature component failure under normal operating conditions. Warranty replacements are processed with priority shipping to minimize plant downtime. ZYPLC maintains Availability confirmed by RFQ inventory of YTR24D3MH modules to ensure RFQ-coordinated fulfillment of both warranty replacements and standard purchase orders. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim or verify current stock availability.
