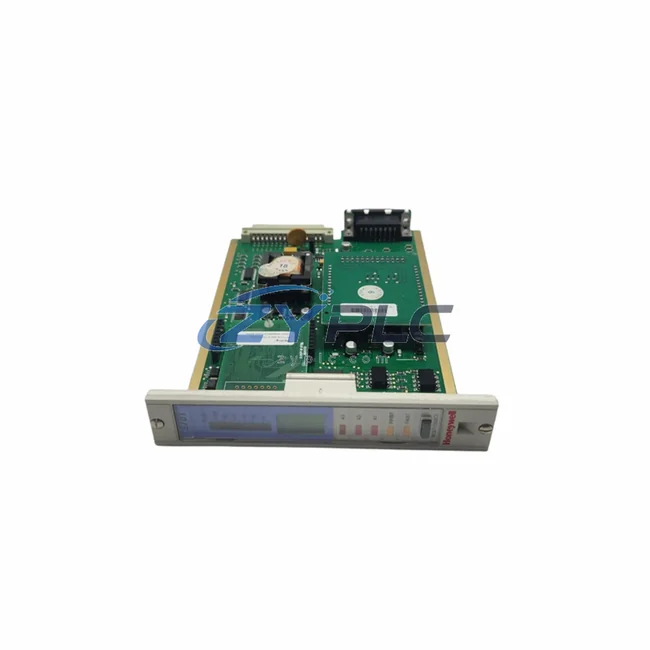

Honeywell 05701-A-0301 Control Card for Experion

Honeywell 05701-A-0301 Control Card for Experion PKS

In modern distributed control system (DCS) deployments, every module must earn its place within a precisely coordinated architecture. The Honeywell 05701-A-0301 Channel Control Card is not simply a standalone component — it is a system-compatible building block engineered to integrate seamlessly into the Experion PKS control platform, supporting consistent signal management, redundant I/O expansion, and long-term operational stability across demanding industrial environments. Whether deployed in a greenfield process plant or as a replacement module in an existing Experion architecture, the 05701-A-0301 delivers the reliability and system integration that modern automation engineers require.

Understanding the role of the 05701-A-0301 requires viewing it within the full control hierarchy. From the controller layer down through I/O marshalling, field termination, and network communication, each layer depends on the precision and compatibility of its components. The 05701-A-0301 occupies a critical position in the I/O layer, where it manages channel-level signal conditioning and routing between field instruments and the Experion process controller. Its design ensures that signal integrity is maintained across the full range of operating conditions, reducing noise, minimizing latency, and supporting the deterministic control loops that process industries demand.

Product Specification Table

System Compatibility Notes

The 05701-A-0301 is designed to function as part of a coordinated Experion PKS control architecture, not as an isolated module. In a typical Experion deployment, the channel control card works in close coordination with the Honeywell C300 Process Controller, which serves as the primary control execution engine managing PID loops, sequence logic, and advanced process control strategies. The C300 relies on accurate, low-latency I/O data — data that the 05701-A-0301 helps deliver through its channel-level signal management functions.

At the power layer, the Honeywell 05701-P-0100 Power Supply Module provides stable, conditioned DC power to the chassis backplane, ensuring that the 05701-A-0301 and adjacent modules operate within their specified electrical parameters. Power redundancy is typically achieved by pairing two power supply modules in a hot-standby configuration, eliminating single points of failure at the power distribution level.

For field termination, the 05701-A-0301 interfaces with Honeywell ASSY 51304485 Series Terminal Panels and compatible FTA (Field Termination Assembly) modules, which provide the physical connection points for field instrument cables. These termination assemblies are engineered to match the signal types and channel counts of the control card, ensuring clean, organized wiring that simplifies both commissioning and long-term maintenance.

Network communication within the Experion architecture is managed through the Honeywell FTE (Fault Tolerant Ethernet) Switch infrastructure, which provides redundant, high-availability Ethernet connectivity between controllers, I/O subsystems, and the Experion server. The 05701-A-0301 operates within this network context, with its data ultimately transmitted to the Experion server for historian logging, alarm management, and operator display.

At the human-machine interface layer, Honeywell Experion PKS Operator Stations running the Station software provide real-time process visualization, trend displays, and alarm annunciation. The signal data managed by the 05701-A-0301 feeds directly into these displays, giving operators accurate, up-to-date process information for informed decision-making.

For systems requiring expanded I/O capacity, the Honeywell 05701-A-0302 and 05701-A-0303 Channel Control Cards can be installed in adjacent chassis slots, extending the I/O count while maintaining architectural consistency. This modular expansion approach allows engineers to scale the control system incrementally without redesigning the core architecture.

Redundancy at the I/O level is further supported by pairing the 05701-A-0301 with a Honeywell Redundancy Module (RM), which monitors the primary card and executes automatic switchover in the event of a fault — a critical capability for continuous process industries where unplanned downtime carries significant operational and safety consequences.

Communication gateways such as the Honeywell HC900 Modbus/TCP Gateway or compatible PROFIBUS DP Interface Modules can be integrated into the broader Experion architecture to bridge legacy field devices and third-party subsystems, ensuring that the 05701-A-0301’s data is accessible across the full plant communication network.

Industrial Application Notes

The Honeywell 05701-A-0301 Channel Control Card finds application across a wide range of process industries where the Experion PKS platform is the control system of choice. In oil refining and petrochemical plants, the card supports the precise analog signal management required for temperature, pressure, flow, and level control loops — processes where signal accuracy directly impacts product quality and operational safety. Its compatibility with redundant I/O configurations makes it particularly well-suited for safety-critical applications where SIL-rated control loops must maintain continuous operation.

In power generation facilities — including thermal, combined-cycle, and cogeneration plants — the 05701-A-0301 supports the high-channel-count I/O requirements of turbine control, boiler management, and balance-of-plant systems. The card’s stable backplane communication ensures that control data is delivered to the C300 controller with the determinism required for fast-response control loops.

For water and wastewater treatment plants, the 05701-A-0301 provides reliable signal management for pump control, chemical dosing, and filtration process monitoring. Its industrial temperature rating and robust construction make it suitable for the challenging environmental conditions common in water treatment facilities.

In mining and minerals processing operations, where control systems must manage large numbers of field instruments across geographically distributed process areas, the modular expansion capability of the 05701-A-0301 within the Experion chassis architecture allows engineers to build scalable, maintainable control systems that grow with the operation.

Pharmaceutical and food & beverage manufacturers benefit from the card’s support for validated Experion PKS configurations, where change management, audit trails, and system consistency are regulatory requirements. The 05701-A-0301’s compatibility with the Experion platform’s built-in change management tools simplifies the validation process and reduces the documentation burden associated with module replacements.

Product Compatibility FAQ

Q1: Is the Honeywell 05701-A-0301 compatible with all Experion PKS chassis configurations?
The 05701-A-0301 is designed for use within the Honeywell Experion PKS I/O chassis and is compatible with standard Experion PKS C300 controller-based architectures. Compatibility with specific chassis generations and firmware revisions should be verified against the Honeywell Experion PKS hardware compatibility matrix. Our technical team can assist with compatibility verification prior to shipment to ensure the module integrates correctly with your existing system configuration.

Q2: Can the 05701-A-0301 be installed in a redundant I/O configuration, and what additional components are required?
Yes, the 05701-A-0301 supports redundant I/O configurations within the Experion PKS architecture. Implementing redundancy typically requires a paired Honeywell Redundancy Module (RM) installed in the adjacent chassis slot, along with compatible FTA (Field Termination Assembly) modules that support redundant wiring. The Experion PKS system software manages automatic switchover between primary and redundant modules, ensuring continuous I/O availability in the event of a module fault. All components supplied by ZYPLC are covered under our warranty terms confirmed during quotation.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for Experion PKS systems?
Our warranty terms confirmed during quotation covers the Honeywell 05701-A-0301 against manufacturing defects and functional failures under normal operating conditions. Each module is tested prior to shipment to verify correct operation within the Experion PKS architecture. For long-term maintenance support, ZYPLC maintains inventory of Honeywell Experion PKS modules — including channel control cards, power supplies, redundancy modules, and FTA assemblies — to support rapid replacement and minimize system downtime. Our engineering team is available to assist with installation guidance, system compatibility questions, and post-installation technical support throughout the warranty period and beyond.
