HONEYWELL 05704-A-0123 Industrial Network Interface for Experion Systems

HONEYWELL 05704-A-0123 Industrial Network Interface for Experion Systems: Bridging the Industrial Data Link in Smart Factory Environments

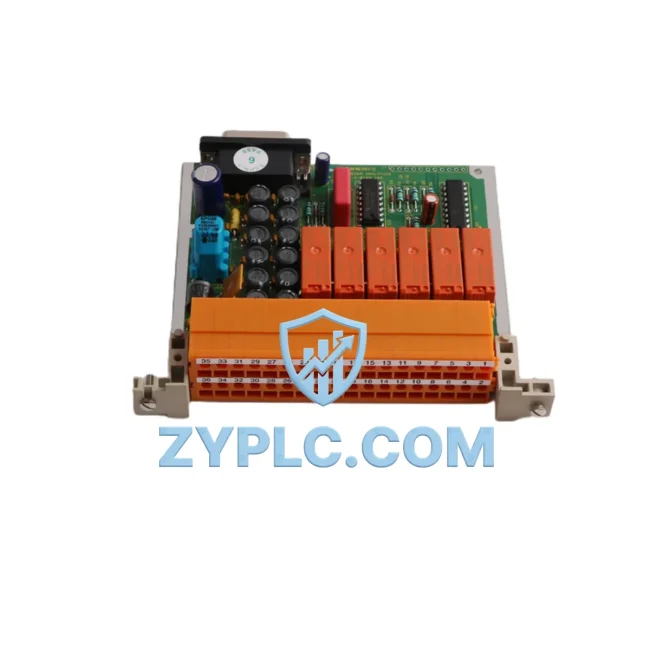

The HONEYWELL 05704-A-0123 Expansion Relay Card is a precision-engineered output module designed for seamless integration within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. As modern industrial facilities demand tighter data loops between field devices and supervisory systems, the 05704-A-0123 serves as a critical relay output node — converting digital control signals from the Experion controller into reliable switching actions across motors, solenoids, alarms, and actuators on the plant floor.

In a typical smart factory deployment, data originates at the sensor and field instrument level — pressure transmitters, flow meters, and temperature sensors feed real-time process values into remote I/O modules. These values are aggregated and transmitted via the Experion C300 Controller or the Experion C200E Controller over a fault-tolerant Ethernet backbone to the supervisory layer. The 05704-A-0123 Expansion Relay Card sits within this architecture as a discrete output module, receiving commands from the controller and executing relay switching with high-speed response — ensuring that process interlocks, alarm outputs, and motor start/stop sequences are executed with deterministic timing.

Network Communication Table

Connected Automation Data Flow

Understanding the role of the HONEYWELL 05704-A-0123 requires tracing the full data flow from field device to enterprise system. At the lowest level, field instruments — including HART-enabled pressure transmitters and Modbus RTU sensors — transmit process data to the Honeywell HLAI (High-Level Analog Input) modules and SDO (Smart Digital Output) modules housed within the same Experion I/O cabinet. These modules communicate upstream to the Experion C300 Process Controller via the Experion Series backplane, where control logic is executed in real time.

The C300 Controller evaluates process conditions against configured setpoints and issues discrete output commands to the 05704-A-0123 Expansion Relay Card. The relay card then switches its output contacts — energizing or de-energizing connected field devices such as motor starters, solenoid valves, and alarm horns. This closed-loop control sequence — from sensor signal acquisition through protocol-native backplane communication to relay actuation — completes in milliseconds, supporting the deterministic response requirements of process safety and interlock systems.

At the supervisory level, the Honeywell Experion Operator Station and Experion Station HMI display real-time relay status, alarm states, and process trends sourced directly from the C300 Controller. For facilities integrating third-party SCADA platforms, the Honeywell OPC Server bridges the Experion data highway to external systems — enabling platforms such as Wonderware, iFIX, or Ignition SCADA to consume live relay status data via OPC-DA or OPC-UA. In multi-network environments, the Honeywell Experion FTE Switch (Fault Tolerant Ethernet Switch) provides the redundant network backbone that ensures uninterrupted data flow between controllers, I/O modules, and operator stations — even during a single network path failure.

For facilities requiring protocol bridging between legacy serial networks and modern Ethernet-based DCS architectures, the Honeywell HC900 Hybrid Controller or a dedicated Modbus-to-Ethernet Gateway can be deployed alongside the Experion system to aggregate data from older Modbus RTU devices and present it to the Experion supervisory layer. Variable frequency drives (VFDs) and soft starters connected to the relay outputs of the 05704-A-0123 can also report operational feedback — run status, fault codes, and speed references — back through the I/O network to the SCADA historian, enabling full-loop visibility from drive command to process response.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where field devices, PLCs, DCS controllers, and enterprise systems operate in disconnected silos, each using incompatible protocols or proprietary communication buses. The HONEYWELL 05704-A-0123 Expansion Relay Card directly addresses this challenge within the Experion PKS ecosystem by providing a standardized, backplane-native relay output interface that eliminates the need for external signal conditioning or protocol conversion hardware between the controller and discrete output devices.

In facilities where older relay panels or hardwired interlock systems have historically created maintenance bottlenecks and limited remote visibility, replacing legacy relay logic with the 05704-A-0123 within the Experion I/O architecture delivers immediate benefits: relay status is now digitally reported to the DCS, logged in the Experion historian, and visible on the operator HMI — transforming previously opaque hardwired logic into transparent, auditable, and remotely monitorable control actions.

For production line transparency, the 05704-A-0123 supports integration with Honeywell’s Uniformance PHD Historian, enabling long-term trending of relay cycle counts, contact wear indicators, and interlock activation frequency. This data supports predictive maintenance programs and reduces unplanned downtime by identifying relay modules approaching end-of-life before failure occurs. Remote diagnostic capabilities — accessible through the Experion Station or via secure remote desktop to the operator workstation — allow maintenance engineers to interrogate relay status, review alarm histories, and execute test sequences without requiring physical access to the control cabinet.

System expansion is equally straightforward: the modular architecture of the Experion I/O system allows additional 05704-A-0123 Expansion Relay Cards to be added to existing cabinets as production capacity grows, without requiring controller replacement or network reconfiguration. This scalability makes the 05704-A-0123 a long-term investment for facilities planning phased automation upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the HONEYWELL 05704-A-0123 support, and is it compatible with third-party SCADA systems?
The 05704-A-0123 communicates natively over the Honeywell Experion backplane bus and integrates with the Experion FTE (Fault Tolerant Ethernet) network. For third-party SCADA integration, relay status data is accessible via the Honeywell OPC Server using OPC-DA or OPC-UA protocols, making it compatible with major SCADA platforms including Wonderware, iFIX, Citect, and Ignition.

Q2: How does the 05704-A-0123 ensure network stability and minimize communication latency in high-demand process environments?
The module operates on the Experion backplane with deterministic scan cycle timing managed by the C300 or C200E Controller. The Experion FTE network provides dual-path redundancy, ensuring that a single cable or switch failure does not interrupt relay command delivery. Typical command-to-relay-actuation latency is within the controller scan cycle — typically 100–500ms depending on configuration — meeting the response requirements of most process interlock and alarm annunciation applications.

Q3: Can the 05704-A-0123 be added to an existing Experion system without disrupting ongoing production?
Yes. The Experion PKS I/O architecture supports hot-insertion of expansion modules in systems configured for redundant I/O. For non-redundant configurations, module addition typically requires a brief controller download. ZYPLC recommends coordinating module installation during scheduled maintenance windows. All 05704-A-0123 units supplied by ZYPLC are pre-tested and verified for compatibility prior to shipment.

Q4: What warranty and post-sale support does ZYPLC provide for the HONEYWELL 05704-A-0123?
Every HONEYWELL 05704-A-0123 Expansion Relay Card supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Units undergo outgoing quality inspection and functional verification before dispatch. Our technical team provides post-sale support for installation guidance, compatibility verification, and system integration questions. Contact us at +86 19859288691 or [email protected] for pre-sales consultation or after-sales support.
