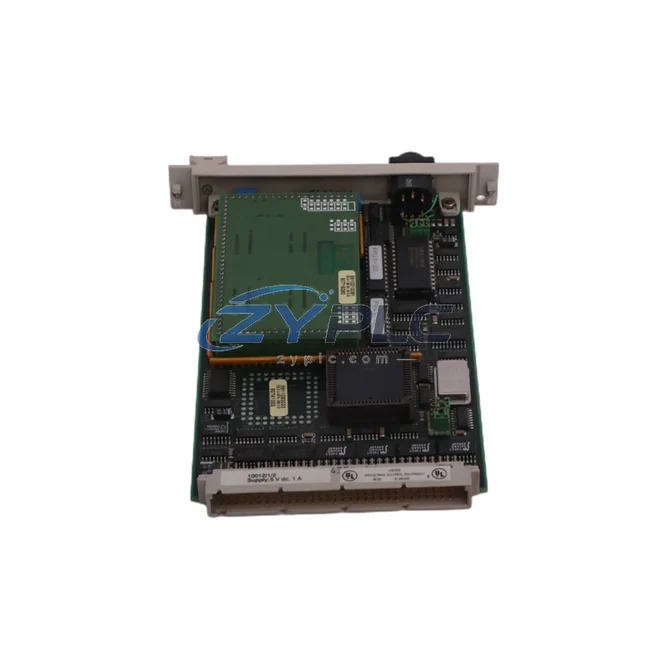

HONEYWELL 10012/1/2 Industrial Network Interface for HC900 Systems

HONEYWELL 10012/1/2 Industrial Network Interface: Bridging HC900 Systems to Smart Factory Data Links

The HONEYWELL 10012/1/2 is a high-performance industrial communication gateway engineered for the HC900 Process Controller Series. Designed to serve as the critical data bridge between field-level devices and upper-level control systems, this module enables seamless protocol conversion, real-time data transmission, and robust network integration across complex industrial automation architectures. Whether deployed in continuous process plants, batch manufacturing lines, or hybrid smart factory environments, the 10012/1/2 delivers the connectivity backbone that modern industrial operations demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, data isolation is the enemy of efficiency. The HONEYWELL 10012/1/2 sits at the heart of the industrial data chain, connecting field instruments and actuators upward through the control hierarchy to enterprise-level systems. At the field level, process sensors — including temperature transmitters, pressure transducers, and flow meters — feed analog and digital signals into the HC900 Remote I/O modules (such as the HC900-RIOM series). These signals are conditioned and passed to the HC900 CPU module, where the 10012/1/2 gateway handles the protocol translation required to push live process data onto the plant Ethernet backbone.

From the Ethernet backbone, the data stream reaches Honeywell Experion PKS SCADA servers and HC Designer HMI workstations, where operators gain real-time visibility into process variables, alarm states, and trend histories. The 10012/1/2 supports Modbus TCP polling from SCADA clients, enabling third-party systems — including Wonderware InTouch HMI and Ignition SCADA platforms — to read and write HC900 process data without proprietary middleware.

For legacy serial device integration, the module’s RS-485 Modbus RTU port connects directly to Honeywell UDC series PID controllers, Honeywell DR4500 chart recorders, and variable frequency drives (VFDs) from third-party vendors. This dual-protocol capability eliminates the need for standalone protocol converters, reducing panel footprint and simplifying network topology. In multi-loop control architectures, the 10012/1/2 also facilitates peer-to-peer data exchange between multiple HC900 controller racks, enabling coordinated control strategies across geographically distributed process units.

At the edge, the gateway’s data output can be consumed by industrial edge computing nodes running IIoT analytics software, forwarding aggregated process KPIs to cloud-based MES and ERP platforms. This positions the 10012/1/2 not merely as a communication module, but as a foundational element of the plant’s digital transformation roadmap — enabling predictive maintenance, energy monitoring, and production optimization without replacing existing HC900 infrastructure.

Solving Data Isolation in Industrial Sites

Many industrial facilities face persistent challenges: legacy equipment speaks incompatible protocols, process data is trapped in isolated control islands, and remote monitoring requires costly on-site visits. The HONEYWELL 10012/1/2 directly addresses these pain points.

Protocol Fragmentation: Plants running a mix of Modbus RTU serial devices alongside modern Ethernet-based SCADA systems often struggle with data integration. The 10012/1/2 bridges this gap natively, converting RTU frames to TCP packets in real time without data loss or latency spikes — ensuring that every process variable reaches the control room accurately and on schedule.

Data Silos: When HC900 controllers operate in isolation from plant-wide SCADA or MES systems, production managers lose visibility into critical process parameters. By enabling standard Modbus TCP connectivity, the 10012/1/2 opens HC900 data to any compliant client system, breaking down information silos and enabling cross-system data correlation for root cause analysis and performance benchmarking.

Remote Monitoring Limitations: Unplanned downtime caused by undetected equipment faults is a major cost driver in process industries. The 10012/1/2 supports continuous remote diagnostics by maintaining a live data link between the HC900 controller and remote SCADA or cloud monitoring platforms. Alarm events, fault codes, and process deviations are transmitted in real time, enabling maintenance teams to respond proactively — often before a fault escalates to a production stoppage.

Production Line Transparency: With the 10012/1/2 in place, every HC900-controlled process loop becomes visible to plant-wide dashboards and reporting tools. Shift supervisors, process engineers, and plant managers can access live and historical data from any networked workstation, improving decision-making speed and operational accountability.

System Scalability: As production capacity grows, the 10012/1/2 scales with it. Additional HC900 I/O racks, remote stations, and third-party devices can be integrated into the existing network without architectural redesign, protecting the plant’s automation investment over the long term.

Industrial Connectivity FAQ

Q1: What communication protocols does the HONEYWELL 10012/1/2 support, and is it compatible with third-party SCADA systems?
The 10012/1/2 supports Modbus TCP over Ethernet and Modbus RTU over RS-485 serial interfaces. It is fully compatible with any SCADA, HMI, or DCS platform that implements the standard Modbus protocol — including Wonderware, Ignition, iFIX, and Honeywell Experion PKS. No proprietary drivers or middleware are required for basic Modbus connectivity.

Q2: How does the module handle communication latency in time-critical process control applications?
The 10012/1/2 is optimized for low-latency data exchange within the HC900 controller architecture. Modbus TCP polling cycles are configurable to match the scan rate requirements of the connected SCADA system, and the module’s onboard processing ensures that protocol conversion does not introduce measurable delays in normal operating conditions. For applications with strict real-time requirements, Honeywell recommends configuring dedicated Ethernet segments to minimize network contention.

Q3: Can the 10012/1/2 be integrated into an existing HC900 system without replacing the current CPU or I/O modules?
Yes. The 10012/1/2 is designed for seamless integration into existing HC900 controller racks. It occupies a standard module slot and communicates with the HC900 CPU via the internal backplane bus, requiring no changes to existing I/O wiring or control logic. Configuration is performed through the HC Designer software, which supports online module addition without process interruption in most applications.

Q4: What quality assurance and warranty coverage is provided with the HONEYWELL 10012/1/2?
Every HONEYWELL 10012/1/2 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol compliance, and hardware condition. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for shipment arranged after confirmation, with global shipping supported. For volume orders, lead time and pricing inquiries, contact our technical sales team directly.
