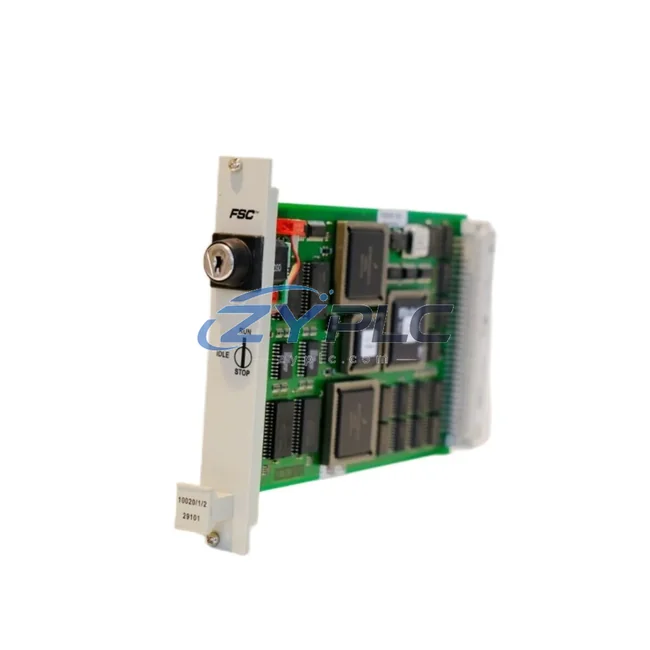

Honeywell 10020/1/2 CPU Module for TDC 3000 Systems

Honeywell 10020/1/2 Industrial Network Interface for TDC 3000 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Honeywell 10020/1/2 is a high-performance CPU Module engineered for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in the petrochemical, refining, power generation, and advanced manufacturing industries. Designed to serve as the central processing and communication backbone of the TDC 3000 control network, the 10020/1/2 enables seamless data exchange between field instrumentation, remote I/O subsystems, HMI workstations, SCADA servers, and enterprise-level MES platforms. In an era where industrial connectivity defines operational efficiency, this module delivers the protocol intelligence and network stability that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TDC 3000 control architecture, the Honeywell 10020/1/2 CPU Module sits at the heart of the data flow chain — orchestrating communication between every layer of the automation hierarchy. At the field level, process signals from pressure transmitters, flow meters, thermocouples, and smart sensors are collected by Honeywell PM I/O (Process Manager Input/Output) modules and forwarded via the Universal Control Network (UCN) to the 10020/1/2 for real-time processing.

The CPU module executes control logic and passes processed data upstream through the Local Control Network (LCN) — Honeywell’s proprietary high-speed deterministic bus — to Honeywell US (Universal Station) HMI consoles and GUS (Global User Station) operator workstations, where process engineers monitor live plant conditions. Simultaneously, the 10020/1/2 interfaces with Honeywell AM (Application Module) nodes that run advanced process control algorithms, historian functions, and alarm management routines.

For SCADA integration, the module communicates via Modbus RTU or Modbus TCP through gateway interfaces such as the Honeywell HG (Hiway Gateway) or third-party OPC DA/UA servers, enabling upstream data delivery to plant-wide SCADA platforms, MES systems, and cloud-based analytics engines. Remote I/O expansion is supported through Honeywell PM (Process Manager) controllers connected via UCN, allowing distributed field cabinets to remain synchronized with the central DCS without additional protocol conversion overhead.

In drive and motor control applications, the 10020/1/2 coordinates with variable frequency drives (VFDs) and smart motor controllers via Modbus serial links, enabling closed-loop speed regulation and maintenance planning directly from the DCS. Edge gateway devices — including industrial IoT concentrators — can tap into the LCN data stream via the Honeywell PHD (Process Historian Database) interface, pushing time-series process data to cloud platforms for predictive maintenance and digital twin modeling.

Power integrity for the entire TDC 3000 cabinet is maintained by Honeywell redundant power supply modules, ensuring that the 10020/1/2 CPU and its associated network nodes operate without interruption even during single-point power failures — a critical requirement for continuous process industries.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to move process information freely between field devices, control systems, and enterprise platforms due to protocol fragmentation and aging hardware. The Honeywell 10020/1/2 directly addresses this challenge by serving as a multi-protocol communication hub within the TDC 3000 architecture.

Protocol Unification: Many industrial sites operate a mix of Modbus RTU legacy instruments, RS-232 serial devices, and proprietary LCN nodes. The 10020/1/2 bridges these communication layers, eliminating the need for standalone protocol converters and reducing network complexity. Engineers can configure unified data maps that aggregate signals from heterogeneous field devices into a single coherent process view.

Production Line Transparency: With the 10020/1/2 processing real-time scan cycles across all connected UCN nodes, operators gain full visibility into production line status — from raw material feed rates to finished product quality parameters — through integrated HMI and SCADA dashboards. Alarm events are propagated across the LCN in milliseconds, enabling rapid operator response and minimizing unplanned downtime.

Remote Monitoring and Diagnostics: The module supports remote diagnostic access via SCADA gateway interfaces, allowing maintenance engineers to interrogate controller health, review fault logs, and perform parameter adjustments without physical access to the control cabinet. This capability is especially valuable for offshore platforms, remote pipeline stations, and geographically distributed process facilities.

System Scalability: As production capacity grows, the TDC 3000 network can be expanded by adding additional PM controllers, UCN nodes, and LCN segments — all managed through the 10020/1/2 CPU’s network configuration tables. This modular scalability protects capital investment and allows phased automation upgrades without full system replacement.

Pre-Shipment Testing and warranty terms confirmed during quotation: Every Honeywell 10020/1/2 unit supplied by ZYPLC undergoes comprehensive functional testing prior to dispatch, including communication loop-back verification, protocol handshake confirmation, and power cycling stress tests. All units are covered by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation to minimize plant downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 10020/1/2 support, and is it compatible with modern SCADA systems?
The 10020/1/2 natively supports Honeywell’s proprietary LCN and UCN protocols, as well as Modbus RTU and RS-232 serial communication. Integration with modern SCADA platforms is achieved via OPC DA/UA gateway servers or Honeywell HG Hiway Gateway modules, enabling seamless data exchange with contemporary supervisory systems including Wonderware, iFIX, and Ignition-based architectures.

Q2: How does the module handle network stability in high-noise industrial environments?
The TDC 3000 LCN is a deterministic, token-passing network designed for high electromagnetic interference (EMI) environments typical of heavy industry. The 10020/1/2 CPU incorporates hardware-level noise filtering and watchdog timer circuits that detect and recover from transient communication faults without interrupting the control scan cycle, ensuring continuous process stability.

Q3: Can the Honeywell 10020/1/2 be integrated into an expanded or hybrid DCS/PLC architecture?
Yes. Through Modbus TCP/RTU gateway interfaces, the 10020/1/2 can exchange data with third-party PLC platforms — including Siemens S7, Allen-Bradley ControlLogix, and Schneider Modicon — enabling hybrid control architectures where legacy TDC 3000 systems coexist with modern PLC-based production lines. This interoperability is essential for phased modernization projects.

Q4: What does the warranty terms confirmed during quotation cover, and how quickly can units be shipped?
The warranty terms confirmed during quotation covers all manufacturing defects, communication failures, and component-level faults identified under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of the Honeywell 10020/1/2, with same-day or next-business-day dispatch available for urgent requirements. Global logistics support includes DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders.
