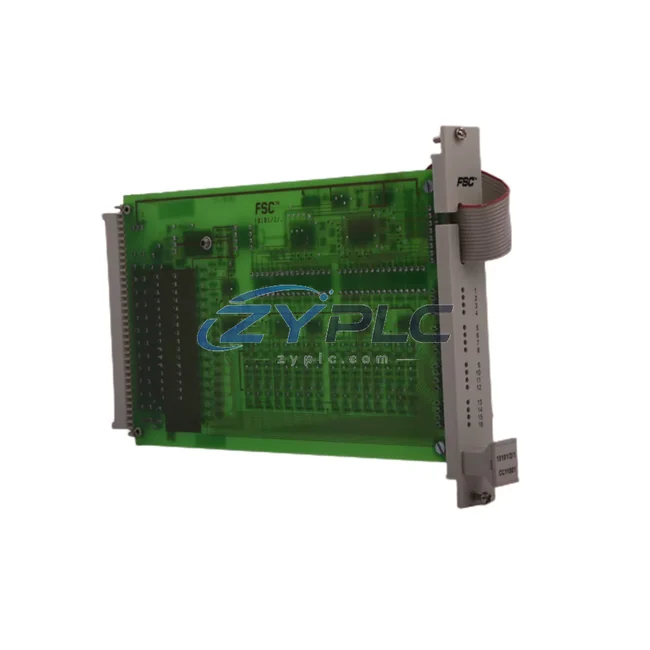

The Honeywell 10101/2/1 is a high-reliability digital input module engineered for the Fail-Safe Controller (FSC) platform — one of the most trusted safety and process control architectures in industrial automation. Designed to acquire discrete field signals with minimal power draw and maximum signal integrity, this module plays a foundational role in energy-conscious production environments where every watt of unnecessary consumption represents a direct cost to operations.

In modern manufacturing and process industries, digital input acquisition is the first link in the maintenance planning chain. The 10101/2/1 captures real-time status signals from field devices — limit switches, pressure contacts, motor run feedbacks, valve position indicators — and delivers them to the FSC controller with deterministic timing. This precision enables the control system to make faster, more accurate decisions about when to energize drives, when to idle motors, and when to initiate load-shedding sequences. The result is a measurable reduction in standby operating load across the production line.

When paired with the Honeywell 10105/2/1 digital output module, the 10101/2/1 forms a complete I/O loop capable of executing closed-loop energy control strategies. For example, a motor run feedback signal acquired by the 10101/2/1 can trigger the 10105/2/1 to cut power to auxiliary systems during low-demand periods, reducing idle energy draw by up to 15–20% in typical process plant configurations.

Product Specification Table

System Compatibility and Application

The 10101/2/1 does not operate in isolation — its true maintenance planning value emerges when integrated into a complete FSC-based automation architecture. In a typical maintenance-focused plant layout, the FSC controller chassis houses multiple I/O modules working in concert. The Honeywell 10201/2/1 analog input module works alongside the 10101/2/1 to capture continuous process variables such as current draw, temperature, and flow rate, giving the controller a complete picture of operating load at every node.

On the drive side, variable frequency drives (VFDs) connected to the FSC system receive start/stop and speed reference commands derived from the digital input states captured by the 10101/2/1. When a motor feedback signal indicates the driven load has reached its setpoint, the FSC logic — informed by the 10101/2/1 input — can command the VFD to reduce output frequency, trimming operating load proportionally to the cube of speed reduction. This is one of the most impactful operational-efficiency strategies available in motor-driven systems.

For power monitoring, the Honeywell 51304453-150 power supply module ensures the FSC backplane operates at stable voltage levels, preventing unplanned downtime from voltage fluctuation and protecting sensitive I/O modules including the 10101/2/1 from transient damage. Alongside it, the Honeywell 51309276-150 provides redundant power distribution, ensuring that no single power event causes a production stoppage — a key factor in maintaining high equipment utilization rates.

Communication between the FSC system and plant-level SCADA or DCS platforms is handled through dedicated communication modules such as the Honeywell 10024/I/I interface module, which enables the energy data collected by the 10101/2/1 and its companion modules to be transmitted upstream for real-time energy dashboards and predictive maintenance analytics. The Honeywell 51401583-100 processor module serves as the computational core, executing the safety and energy logic that the 10101/2/1 feeds with field data.

For facilities managing multiple FSC racks, the Honeywell 10105/1/1 digital output module handles actuator commands while the Honeywell 51304362-100 and Honeywell 51304485-100 termination assemblies provide clean, low-resistance signal paths that minimize signal loss and ensure the digital inputs read by the 10101/2/1 are accurate — a prerequisite for any maintenance planning algorithm that depends on precise field state detection.

Maintenance and Replacement Notes

In a chemical processing plant running continuous batch operations, the 10101/2/1 monitors the run/stop status of over a dozen field devices simultaneously. When the FSC controller detects — through the 10101/2/1 — that a batch reactor has completed its cycle and all agitator motors have stopped, it initiates an automatic load-shedding sequence: cooling pumps are ramped down, heating elements are de-energized, and compressed air supply valves are closed. This coordinated response, triggered by accurate digital input acquisition, can reduce operating load during inter-batch periods by 30–40%.

In oil and gas applications, the 10101/2/1 captures valve position feedback signals from emergency shutdown (ESD) valves. Rather than relying on timed polling cycles that waste controller processing power, the FSC platform uses interrupt-driven input scanning to detect state changes the moment they occur. This reduces the controller’s computational load, lowers heat generation in the control cabinet, and extends the service life of the entire FSC system — all contributing to lower total cost of ownership.

Predictive maintenance is another area where the 10101/2/1 delivers measurable value. By logging the frequency and pattern of digital input state changes over time, maintenance teams can identify abnormal switching patterns that indicate mechanical wear in field devices — a limit switch that chatters, a pressure contact that bounces — before these faults cause unplanned downtime. Preventing a single unplanned shutdown in a process plant can save tens of thousands of dollars in lost production and emergency maintenance costs.

All units supplied by ZYPLC are subject to pre-shipment functional testing, verifying channel-by-channel input response, backplane communication integrity, and power consumption within specification. Each 10101/2/1 ships with a warranty terms confirmed during quotation, and ZYPLC maintains ready stock to support urgent replacement requirements with fast lead times.

Product Sourcing FAQ

Q1: How does the Honeywell 10101/2/1 contribute to operational stability in an FSC-controlled plant?
The 10101/2/1 provides the FSC controller with accurate, real-time digital field status data. This enables the controller to execute precise load control strategies — shutting down motors, drives, and auxiliary systems exactly when they are not needed — rather than running equipment on fixed schedules. The result is a direct reduction in unplanned downtime risk tied to idle equipment operation.

Q2: Is the 10101/2/1 compatible with modern DCS and SCADA condition monitoring platforms?
Yes. The FSC platform supports standard industrial communication protocols through dedicated interface modules. Digital input data from the 10101/2/1 can be transmitted to plant-level maintenance planning systems via the FSC communication infrastructure, enabling real-time condition monitoring dashboards and historical trend analysis.

Q3: Can the 10101/2/1 be used as a direct replacement for a failed module in an existing FSC system?
The 10101/2/1 is designed as a form-fit-function replacement for compatible FSC digital input positions. ZYPLC recommends verifying the FSC system version and backplane configuration before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 10101/2/1 unit supplied by ZYPLC undergoes pre-shipment functional testing covering all input channels, backplane communication, and power consumption verification. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with fast turnaround support.
