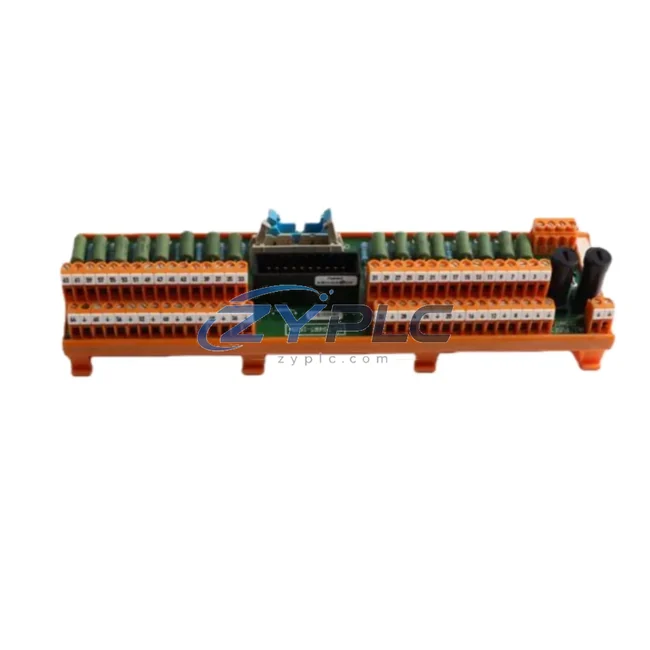

The Honeywell 10205/2/1 is a high-efficiency analog output module engineered for the Measurex series paper and web process control platform. Designed to deliver precise, low-drift analog signal output in demanding industrial environments, this module plays a critical role in reducing unplanned downtime risk across continuous production lines. By maintaining tight output accuracy, the 10205/2/1 minimizes actuator hunting, reduces valve and drive wear, and ensures that downstream equipment — including variable frequency drives, servo amplifiers, and pneumatic positioners — operates at its optimal energy setpoint rather than cycling inefficiently around a target.
In modern industrial facilities where energy cost is a key operational variable, the quality of analog output directly determines how efficiently motors, drives, and final control elements respond. A stable, calibrated output from the Honeywell 10205/2/1 means that connected Honeywell Measurex scanner systems and cross-directional (CD) control actuators receive clean, noise-free command signals — eliminating the micro-corrections that waste energy and accelerate mechanical fatigue. This translates directly into measurable reductions in operating-hour consumption per ton of product output.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
10205/2/1 |
| Brand / Series |
Honeywell / Measurex |
| Module Type |
Analog Output Module |
| Output Signal Type |
4–20 mA / 0–10 V (industry standard) |
| Output Accuracy |
High-precision, low-drift analog output |
| Power Consumption |
Low-power design optimized for continuous operation |
| Compatible Systems |
Honeywell Measurex DCS, Experion PKS, CD/MD control platforms |
| Application Environment |
Paper mills, web converting, coating lines, industrial process control |
| Maintenance Value |
Reduces actuator hunting, stabilizes drive setpoints, lowers idle energy draw |
| Origin |
United States |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
| Stock Status |
RFQ Available — shipment arranged after confirmation |
System Compatibility and Application
The Honeywell 10205/2/1 analog output module does not operate in isolation — it is a precision link in a broader maintenance-focused automation chain. In a typical Measurex-based paper machine control system, this module interfaces directly with the Honeywell Measurex MX4000 scanner platform, receiving setpoint commands from the DCS and translating them into stable analog signals that drive actuators across the machine width. When paired with Honeywell Experion PKS controllers, the module benefits from closed-loop maintenance planning strategies that dynamically adjust output based on real-time process feedback.
On the drive side, the analog output from the 10205/2/1 feeds directly into variable frequency drives (VFDs) — such as those used in headbox fan pump control, press section drives, and dryer section motors — ensuring that speed references are delivered cleanly without signal noise that would cause unnecessary speed variation and excess energy draw. In installations where Honeywell HC900 hybrid controllers manage utility systems such as steam, compressed air, and vacuum, the 10205/2/1 provides the analog interface layer that keeps energy-consuming actuators precisely positioned.
For power quality monitoring, the module works alongside Honeywell power monitoring units and third-party energy metering modules connected via HART or Modbus RTU protocols, enabling plant engineers to correlate analog output stability with real-time operating load data. In I/O-intensive control cabinets, the 10205/2/1 is typically installed alongside Honeywell Measurex digital input/output cards and analog input modules that complete the signal chain from sensor to actuator. Communication with supervisory systems is handled through Honeywell Ethernet gateway modules or legacy Measurex serial communication interfaces, ensuring that energy data flows seamlessly to the plant historian and SCADA layer.
In facilities that have integrated Honeywell Uniformance Process Historian for long-term energy trend analysis, the stable output delivered by the 10205/2/1 ensures that historian data accurately reflects true process setpoints rather than noisy approximations — a prerequisite for meaningful energy benchmarking and ISO 50001 compliance reporting.
Maintenance and Replacement Notes
In continuous web and paper production environments, unplanned downtime most commonly originates from three sources: actuator instability caused by poor signal quality, unnecessary motor speed variation due to noisy drive references, and extended machine downtime caused by control component failures. The Honeywell 10205/2/1 directly addresses all three.
When the analog output module delivers a clean, stable 4–20 mA signal to a steam valve positioner in the dryer section, the valve holds its position precisely — eliminating the micro-oscillations that waste steam energy and cause thermal stress on dryer cylinders. On a machine running 24 hours a day, even a 1–2% reduction in steam consumption represents significant annual operational stability. Similarly, when the 10205/2/1 provides a stable speed reference to a press section VFD, the drive maintains its target speed without hunting, reducing both electrical operating load and mechanical wear on press rolls and felts.
From a maintenance perspective, the 10205/2/1’s robust design and proven Measurex platform compatibility mean that replacement cycles are predictable. Our inventory is pre-tested and shipped with a warranty terms confirmed during quotation, ensuring that production teams can plan maintenance windows rather than react to unexpected failures. Each unit undergoes functional output verification and signal accuracy testing before dispatch, giving plant engineers confidence that the replacement module will perform identically to the original — with no re-tuning or recalibration required at installation.
For facilities managing multiple production lines, maintaining a small buffer stock of critical analog output modules like the 10205/2/1 is a proven strategy for minimizing mean time to repair (MTTR) and protecting overall equipment effectiveness (OEE) scores. Our supply chain supports both single-unit urgent orders and bulk procurement for planned maintenance programs.
Product Sourcing FAQ
Q1: How does the Honeywell 10205/2/1 contribute to operational stability in a paper mill?
The 10205/2/1 delivers precise, stable analog output signals to actuators and drives, eliminating the signal noise and drift that cause actuators to hunt and motors to vary speed unnecessarily. Stable control signals mean that steam valves, fan pumps, and press drives operate at their true energy-optimal setpoints, reducing operating-hour and steam consumption per ton of output.
Q2: Is the 10205/2/1 compatible with current Honeywell Measurex and Experion systems?
Yes. The 10205/2/1 is designed for the Honeywell Measurex platform and is compatible with Measurex MX4000 scanner systems and Experion PKS-integrated process control architectures. It uses standard analog output protocols (4–20 mA / 0–10 V) and can interface with HART-enabled field devices and third-party VFDs without additional signal conditioning.
Q3: What is the recommended replacement and testing process?
Each 10205/2/1 unit supplied by ZYPLC is functionally tested prior to shipment, with output accuracy verified across the full signal range. Replacement is a direct swap within the Measurex I/O chassis — no firmware updates or parameter reconfiguration are required in standard applications. We recommend verifying loop calibration after installation as part of standard commissioning practice.
Q4: What warranty and after-sales support is provided?
All units carry a warranty terms confirmed during quotation covering manufacturing defects and functional performance. ZYPLC maintains RFQ-confirmed sourcing for rapid dispatch, supporting both emergency replacement and planned maintenance procurement. Our technical team is available to assist with compatibility verification and installation guidance.
