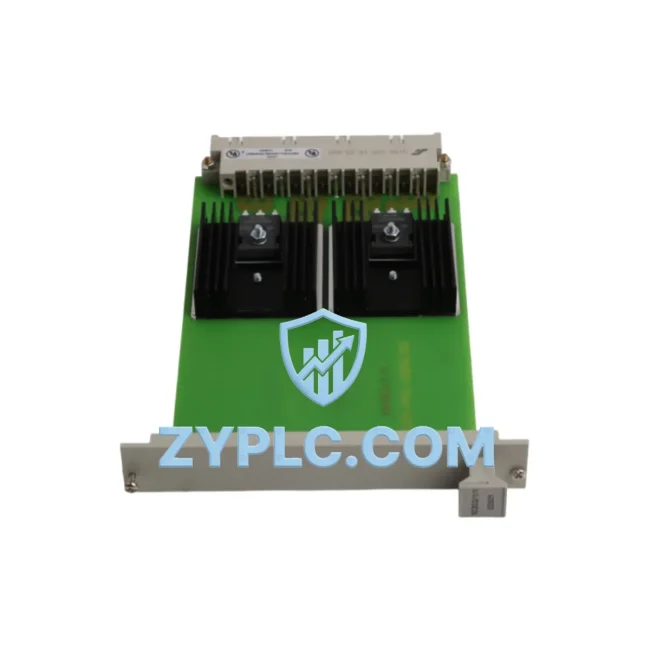

Honeywell 10303/1/1 Industrial Power Supply Module for TDC 3000 Systems

Honeywell 10303/1/1 Industrial Power Supply Module: Backbone of TDC 3000 Data Link Integrity

The Honeywell 10303/1/1 is a dedicated industrial power supply module engineered for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, and continuous manufacturing environments. As the foundational power infrastructure component within the TDC 3000 cabinet, the 10303/1/1 ensures stable, conditioned DC power delivery to every node in the control network, from field I/O modules and communication processors to advanced operator interface systems.

In a modern smart factory, uninterrupted power to the control backbone is not merely a hardware requirement — it is the prerequisite for every data transaction across the automation hierarchy. The 10303/1/1 directly supports the real-time data flow between field instruments, PLC controllers, remote I/O racks, HMI workstations, SCADA servers, and upper-level MES/ERP systems. Without a reliable power supply module at the cabinet level, signal acquisition from transmitters and sensors becomes unstable, protocol conversion between Modbus RTU field devices and the TDC 3000 Highway Gateway Module (HGM) is interrupted, and the entire data chain from the process floor to the control room is compromised.

Network Communication Table

Connected Automation Data Flow

The 10303/1/1 power supply module sits at the heart of the TDC 3000 cabinet power architecture, enabling every downstream communication and control function. In a typical smart factory deployment, the data flow begins at the field level: pressure transmitters, flow meters, temperature sensors, and valve positioners send analog and digital signals into Honeywell PM I/O (Process Manager Input/Output) modules housed in the same cabinet. These I/O modules depend entirely on the stable DC rail provided by the 10303/1/1 to accurately digitize field signals and pass them upstream.

From the Process Manager, data travels across the Universal Control Network (UCN) — a deterministic, token-passing industrial LAN — to the Honeywell Application Module (AM), where advanced regulatory and sequence control logic executes in real time. The AM communicates upstream via the Local Control Network (LCN), a high-speed fiber-optic data highway that interconnects all major TDC 3000 nodes including the History Module (HM) for long-term process data archiving, the Network Interface Module (NIM) for external system integration, and the Global User Station (GUS) — the operator HMI workstation where process graphics, alarm management, and trend displays are rendered.

For sites integrating legacy field devices, the Honeywell Highway Gateway Module (HGM) bridges the TDC 3000 Data Hiway with the UCN, enabling older Modbus RTU and HART-based instruments — including third-party variable frequency drives (VFDs), smart valve controllers, and remote I/O concentrators — to participate in the unified data network. SCADA systems connect via the NIM or dedicated OPC DA/UA servers, pulling real-time process values, alarm states, and historian data for plant-wide visibility dashboards and remote monitoring centers.

The 10303/1/1 also indirectly supports edge computing nodes and industrial IoT gateways that tap into the TDC 3000 network for data aggregation, predictive maintenance analytics, and cloud uplink. Any power instability at the cabinet level cascades into communication errors, watchdog resets, and data gaps across this entire chain — making the 10303/1/1 a mission-critical component for continuous, lossless industrial data flow.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to move process data freely between field devices, control systems, and enterprise software due to protocol fragmentation, aging hardware, or unreliable power infrastructure. The Honeywell 10303/1/1 directly addresses the power reliability dimension of this problem.

When power supply modules degrade or fail, the first symptoms are often subtle: intermittent communication dropouts on the UCN, spurious alarms from I/O modules, and unexplained gaps in historian data. These symptoms are frequently misdiagnosed as software or network issues, leading to costly and time-consuming troubleshooting. Replacing the 10303/1/1 with a verified, tested unit restores the stable power baseline that all communication and control functions depend on.

For plants pursuing production line transparency and remote monitoring via SCADA or cloud-based MES platforms, a reliable TDC 3000 power infrastructure is the prerequisite. With the 10303/1/1 in service, operators gain uninterrupted access to real-time process values, alarm histories, and diagnostic data — enabling proactive maintenance scheduling, remote fault diagnosis without on-site visits, and seamless system expansion as new I/O points or communication nodes are added to the network.

Our 10303/1/1 units are sourced from verified industrial channels, functionally tested prior to shipment, and backed by a 12-month warranty. Global logistics via DHL and FedEx Express ensures rapid delivery to refineries, chemical plants, power generation facilities, and manufacturing sites worldwide.

Industrial Connectivity FAQ

Q1: Will the Honeywell 10303/1/1 cause communication latency on the UCN or LCN?
A: No. The 10303/1/1 is a passive power distribution module — it does not process or route data packets. Its role is to provide stable, conditioned DC power to active communication modules. A properly functioning 10303/1/1 eliminates power-induced noise and voltage sag that can cause retransmissions and latency on the UCN and LCN networks.

Q2: Is the 10303/1/1 compatible with all TDC 3000 cabinet configurations and communication modules?
A: Yes. The 10303/1/1 is designed for the standard TDC 3000 cabinet backplane and is compatible with the full range of TDC 3000 modules including Process Manager I/O, Application Modules, Highway Gateway Modules, and Network Interface Modules. Always verify cabinet revision and power bus specifications with your system documentation before installation.

Q3: How does a failing power supply module affect SCADA and HMI system stability?
A: A degraded power supply module can cause intermittent resets of I/O and communication modules, resulting in data gaps in the SCADA historian, false alarms on the HMI, and loss of real-time visibility into critical process variables. Proactive replacement of aging power supply modules is a standard practice in TDC 3000 lifecycle management programs.

Q4: What testing and warranty coverage is provided with the 10303/1/1?
A: Every 10303/1/1 unit is functionally tested prior to shipment to verify output voltage stability and load regulation performance. All units are covered by a 12-month warranty against manufacturing defects and functional failures. In-stock units are available for immediate dispatch via DHL or FedEx Express to minimize plant downtime.
