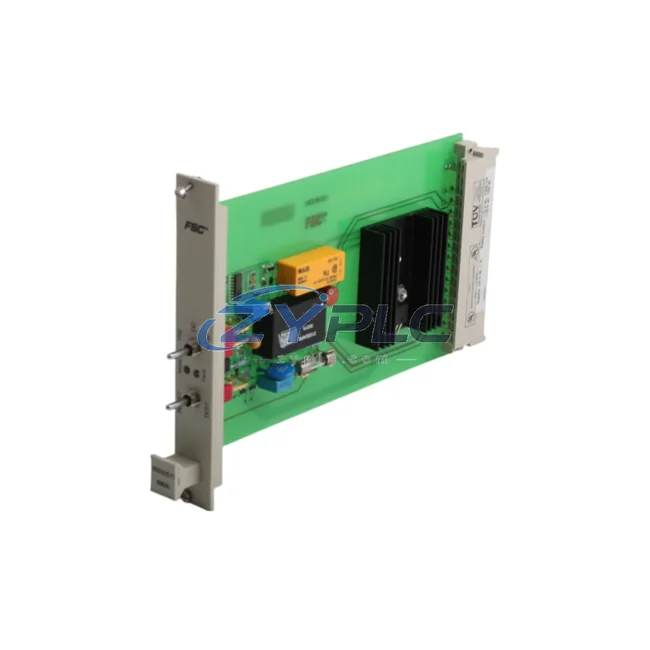

Honeywell 10310/2/1 Digital Output Module for FSC

Honeywell 10310/2/1 Digital Output Module for FSC

In a fully integrated safety and process control environment, every module must perform not as a standalone component but as a precisely coordinated node within a layered automation architecture. The Honeywell 10310/2/1 Digital Output Module is engineered specifically for this purpose — serving as a critical output execution element within the Honeywell FSC (Fail-Safe Controller) safety system platform. Designed to interface seamlessly with the FSC’s redundant CPU and I/O bus infrastructure, this module ensures that control signals are delivered to field actuators with the reliability, speed, and determinism that safety-critical applications demand.

The 10310/2/1 occupies the output layer of the FSC control hierarchy, receiving validated logic commands from the FSC processor and converting them into discrete electrical signals that drive solenoid valves, motor starters, relay coils, and other final control elements. Its role is not isolated — it functions as part of a coordinated signal chain that begins at the sensor level, passes through the FSC 10110/2/1 Digital Input Module for field signal acquisition, is processed by the FSC 10005/1/1 Central Processing Unit, and is then dispatched through the output layer where the 10310/2/1 executes the final control action. This end-to-end signal integrity is what defines the FSC platform’s reputation in safety-instrumented system (SIS) applications.

Within the FSC rack architecture, the 10310/2/1 is installed on the FSC 10002/1/1 or 10002/2/1 backplane, which provides both power distribution and high-speed I/O bus communication between modules. The backplane’s modular design allows engineers to configure output channel density according to the specific demands of each safety loop, while maintaining the physical and electrical isolation required by IEC 61508 and IEC 61511 standards. The module draws regulated DC power from the FSC 10001/1/1 Power Supply Module, which supports redundant power input configurations to eliminate single points of failure at the power layer.

For applications requiring enhanced availability, the 10310/2/1 supports deployment in redundant output configurations alongside companion modules, ensuring that a single module failure does not interrupt the safety function. This redundancy architecture is particularly valuable in high-demand SIL 2 and SIL 3 applications found in oil and gas processing, chemical plant emergency shutdown systems, and power generation turbine protection systems. The FSC platform’s diagnostic coverage — including internal self-test routines and cross-channel comparison — continuously monitors the 10310/2/1’s output drivers, reporting fault conditions to the FSC 10050/1/1 Communication Module for upstream SCADA or DCS integration.

Communication between the FSC system and plant-level control networks is handled through the 10050/1/1 or compatible Modbus/Profibus gateway modules, enabling the 10310/2/1’s output status and diagnostic data to be visible at the operator workstation or integrated into a broader Honeywell Experion PKS or TPS distributed control system. This system integration capability allows maintenance engineers to monitor output channel health, acknowledge faults, and initiate proof tests without interrupting the safety function — a critical requirement for high-availability process plants operating under continuous production schedules.

From an engineering commissioning perspective, the 10310/2/1 supports loop-back testing and forced output modes that allow technicians to verify field wiring continuity and actuator response during pre-startup acceptance testing (PSAT). These features reduce commissioning time significantly, particularly in large-scale installations where hundreds of output channels must be verified before plant startup. The module’s clearly labeled terminal blocks and LED status indicators further simplify field troubleshooting, allowing maintenance personnel to identify open-circuit, short-circuit, or supply fault conditions at a glance without requiring specialized diagnostic tools.

Long-term maintainability is a defining characteristic of the FSC platform, and the 10310/2/1 is designed with this in mind. Its hot-swap capability — where supported by the system configuration — allows module replacement without de-energizing the entire safety system, minimizing process downtime during corrective maintenance. Spare module inventory management is simplified by the module’s standardized form factor, which is compatible across multiple FSC rack generations. ZYPLC maintains ready stock of the 10310/2/1 to support urgent replacement requirements, backed by a warranty terms confirmed during quotation covering manufacturing defects and functional performance, ensuring that your safety system remains operational and compliant throughout the warranty period.

Product Specification Table

System Compatibility Notes

The 10310/2/1 does not operate in isolation — its value is realized through its integration with the full FSC system architecture. At the processing layer, the FSC 10005/1/1 Central Processing Unit executes the safety logic and generates the output commands that the 10310/2/1 acts upon. Input data originates from the FSC 10110/2/1 Digital Input Module, which acquires field sensor signals and feeds them into the CPU’s logic solver. Analog process variables are handled by the FSC 10210/2/1 Analog Input Module, providing the CPU with continuous process measurements for more complex safety functions.

The physical infrastructure that ties these modules together is the FSC 10002/2/1 I/O Backplane, which provides the high-speed internal bus and power rails that allow the CPU, input modules, and output modules — including the 10310/2/1 — to exchange data with deterministic timing. Power integrity across the rack is maintained by the FSC 10001/1/1 Power Supply Module, with redundant supply configurations eliminating power as a single point of failure.

For plant-level integration, the FSC 10050/1/1 Communication Module bridges the FSC system to Modbus RTU, Modbus TCP, or Profibus DP networks, making the 10310/2/1’s output status and diagnostic information available to SCADA systems, historian servers, and operator workstations running Honeywell Experion PKS or legacy TPS/TDC 3000 platforms. In applications requiring operator interaction, Honeywell HC900 HMI or third-party SCADA terminals provide the human-machine interface layer, displaying output channel status and enabling authorized personnel to acknowledge alarms or initiate manual overrides within the safety system’s permit-to-bypass framework.

At the field execution layer, the 10310/2/1’s output channels drive solenoid valve actuators, motor control center (MCC) starters, and safety relay modules such as the Honeywell SRM series or equivalent IEC 61508-certified relay interfaces, completing the signal chain from sensor to final control element with full traceability and diagnostic visibility at every layer.

Industrial Application Notes

The Honeywell 10310/2/1 finds application across a broad range of industries where safety-instrumented systems are mandated by regulatory requirements or process risk assessments. In oil and gas processing, the module serves as the output execution element in emergency shutdown (ESD) systems, driving wellhead shutdown valves, blowdown valves, and deluge system actuators in response to high-pressure or gas detection events. Its SIL 2/3 capability ensures compliance with IEC 61511 functional safety requirements for hydrocarbon processing facilities.

In petrochemical and chemical plants, the 10310/2/1 is deployed in burner management systems (BMS) and process shutdown systems, where reliable output execution is essential to prevent runaway reactions or uncontrolled releases. The module’s diagnostic coverage and redundant output capability support the high proof-test intervals required in continuous process environments where unplanned shutdowns carry significant economic consequences.

For power generation applications — including gas turbine, steam turbine, and combined-cycle plants — the 10310/2/1 integrates into turbine protection systems, controlling trip solenoids, lube oil system actuators, and cooling system valves. Its deterministic response time ensures that protective actions are executed within the required safety response time (SRT) defined in the safety requirements specification (SRS).

In water and wastewater treatment facilities, the module controls pump motor starters, valve actuators, and chemical dosing systems within FSC-based safety and process control architectures. Its robust operating temperature range and sealed module design make it suitable for the humid, chemically aggressive environments typical of water treatment installations. Mining and metallurgical operations similarly rely on the 10310/2/1 for conveyor safety systems, crusher protection, and smelter process control, where the combination of safety integrity and long-term module availability is critical to maintaining production continuity.

Product Compatibility FAQ

Q1: Is the Honeywell 10310/2/1 compatible with both older and newer FSC rack generations, and can it be mixed with other FSC I/O modules on the same backplane?
The 10310/2/1 is designed for the Honeywell FSC platform and is compatible with the FSC 10002/1/1 and 10002/2/1 backplanes. It can be installed alongside other FSC I/O modules — including digital input modules such as the 10110/2/1 and analog input modules such as the 10210/2/1 — on the same rack, provided the backplane slot assignments and I/O bus addressing are configured correctly in the FSC engineering tool. Always verify firmware compatibility between the CPU module and I/O modules when integrating modules from different production batches, and consult the FSC system manual for slot assignment rules and maximum I/O channel counts per rack.

Q2: What redundancy configurations are supported for the 10310/2/1, and how does the FSC system manage output channel failover?
The FSC platform supports redundant output configurations where two 10310/2/1 modules are configured as a redundant pair, with the FSC CPU managing output voting logic to ensure that a single module failure does not result in a spurious trip or a failure to trip, depending on the safety function design. Failover is managed automatically by the FSC CPU’s output management logic, with fault conditions reported via the 10050/1/1 Communication Module to the plant SCADA or DCS. The specific redundancy architecture — 1oo2, 2oo3, or other voting configurations — must be defined in the safety requirements specification and implemented in the FSC application program by a qualified functional safety engineer.

Q3: What does the warranty terms confirmed during quotation cover for the Honeywell 10310/2/1, and what support is available for long-term spare parts management?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional performance failures under normal operating conditions as specified in the Honeywell FSC system documentation. Warranty claims are processed through ZYPLC’s technical support team, reachable at plc.sales@zyplc.com or +86 19859288691. For long-term spare parts management, ZYPLC maintains ready stock of the 10310/2/1 and related FSC modules to support both planned maintenance schedules and urgent corrective replacement requirements, helping plant operators minimize safety system downtime and maintain compliance with their functional safety management system (FSMS) documentation.
