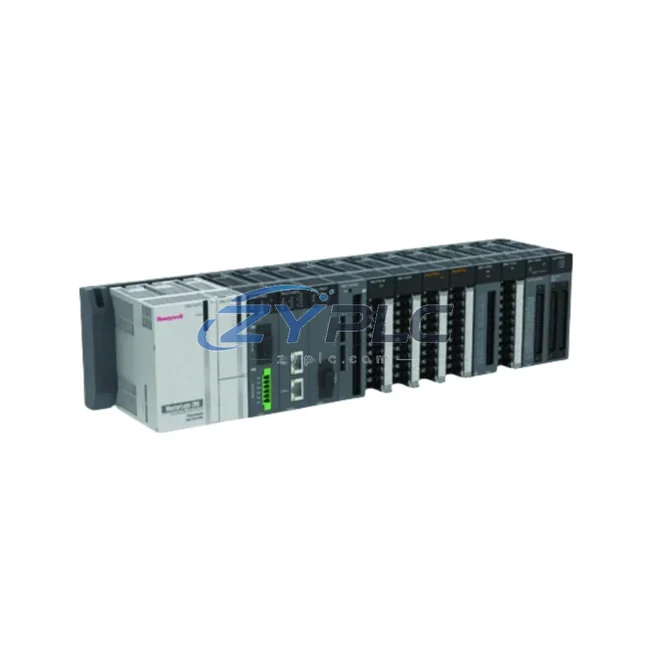

Honeywell 2MLQ-SS2A-CC Safety Module for MasterLogic

Honeywell 2MLQ-SS2A-CC Safety Module: Control System and system integration

The Honeywell 2MLQ-SS2A-CC is a dedicated safety module engineered for deployment within the MasterLogic programmable controller platform — a high-integrity, rack-based control architecture widely adopted across safety-critical industries including oil & gas, petrochemical processing, power generation, and advanced manufacturing. Rather than functioning as a standalone component, the 2MLQ-SS2A-CC is designed from the ground up to operate as a cohesive element within a layered automation system, where control integrity, signal determinism, and architectural redundancy are non-negotiable requirements.

In modern industrial control environments, safety instrumented systems (SIS) must be tightly coordinated with the basic process control system (BPCS) to achieve both operational efficiency and functional safety compliance. The 2MLQ-SS2A-CC fulfills this role by providing a certified safety execution layer that integrates seamlessly with the broader MasterLogic rack infrastructure, enabling engineers to build IEC 61508 and IEC 61511-compliant safety loops without sacrificing system coherence or diagnostic transparency.

Product Specification Table

System Compatibility Notes

The 2MLQ-SS2A-CC achieves its full value when positioned within a complete MasterLogic control system architecture. At the control layer, it operates alongside the MasterLogic CPU module — such as the 2MLQ-CPU11 or 2MLQ-CPU21 — sharing the rack backplane for deterministic, low-latency safety logic execution. The CPU coordinates process control tasks while the safety module independently monitors safety-critical I/O channels, ensuring that a fault in the BPCS layer does not compromise the SIS response path.

At the power layer, the 2MLQ-PS series power supply modules provide stable, regulated DC power to the rack, with redundant power configurations available to eliminate single points of failure. The 2MLQ-SS2A-CC benefits directly from this power architecture, as consistent voltage delivery is essential for maintaining the module’s internal watchdog timers and diagnostic cycles.

For I/O integration, the safety module interfaces with MasterLogic digital input modules (e.g., 2MLQ-DI series) and digital output modules (e.g., 2MLQ-DO series), enabling the collection of field signals from safety sensors — including emergency stop circuits, pressure switches, and flame detectors — and the actuation of final control elements such as solenoid valves and motor contactors. The signal flow from field device through I/O module to safety logic execution is fully traceable and auditable within the MasterLogic engineering environment.

At the network and communication layer, MasterLogic communication gateway modules — such as those supporting Modbus TCP, PROFIBUS DP, or EtherNet/IP — allow the safety system status to be reported upstream to SCADA platforms and distributed control systems (DCS) without creating a direct control path that could compromise safety integrity. This architecture supports the separation of safety and process networks mandated by IEC 61511.

For human-machine interface integration, the MasterLogic platform supports connectivity to Honeywell HMI terminals and third-party SCADA systems via standard industrial protocols, giving operators real-time visibility into safety loop status, bypass conditions, and diagnostic alarms generated by the 2MLQ-SS2A-CC. At the execution layer, the module’s output channels connect to safety relay modules and motor drive interlock circuits, ensuring that trip commands are executed with the speed and reliability required by the process safety time (PST) of the application.

The MasterLogic rack backplane itself serves as the physical and electrical backbone of this architecture, with the 2MLQ-SS2A-CC occupying a dedicated slot that provides both power and high-speed data exchange. Engineers can expand the system by adding additional I/O modules, communication cards, or redundant CPU modules to the same chassis, making the architecture scalable from small safety interlock systems to large, plant-wide safety networks.

Industrial Application Notes

The 2MLQ-SS2A-CC is suited for deployment across a broad range of industrial sectors where process safety and system reliability are paramount. In petrochemical and refinery applications, the module is used to implement emergency shutdown (ESD) systems that protect reactors, distillation columns, and storage tanks from overpressure, high-temperature, and leak events. Its deterministic safety logic execution ensures that trip actions are completed within the process safety time defined by the hazard and operability (HAZOP) study.

In power generation facilities — including thermal, hydroelectric, and combined-cycle plants — the 2MLQ-SS2A-CC supports turbine protection systems, boiler safety interlocks, and generator trip circuits. The module’s compatibility with the MasterLogic redundant controller architecture allows engineers to design fault-tolerant safety systems that remain operational even during planned maintenance or unexpected hardware failures.

For water and wastewater treatment plants, the module provides reliable safety interlocking for pump protection, chemical dosing systems, and high-level alarms in storage and treatment tanks. Its low power consumption and wide operating temperature range make it suitable for installation in outdoor control enclosures and remote pump stations.

In mining and metallurgical operations, the 2MLQ-SS2A-CC is applied to conveyor belt protection systems, crusher interlock circuits, and ventilation safety controls. The module’s robust design and compatibility with the MasterLogic platform’s diagnostic tools simplify commissioning in environments where access for maintenance is limited and system uptime is critical.

For packaging and discrete manufacturing lines, the module integrates with machine safety circuits — including light curtains, safety mats, and two-hand control devices — to implement Category 3 and Category 4 safety functions per ISO 13849. The MasterLogic architecture’s modular design allows safety functions to be added or reconfigured as production line layouts evolve, without requiring a complete system redesign.

Product Compatibility FAQ

Q1: Is the Honeywell 2MLQ-SS2A-CC compatible with existing MasterLogic racks and CPU modules already installed in my facility?
The 2MLQ-SS2A-CC is designed for integration within the MasterLogic rack-based platform and is compatible with the standard MasterLogic chassis and backplane architecture. Before installation, engineers should verify the firmware revision of the existing CPU module and confirm that the rack has an available slot with the correct backplane connector type. Honeywell’s MasterLogic system documentation provides a compatibility matrix that cross-references module hardware revisions with supported CPU firmware versions. If your installation involves a legacy MasterLogic rack, our technical team can assist with compatibility verification prior to shipment.

Q2: Can the 2MLQ-SS2A-CC be used in a redundant safety controller configuration, and what additional modules are required?
Yes. The MasterLogic platform supports redundant controller configurations in which two CPU modules operate in a primary/standby arrangement, with automatic bumpless transfer upon detection of a primary controller fault. The 2MLQ-SS2A-CC can be incorporated into this architecture by ensuring that the safety module is installed in a rack that is connected to both the primary and standby CPU modules via the backplane synchronization path. Additional components typically required for a redundant configuration include a redundant power supply module (2MLQ-PS series), a synchronization cable or backplane redundancy module, and appropriate I/O modules with dual-channel wiring for 1oo2 or 2oo3 voting logic. Our engineering team can provide a complete bill of materials for your specific redundancy architecture.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported for the 2MLQ-SS2A-CC?
All Honeywell 2MLQ-SS2A-CC modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost, with expedited processing for critical process applications. For long-term maintenance, ZYPLC maintains a dedicated inventory of MasterLogic series modules to support both planned preventive maintenance programs and emergency replacement requirements. We recommend that facilities operating safety-critical systems maintain a minimum of one spare 2MLQ-SS2A-CC module on-site, and our team can assist with spare parts planning and lifecycle management to ensure continued system availability beyond the initial warranty period.
