Honeywell 51109806-002 Coaxial Cable for TDC 3000

Honeywell 51109806-002 Coaxial Cable Module: Energy-Efficient Control and Production Line Optimization for TDC 3000 Automation

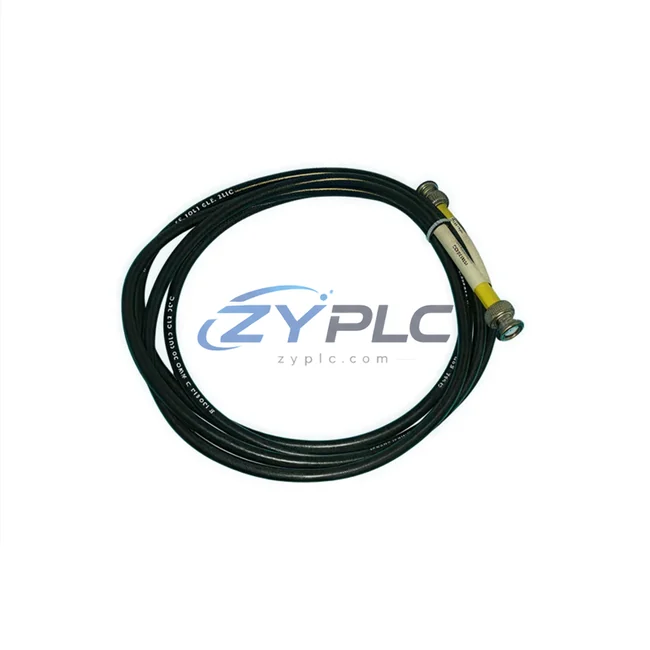

The Honeywell 51109806-002 is a precision-engineered coaxial cable module designed for the TDC 3000 Distributed Control System (DCS). In modern industrial facilities where energy efficiency and uptime are non-negotiable, the integrity of the communication backbone directly determines how effectively a plant can monitor, control, and optimize its energy consumption. This module serves as a critical link in the signal chain between field devices, I/O subsystems, and the central process controller — ensuring that every watt consumed by the automation system translates into productive output rather than wasted energy.

At ZYPLC, every 51109806-002 unit is sourced from verified supply channels, subjected to outgoing shipment testing, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for rapid fulfillment, minimizing procurement lead times for maintenance teams managing critical production assets.

Product Specification Table

System Compatibility and Application

The Honeywell 51109806-002 coaxial cable module operates within the TDC 3000’s Local Control Network (LCN) and Universal Control Network (UCN) infrastructure. These high-speed networks interconnect critical system nodes including the Honeywell High-Performance Process Manager (HPM), the Application Module (AM), and the History Module (HM) — all of which depend on clean, low-latency signal paths to execute control loops without unnecessary computational retries.

When coaxial cable integrity degrades, the TDC 3000’s network nodes begin generating retransmission requests. Each retransmission cycle consumes additional CPU cycles on the HPM and AM, increases scan time jitter, and ultimately causes the Honeywell Universal Station (US) operator interface to display delayed or stale process values. This cascade effect forces operators to make conservative, energy-inefficient decisions — holding motor speeds higher than necessary, maintaining wider temperature bands, or running redundant pumps as a precaution. Replacing a degraded cable with a verified 51109806-002 eliminates this hidden energy drain at its source.

In a fully integrated TDC 3000 environment, the 51109806-002 supports reliable data exchange between the Honeywell Data Hiway and field-level devices such as the Honeywell Smart Transmitter Interface Module (STIM) and Analog Input/Output (AI/AO) cards housed in the Process Manager I/O (PMIO) enclosures. Accurate, uninterrupted signal flow from these I/O subsystems enables the DCS to execute precise PID control loops — directly reducing unplanned downtime in motor-driven systems, heat exchangers, and compressor trains.

For plants that have integrated the TDC 3000 with modern condition monitoring overlays, the coaxial backbone also carries data to the Honeywell Experion PKS migration gateway, allowing legacy process data to feed into contemporary energy dashboards and predictive analytics platforms. Maintaining the physical integrity of this link — through components like the 51109806-002 — is therefore a prerequisite for any meaningful maintenance planning initiative at the DCS layer.

Maintenance and Replacement Notes

In continuous process industries such as refining and petrochemicals, the TDC 3000 DCS manages hundreds of control loops simultaneously — regulating flow rates, pressure differentials, temperature profiles, and motor drive commands across the entire plant. The quality of the coaxial communication layer directly affects how tightly these loops can be tuned.

A degraded or intermittent coaxial connection introduces latency into the control loop feedback path. When the HPM cannot receive timely feedback from field transmitters, it defaults to conservative control actions — widening deadbands, reducing integral gain, or triggering manual override alerts. The practical result is that motors run longer at higher loads, heat exchangers operate outside their optimal efficiency window, and compressors cycle more frequently than process demand requires. Each of these behaviors represents measurable, avoidable energy consumption.

By restoring signal integrity with a replacement Honeywell 51109806-002, maintenance teams enable the DCS to resume tight loop control. Tighter PID tuning translates directly into reduced motor runtime, lower peak demand charges, and improved production line throughput — all without any changes to the control strategy or process equipment. Plants operating on energy performance contracts or ISO 50001 frameworks will find that communication layer maintenance is one of the highest-ROI interventions available at the DCS level.

Beyond operational stability, restoring coaxial link integrity reduces unplanned downtime. Network faults in the TDC 3000 LCN can trigger controller failover events, forcing the system into a degraded operating mode that limits the number of active control loops. Preventive replacement of aging coaxial modules — using availability confirmed by RFQ, tested components like the 51109806-002 — is a core element of any predictive maintenance strategy for legacy DCS platforms. With a warranty terms confirmed during quotation and pre-shipment testing at ZYPLC, procurement teams can plan replacements with confidence, maintaining spare parts inventory without the risk of receiving untested or counterfeit components.

Product Sourcing FAQ

Q1: How does replacing the 51109806-002 coaxial cable module contribute to operational stability?
A degraded coaxial link increases network retransmissions and control loop latency in the TDC 3000 DCS. This forces the HPM to execute conservative control actions, causing motors, pumps, and compressors to run less efficiently. Restoring signal integrity with a verified 51109806-002 allows PID loops to be tuned more tightly, directly reducing unnecessary energy consumption across motor-driven and thermal process equipment.

Q2: Is the Honeywell 51109806-002 compatible with both LCN and UCN network segments?
Yes. The 51109806-002 is designed for use within the Honeywell TDC 3000 coaxial network infrastructure, which spans both the Local Control Network (LCN) and Universal Control Network (UCN) segments. It is compatible with HPM, AM, HM, and Universal Station nodes. For specific topology requirements, consult your TDC 3000 network configuration documentation or contact ZYPLC technical support.

Q3: What is the recommended replacement interval, and how should I evaluate whether my current cable module needs replacement?
Honeywell TDC 3000 coaxial components in continuous-duty industrial environments typically show performance degradation after 10–15 years of service. Indicators include increased LCN error counts in the system status display, intermittent node dropouts, and elevated retransmission rates visible in the network diagnostic utilities. Proactive replacement during scheduled turnarounds — using pre-tested before shipment where applicable units — is strongly recommended over reactive replacement during unplanned outages.

Q4: What testing and warranty coverage does ZYPLC provide for the 51109806-002?
Every 51109806-002 unit shipped by ZYPLC undergoes pre-shipment functional verification to confirm electrical continuity and connector integrity. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or refund support. Units are sourced from verified supply channels to ensure authenticity and traceability.
