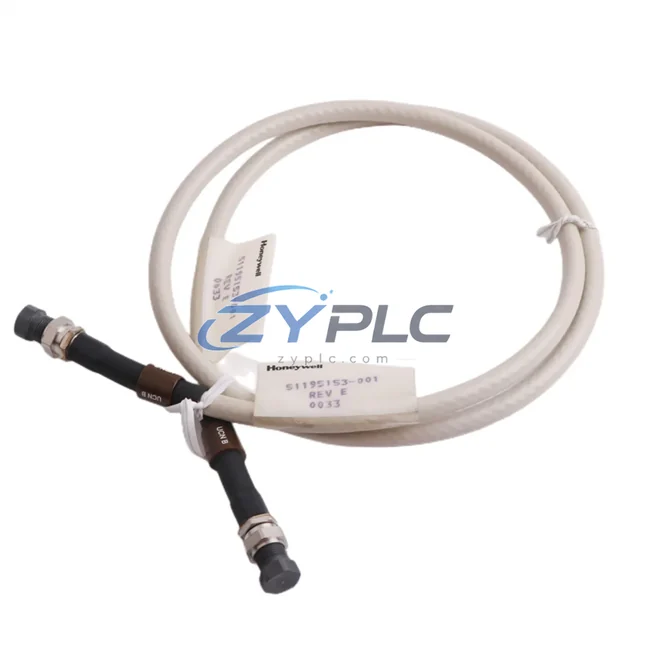

Honeywell 51195153-001 Coaxial Drop Cable for C300

Honeywell 51195153-001 Coaxial Drop Cable: Industrial Data Link for C300 Smart Factory Connectivity

In modern distributed control systems, the physical integrity of every data link determines the reliability of the entire automation network. The Honeywell 51195153-001 Coaxial Drop Cable is a precision-engineered communication cable designed specifically for the Experion PKS C300 Controller architecture, serving as the critical physical medium that connects field devices, remote I/O assemblies, and control nodes within a unified, high-availability industrial network. Far from being a passive component, this coaxial drop cable is a system-enabling element that directly influences signal fidelity, network latency, and long-term communication stability across the entire control hierarchy.

The C300 platform is built around a redundant, high-speed control network that demands consistent impedance matching, low signal attenuation, and mechanical durability in harsh industrial environments. The 51195153-001 cable is engineered to meet these exacting requirements, providing a stable coaxial connection between the C300 Controller Module and its associated IOTA (I/O Termination Assembly) backplanes. This connection is the backbone of real-time data exchange between the controller and the field I/O subsystem, ensuring that analog signals from transmitters, digital states from limit switches, and command outputs to actuators are transmitted without degradation or timing errors.

Compatibility & Integration Notes

Connected Automation Data Flow

The 51195153-001 Coaxial Drop Cable operates at the intersection of the control layer and the I/O layer, making it indispensable to the data flow architecture of any C300-based system. In a typical Experion PKS deployment, the C300 Controller Module (51309276-175) communicates with multiple IOTA backplane assemblies through a series of these drop cables, each carrying real-time process data between the controller and its associated I/O modules. The quality and integrity of this cable directly determines the scan cycle accuracy of the entire I/O subsystem.

On the field side, AI (Analog Input) modules such as the 51305890-175 collect 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors distributed across the process plant. These signals are digitized and passed upward through the IOTA backplane, across the 51195153-001 coaxial link, and into the C300 controller for real-time processing. Simultaneously, AO (Analog Output) modules receive setpoint commands from the controller and drive control valves and variable frequency drives, completing the closed-loop control cycle. Any degradation in the coaxial cable — whether from connector wear, impedance mismatch, or physical damage — introduces latency or data errors that propagate through the entire control loop.

At the network layer, the C300 platform integrates with Fault Tolerant Ethernet (FTE) switches, which provide redundant network paths between controllers, Experion PKS servers, and HMI workstations running the Experion operator interface. The 51195153-001 cable ensures that the local I/O data collected at the field level is accurately and promptly delivered to the C300 controller, which then forwards processed data upstream via FTE to the SCADA and historian layers. This seamless data path — from field sensor through coaxial drop cable, through the C300 controller, through FTE network, to the Experion server — is the foundation of real-time process visibility and control.

In redundant controller configurations, two C300 modules operate in primary/backup mode, with both units connected to the same IOTA backplane via individual 51195153-001 drop cables. This dual-cable architecture ensures that a failure of either the primary controller or its associated cable does not interrupt I/O scanning or process control. The backup controller immediately assumes control without process upset, a critical requirement in continuous process industries such as refining, petrochemicals, and power generation. Communication gateway modules and Profibus DP interface cards installed within the same cabinet further extend the network reach to legacy field devices, ensuring that older instrumentation can be integrated into the modern Experion PKS architecture without protocol barriers.

For remote I/O applications, the 51195153-001 cable connects local IOTA assemblies to C300 controllers located in central control rooms, extending the I/O network across large process units. Combined with Series C I/O modules for temperature, pressure, and discrete signal acquisition, this cable enables a distributed I/O topology that reduces field wiring costs while maintaining the real-time performance required for closed-loop control. Edge gateway devices installed at the field junction boxes can aggregate data from multiple IOTA nodes and forward it to cloud-based analytics platforms, supporting the digital transformation initiatives of modern smart factories.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate on incompatible protocols or physically disconnected networks, preventing plant-wide visibility and coordinated control. The Honeywell 51195153-001 Coaxial Drop Cable directly addresses the physical layer of this problem by providing a reliable, standardized connection medium within the C300 I/O architecture.

In plants where aging DCS infrastructure has been incrementally upgraded, mismatched or deteriorated coaxial cables are a common source of intermittent communication faults. These faults manifest as sporadic I/O scan failures, controller alarms, and unexplained process deviations — symptoms that are difficult to diagnose without understanding the physical layer. Replacing worn or non-standard cables with genuine Honeywell 51195153-001 units eliminates this source of variability, restoring consistent data flow between the controller and its I/O subsystem.

For plants pursuing production line transparency and real-time OEE monitoring, the integrity of the I/O data path is non-negotiable. Accurate, low-latency data from field instruments — delivered reliably through the 51195153-001 coaxial link — feeds the Experion PKS historian and SCADA displays that operations teams rely on for production decisions. When this data path is compromised, operators lose visibility into critical process parameters, leading to suboptimal control decisions and increased risk of process upsets.

System expansion is another area where the 51195153-001 cable plays a practical role. As plants add new process units or upgrade existing ones, additional IOTA backplanes and I/O modules are integrated into the C300 architecture. Each new backplane requires a properly specified coaxial drop cable to connect to the controller. Using the correct Honeywell-specified cable ensures that the expanded I/O network meets the same performance standards as the original installation, avoiding the compatibility issues that arise from using generic or substitute cables. ZYPLC maintains ready stock of the 51195153-001 to support both planned expansion projects and urgent maintenance requirements, with all units subject to pre-shipment functional testing and covered by a warranty terms confirmed during quotation.

Industrial Connectivity FAQ

Q1: Will the Honeywell 51195153-001 introduce communication latency in a high-speed C300 I/O scan environment?
A: No. The 51195153-001 is engineered to the impedance and signal integrity specifications of the C300 control network, ensuring that coaxial transmission does not add measurable latency to the I/O scan cycle. Genuine Honeywell cables maintain the electrical characteristics required for the C300’s real-time communication protocol, whereas non-specified substitutes may introduce reflections or attenuation that degrade scan performance.

Q2: Is the 51195153-001 compatible with both standard and redundant C300 controller configurations?
A: Yes. The cable is used in both simplex and redundant C300 deployments. In redundant configurations, one cable connects the primary C300 module to the IOTA backplane and a second cable connects the backup module, providing independent physical paths for each controller. This dual-cable arrangement is essential for achieving the bumpless switchover performance that redundant C300 systems are designed to deliver.

Q3: How does ZYPLC verify the functional integrity of the 51195153-001 before shipment?
A: Every 51195153-001 unit supplied by ZYPLC undergoes pre-shipment inspection covering connector integrity, cable continuity, and impedance verification. Units are sourced from verified supply channels and stored under controlled conditions to prevent connector oxidation or cable degradation. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with technical support available for installation and commissioning queries.

Q4: Can the 51195153-001 be used to extend the I/O network to remote IOTA assemblies located outside the main control cabinet?
A: The 51195153-001 is specified for the standard drop cable connection between the C300 controller and its directly associated IOTA backplane within the control cabinet or marshalling enclosure. For remote I/O applications requiring longer cable runs or different physical topologies, consult the Experion PKS C300 hardware documentation for the appropriate cable specifications and maximum distance guidelines. ZYPLC’s technical team can assist in identifying the correct cable assembly for extended I/O network configurations.
