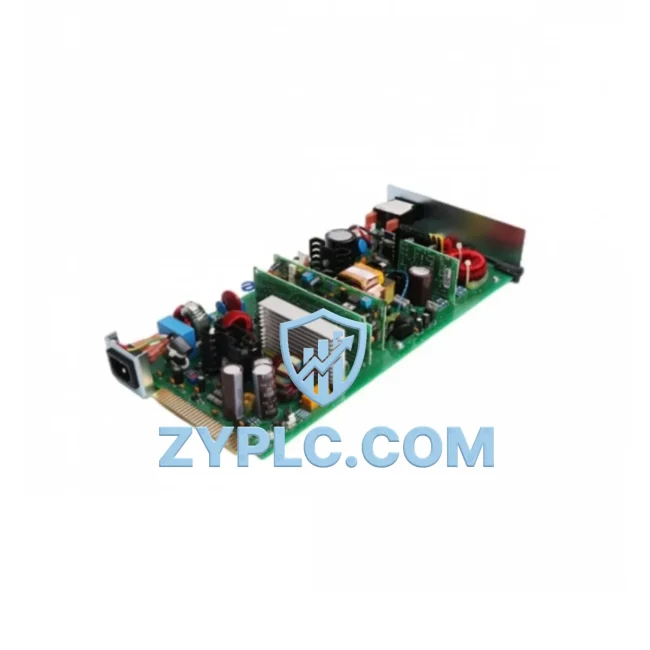

Honeywell 51196655-100 ACX633 Industrial Power Supply Module for TDC 3000 Systems

Honeywell 51196655-100 ACX633: Industrial Power Data Link for TDC 3000 Smart Factory Systems

The Honeywell 51196655-100 ACX633 Power Supply Module is a mission-critical component engineered for the TDC 3000 Distributed Control System (DCS) — one of the most widely deployed process automation platforms in the oil & gas, chemical, refining, and power generation industries. As the backbone of stable field-level power distribution, the ACX633 ensures that every node in your control network — from field instruments and remote I/O racks to PLC controllers, HMI workstations, and SCADA gateways — receives clean, regulated power without interruption.

In modern smart factory architectures, power integrity is inseparable from data integrity. A voltage fluctuation or power rail instability at the module level can cascade into communication dropouts across the entire TDC 3000 network, disrupting real-time data acquisition, triggering false alarms in SCADA systems, and breaking the data flow between field devices and the upper control layer. The 51196655-100 ACX633 is designed to eliminate these risks, providing the stable power foundation that industrial connectivity depends on.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the role of the Honeywell 51196655-100 ACX633 requires mapping it within the full industrial data flow of a TDC 3000 installation. At the field level, process sensors — including pressure transmitters, flow meters, temperature RTDs, and level instruments — continuously generate analog and digital signals. These signals are collected by Honeywell HLAI (High-Level Analog Input) cards and LLAI (Low-Level Analog Input) modules housed in the same TDC 3000 I/O racks where the ACX633 provides regulated power.

From the I/O layer, conditioned data travels upward through the Honeywell HPM (High-Performance Process Manager) — the core controller of the TDC 3000 system — which executes control logic, PID loops, and sequence programs. The HPM communicates over the UCN (Universal Control Network), a high-speed coaxial token-passing network that links process managers, history modules, and application nodes. Stable power from the ACX633 is essential here: any power instability in the HPM rack directly affects UCN communication timing and data throughput.

At the supervisory layer, Honeywell GUS (Global User Station) and US (Universal Station) HMI consoles receive real-time process data from the LCN (Local Control Network), displaying live trends, alarm states, and operator graphics. These stations depend on uninterrupted data flow from the field — a flow that originates with stable power delivery at the module level. Alongside HMI, Honeywell PHD (Process Historian Database) servers archive time-series data for long-term analysis, regulatory compliance, and remote diagnostics.

For plants integrating TDC 3000 with modern SCADA platforms or MES systems, Honeywell Experion PKS gateways and OPC DA/UA servers bridge legacy TDC 3000 data into Ethernet-based supervisory networks. In these hybrid architectures, the ACX633 continues to serve as the power foundation for legacy I/O and control modules that feed data into the modern network layer. Additionally, Honeywell FSC (Fail-Safe Controller) safety system modules — often co-located in the same control room infrastructure — rely on the same power distribution standards that the ACX633 upholds.

For remote monitoring and diagnostics, edge gateways aggregate TDC 3000 process data and transmit it via industrial Ethernet or fiber optic links to cloud-based SCADA dashboards. The reliability of this entire data chain — from sensor signal to cloud dashboard — is anchored by the power stability that the 51196655-100 ACX633 delivers at the rack level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to move process data freely between field devices, control systems, and upper-layer management platforms. In TDC 3000 installations, this isolation often stems not from software limitations but from hardware instability: aging power supply modules that introduce noise, voltage sag, or intermittent dropouts that corrupt communication frames on the backplane bus.

The Honeywell 51196655-100 ACX633 directly addresses this by restoring the power integrity that the TDC 3000 backplane requires for reliable module-to-module communication. When the power supply is stable, I/O cards report accurately, process managers execute control loops without interruption, and communication processors maintain their network connections — eliminating the phantom alarms, data gaps, and communication timeouts that plague sites running degraded power modules.

For plants pursuing production line transparency and digital transformation, replacing a failing ACX633 with a verified, tested unit is often the first step toward restoring full SCADA visibility. Once the power layer is stable, protocol gateways can reliably bridge TDC 3000 data into modern OPC UA, Modbus TCP, or PROFINET networks — enabling real-time KPI dashboards, predictive maintenance analytics, and remote operator access without requiring a full DCS migration.

System expansion is equally supported: as plants add new I/O racks, remote process managers, or additional UCN nodes, the ACX633 provides the scalable power infrastructure that new modules require. Every unit supplied by ZYPLC undergoes pre-shipment functional testing, ensuring that the module powers up correctly, meets voltage regulation specifications, and is ready for immediate rack installation — minimizing commissioning time and reducing the risk of installation-related failures.

Industrial Connectivity FAQ

Q1: Will the Honeywell 51196655-100 ACX633 cause communication delays in my TDC 3000 network?
A: No. The ACX633 is a power supply module, not a communication processor, so it does not introduce latency into the TDC 3000 data path. Its role is to provide stable, regulated DC power to the backplane, which actually reduces communication errors caused by power-related noise or voltage instability. A properly functioning ACX633 supports consistent UCN and LCN communication timing.

Q2: Is the 51196655-100 ACX633 compatible with both TDC 3000 and Experion PKS migration environments?
A: Yes. The ACX633 is designed for the TDC 3000 hardware platform, and TDC 3000 I/O and control modules are commonly retained during phased Experion PKS migrations. The ACX633 continues to power legacy TDC 3000 racks that remain in service alongside new Experion controllers, making it a key component in hybrid migration architectures.

Q3: How does ZYPLC ensure network stability after installing a replacement ACX633?
A: Every Honeywell 51196655-100 ACX633 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify power output, voltage regulation, and connector integrity. This ensures the module is ready for immediate installation without requiring additional bench testing. Combined with our 12-month warranty, you can commission the replacement with confidence that the unit meets original Honeywell specifications.

Q4: Can the ACX633 support system expansion when adding new TDC 3000 I/O racks or UCN nodes?
A: Yes. The ACX633 is designed to power TDC 3000 rack assemblies that may include additional I/O cards, communication modules, or process manager blades. When expanding your control system — whether adding remote I/O capacity, new UCN nodes, or additional HPM controllers — the ACX633 provides the stable power foundation that new modules require for reliable operation and network communication.
