Honeywell 51196694-300 Industrial HMI Keypad for TDC 3000 Systems

Honeywell 51196694-300 Industrial HMI Keypad: Precision Data Link for TDC 3000 DCS Networks

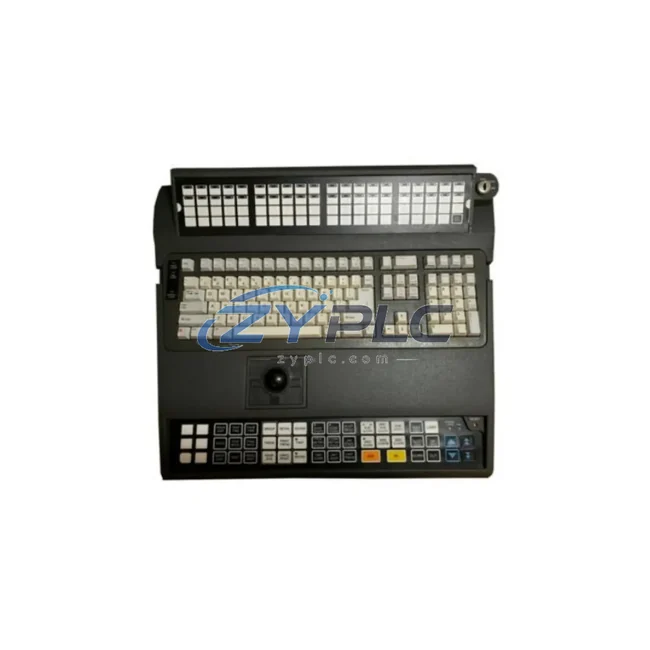

The Honeywell 51196694-300 is a purpose-built HMI Keypad engineered for seamless operator interaction within the Honeywell TDC 3000 Distributed Control System architecture. In modern smart factory environments, the integrity of the human-machine interface is not merely a convenience — it is the critical junction where operator commands translate into real-time process adjustments across the entire industrial network. This keypad serves as the tactile gateway between plant personnel and the underlying automation infrastructure, enabling precise data entry, alarm acknowledgment, setpoint modification, and system navigation across complex DCS topologies.

Within a TDC 3000 installation, the 51196694-300 interfaces directly with the Honeywell Universal Station (US) and Enhanced Universal Station (EUS) operator consoles, forming the front-end input layer of a broader data flow chain. Operator commands entered through this keypad propagate through the Local Control Network (LCN) — Honeywell’s proprietary high-speed token-passing network — to reach Process Managers, Advanced Process Managers, and High-Performance Process Managers distributed across the plant floor. This LCN backbone, operating at 5 Mbps with deterministic communication, ensures that every keystroke translates into a time-stamped, auditable control action within the DCS historian and SCADA layer.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the role of the Honeywell 51196694-300 requires mapping its position within the full automation data chain. At the field level, process variables — temperature, pressure, flow, and level — are captured by transmitters and smart sensors connected to Honeywell Process Manager (PM) and Advanced Process Manager (APM) modules via the Data Hiway (DH). These field controllers execute regulatory and advanced control strategies, continuously updating process values to the LCN.

The operator, working at a Honeywell Universal Station equipped with the 51196694-300 keypad, interacts with live process graphics, trend displays, and alarm summaries rendered by the station’s display system. When an operator enters a new setpoint or acknowledges a critical alarm, the 51196694-300 captures that input and routes it through the LCN to the relevant Process Manager or High-Performance Process Manager (HPPM), which then adjusts the output to the final control element — a control valve, variable frequency drive, or motor starter — in real time.

Above the LCN, the Honeywell History Module (HM) and Application Module (AM) aggregate process data for long-term trending, batch reporting, and advanced calculations. This data is further accessible to plant-level SCADA systems and Plant Information Management Systems (PIMS) via the Plant Network gateway, enabling enterprise-wide visibility of production KPIs. The 51196694-300 keypad, while a physical input device, is therefore an integral node in this end-to-end data architecture — from field sensor to boardroom dashboard.

In multi-console TDC 3000 installations, the Honeywell Network Interface Module (NIM) bridges the LCN to external Ethernet-based systems, allowing modern OPC DA/UA servers to consume real-time process data alongside legacy DCS operations. Maintenance teams leveraging Honeywell PlantScape or Experion PKS migration pathways will find the 51196694-300 compatible with hybrid architectures during phased modernization projects, preserving existing operator workflows while new control layers are introduced incrementally.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is the fragmentation of process data across incompatible systems — what engineers commonly call the data island problem. A TDC 3000 installation that lacks properly functioning HMI components, such as a degraded or failed operator keypad, immediately creates an operational blind spot. Operators lose the ability to interact with live process data, acknowledge alarms, or modify control parameters, effectively isolating that console from the plant’s real-time decision-making loop.

The Honeywell 51196694-300 directly addresses this risk by restoring full operator interface capability to the Universal Station or Enhanced Universal Station. With a verified replacement unit in service, the console resumes its role as a fully integrated node on the LCN, re-establishing bidirectional data flow between the operator and all connected Process Managers, Application Modules, and History Modules.

For plants pursuing production line transparency and remote monitoring objectives, maintaining a functional HMI layer is non-negotiable. SCADA systems and MES platforms depend on operator-confirmed data — alarm acknowledgments, manual entries, and setpoint changes — to maintain accurate production records. A failed keypad introduces gaps in the audit trail and can trigger compliance issues in regulated industries such as oil and gas, pharmaceuticals, and power generation.

System expansion is equally supported: as TDC 3000 installations grow to incorporate additional Universal Stations or migrate toward hybrid Experion PKS architectures, having a reliable inventory of tested 51196694-300 keypads ensures that new operator consoles can be commissioned without delay. ZYPLC maintains availability confirmed by RFQ availability of this component, with every unit subjected to functional testing prior to dispatch, backed by a warranty terms confirmed during quotation and global logistics via DHL and FedEx.

Industrial Connectivity FAQ

Q1: Is the Honeywell 51196694-300 compatible with both the Universal Station and Enhanced Universal Station?
Yes. The 51196694-300 HMI Keypad is designed for use with both the Honeywell Universal Station (US) and Enhanced Universal Station (EUS) within TDC 3000 DCS installations. It integrates directly with the console’s input architecture and communicates over the Local Control Network (LCN) without requiring additional protocol conversion hardware.

Q2: How does this keypad affect network stability and communication latency in a TDC 3000 system?
The 51196694-300 is a passive input device from the network’s perspective — it does not introduce additional network load or latency to the LCN. The LCN’s deterministic token-passing protocol ensures that operator commands entered via the keypad are transmitted with consistent, bounded latency, maintaining the real-time integrity of the DCS control loop.

Q3: Can this unit be used during a phased migration from TDC 3000 to Experion PKS?
Yes. During hybrid migration phases where TDC 3000 Universal Stations operate alongside Experion PKS nodes, the 51196694-300 continues to function normally on the LCN. Operators can maintain existing workflows on legacy consoles while new Experion stations are commissioned in parallel, ensuring zero disruption to production continuity.

Q4: What testing and warranty coverage does ZYPLC provide for the 51196694-300?
Every Honeywell 51196694-300 unit supplied by ZYPLC undergoes functional testing prior to dispatch to verify keypad response, interface integrity, and compatibility with TDC 3000 console hardware. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Expedited global shipping is available via DHL and FedEx, with typical lead times confirmed at the time of order.
