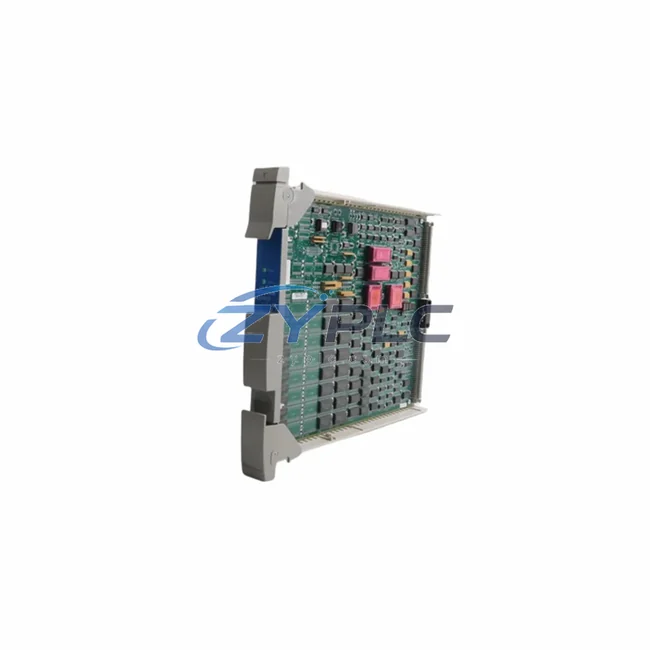

Honeywell 51201602-100 Pulse Input for TDC 3000

Honeywell 51201602-100 Pulse Input for TDC 3000: Compatibility and Replacement Notes

The Honeywell 51201602-100 is a Pulse Input Module engineered for seamless integration within the TDC 3000 Total Distributed Control architecture. Rather than functioning as a standalone component, this module occupies a critical position in the signal acquisition layer of a multi-tier industrial automation system. Its role spans from field-level pulse signal conditioning through to high-level process data delivery at the supervisory and historian layers, making it an indispensable element in any TDC 3000-based control strategy.

In modern distributed control environments, the integrity of pulse-based measurement — whether from turbine flow meters, positive displacement meters, or rotating machinery encoders — depends entirely on the quality and reliability of the input module that receives and processes those signals. The 51201602-100 is designed to meet these demands with precision, offering stable pulse counting, frequency measurement, and totalization functions that feed directly into the TDC 3000 process database. This data is then consumed by the Universal Control Network (UCN) and made available to the Application Module (AM), History Module (HM), and operator consoles running the GUS (Global User Station) interface.

Product Specification Table

System Compatibility Notes

The 51201602-100 does not operate in isolation. Its value is realized through tight coordination with the surrounding TDC 3000 architecture. At the controller level, the Honeywell PM (Process Manager) and HPM (High-Performance Process Manager) serve as the primary control execution engines that consume pulse input data from this module. The PM and HPM communicate over the UCN (Universal Control Network), a deterministic token-passing LAN that ensures time-critical data from the 51201602-100 reaches the control strategy without latency or collision.

Within the same card cage or adjacent I/O enclosure, the 51201602-100 typically coexists with complementary I/O modules such as the Honeywell 51304516-150 Analog Input Module and the 51309276-150 Analog Output Module, which handle 4–20 mA process signals from transmitters and control valves respectively. Together, these modules form a complete I/O subsystem that covers both analog and pulse-based measurement requirements for a single process unit.

For power distribution, the TDC 3000 card cage relies on dedicated Power Supply Modules such as the Honeywell 51190076-100, which provides regulated DC power to all installed I/O cards including the 51201602-100. Redundant power supply configurations are strongly recommended in critical applications such as refinery distillation columns or power generation turbine control, where a single power failure could result in unplanned shutdowns.

At the network layer, the Honeywell NIM (Network Interface Module) bridges the UCN to the plant-wide LCN (Local Control Network), enabling the pulse data collected by the 51201602-100 to be accessed by the Application Module (AM) for advanced regulatory and supervisory control, and by the History Module (HM) for long-term process data archiving and trend analysis. Operators interact with this data through the GUS (Global User Station) or US (Universal Station) consoles, where pulse-derived flow totals and frequency values are displayed in real time.

In redundant architectures, the TDC 3000 platform supports dual UCN configurations and redundant PM/HPM pairs. The 51201602-100 can be installed in redundant I/O configurations where a secondary module mirrors the primary, ensuring continuous pulse signal acquisition even during a module failure or planned maintenance event. This redundancy capability is particularly valuable in continuous process industries such as petrochemical plants, LNG terminals, and power utilities where process uptime is non-negotiable.

For field termination, the 51201602-100 interfaces with Honeywell FTA (Field Termination Assembly) panels, which provide a clean, organized connection point between field wiring and the I/O card. FTAs simplify commissioning, reduce wiring errors, and allow module replacement without disturbing field cables — a significant advantage during maintenance windows in live production environments.

Industrial Application Notes

Oil & Gas and Petrochemical: In upstream and midstream oil and gas facilities, the 51201602-100 is commonly deployed to measure flow rates from turbine meters on crude oil transfer lines, gas compressor stations, and pipeline metering skids. The pulse output from these meters is directly compatible with the module’s input circuitry, and the resulting totalized flow data feeds into custody transfer calculations managed by the TDC 3000 Application Module.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the 51201602-100 monitors rotational speed signals from turbine shaft encoders and fuel flow pulse transmitters. These signals are critical inputs to the turbine control strategy executed by the HPM, where precise frequency measurement directly influences governor response and load dispatch decisions.

Water and Wastewater Treatment: Municipal water treatment facilities use the 51201602-100 to totalize flow from electromagnetic and ultrasonic flow meters equipped with pulse outputs. The accumulated flow data supports regulatory reporting, chemical dosing calculations, and pump runtime management — all coordinated through the TDC 3000 control strategy.

Refining and Chemical Processing: In fluid catalytic cracking (FCC) units, hydrocracker feed systems, and chemical reactor feed trains, the 51201602-100 provides accurate pulse-based flow measurement that underpins mass balance calculations and feed-forward control strategies. Its optical isolation ensures that high-voltage transients common in heavy industrial environments do not propagate into the TDC 3000 system bus.

Mining and Metallurgy: Conveyor belt weighing systems and slurry pump flow measurement in mineral processing plants generate pulse signals that the 51201602-100 captures and delivers to the TDC 3000 process database. This data supports throughput optimization, energy efficiency monitoring, and predictive maintenance programs.

Product Compatibility FAQ

Q1: Is the Honeywell 51201602-100 compatible with both PM and HPM controllers in a TDC 3000 system?
Yes. The 51201602-100 is designed for the TDC 3000 I/O subsystem and is compatible with both the standard Process Manager (PM) and the High-Performance Process Manager (HPM). It communicates via the internal I/O bus within the card cage, and the pulse data it acquires is made available on the UCN for consumption by whichever controller is configured as the primary for that I/O group. No firmware changes or hardware modifications are required when migrating between PM and HPM configurations.

Q2: Can the 51201602-100 be replaced in a live TDC 3000 system without a full process shutdown?
In systems configured with redundant I/O and FTA (Field Termination Assembly) panels, the 51201602-100 can typically be replaced with minimal process disruption. The FTA panel retains field wiring connections while the module is swapped, and the redundant I/O path maintains signal continuity during the replacement. For non-redundant configurations, a brief I/O outage is expected during module exchange. All replacement modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are tested prior to shipment to ensure immediate operational readiness upon installation.

Q3: What long-term supply and maintenance considerations apply to the 51201602-100 in an aging TDC 3000 installation?
The TDC 3000 platform, while mature, remains operational in thousands of facilities worldwide, and spare parts availability is a legitimate concern for long-term asset management. ZYPLC maintains inventory of the 51201602-100 and related TDC 3000 I/O modules to support both emergency replacement and planned lifecycle management programs. Each unit is subject to functional testing and quality verification before dispatch. The warranty terms confirmed during quotation provides assurance of module integrity, and our technical team can advise on compatible replacement strategies, including migration pathways to Honeywell Experion PKS platforms where full TDC 3000 replacement is being considered.
