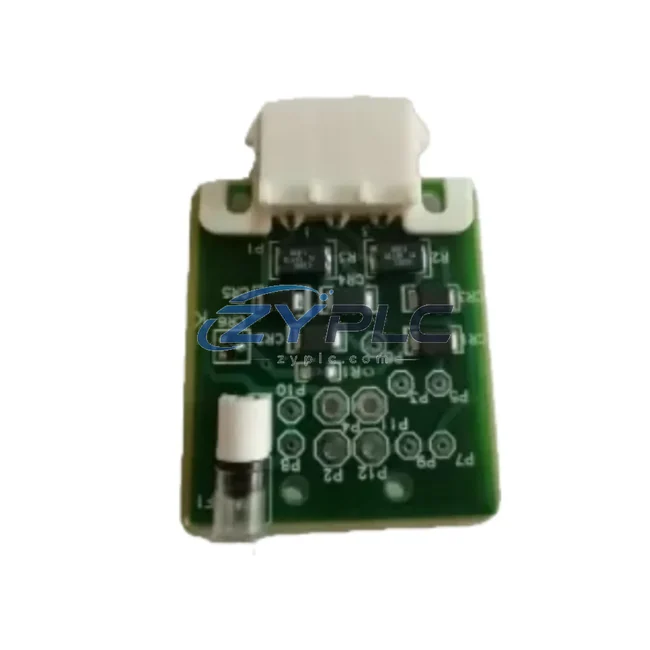

Honeywell 51202304-100 Digital Input Module for TDC 3000

Honeywell 51202304-100 Digital Input Module for TDC 3000: Compatibility and Replacement Notes

In modern distributed control system (DCS) deployments, every module must be evaluated not as a standalone component but as an integral node within a layered automation architecture. The Honeywell 51202304-100 Digital Input Module is purpose-built for the TDC 3000 platform, serving as a critical signal acquisition element that bridges field instrumentation with the high-performance process manager (HPM) control layer. Its role extends across the I/O layer, control layer, and communication layer, enabling seamless data flow from field devices to supervisory systems.

The 51202304-100 is designed to operate within the HPM I/O subsystem, where it collects discrete digital signals from field devices such as limit switches, valve position indicators, motor run contacts, and process interlocks. These signals are conditioned, isolated, and transmitted upstream to the HPM processor — typically a 51304453-150 High-Performance Process Manager CPU — which executes control logic, manages alarming, and coordinates output commands across the entire control loop. This tight integration between the digital input module and the HPM CPU ensures deterministic scan cycle performance and minimizes latency in safety-critical process environments.

Within the TDC 3000 rack architecture, the 51202304-100 is mounted on a standard HPM backplane such as the 51303940-150, which provides both power distribution and the internal I/O link bus. The backplane connects all I/O modules to the HPM processor through the 51304441-175 HPM I/O Link interface, ensuring synchronized data exchange across all installed modules. Power to the rack is supplied by the 51309218-175 Power Supply Module, which delivers regulated DC voltage with built-in redundancy support — a fundamental requirement for continuous process operations in petrochemical, power generation, and water treatment facilities.

Signal integrity and system consistency are further reinforced through the use of 51304685-100 Terminal Assembly units, which provide field wiring termination points that are mechanically and electrically compatible with the 51202304-100. These terminal assemblies allow field cables to be pre-wired and tested independently of the module itself, significantly reducing commissioning time and enabling hot-swap maintenance without disrupting adjacent I/O channels.

At the network layer, the TDC 3000 architecture relies on the Universal Control Network (UCN) for high-speed peer-to-peer communication between HPM nodes. The 51309152-175 UCN Interface Module manages this communication pathway, ensuring that digital input data collected by the 51202304-100 is available to all networked controllers and to the Hiway Gateway for integration with the plant-wide LCN (Local Control Network). For facilities requiring integration with modern SCADA or MES platforms, the 51305890-175 Communication Gateway provides protocol bridging capabilities, enabling system integration between legacy TDC 3000 systems and contemporary OPC-UA or Modbus TCP environments.

Analog process variables are handled in parallel by modules such as the 51304362-150 Analog Input Module and the 51305072-200 Analog Output Module, which share the same HPM backplane and I/O link infrastructure as the 51202304-100. This co-location of analog and digital I/O within a unified rack architecture simplifies engineering, reduces panel footprint, and ensures consistent grounding and shielding practices across all signal types. Discrete output functions — including relay-driven actuator commands — are managed by the 51304516-200 Relay Output Module, which works in coordination with the digital input data provided by the 51202304-100 to close control loops for motor starters, solenoid valves, and alarm annunciators.

For system architects designing redundant control strategies, the 51202304-100 supports deployment in redundant HPM configurations where dual processors monitor the same I/O bus. In the event of a primary HPM failure, the standby processor assumes control without interrupting field signal acquisition, maintaining process continuity in applications where unplanned downtime carries significant operational or safety consequences. This redundancy architecture is particularly valued in offshore platform control systems, nuclear auxiliary systems, and large-scale chemical reactor management.

Long-term maintainability is a core design principle of the TDC 3000 platform, and the 51202304-100 reflects this philosophy. Its modular form factor allows field replacement without specialized tooling, and its diagnostic LED indicators provide immediate visual feedback on channel status, power health, and communication activity. Spare module inventory management is simplified by the module’s broad compatibility across TDC 3000 HPM rack generations, reducing the number of unique part numbers that maintenance teams must stock.

ZYPLC maintains verified inventory of the Honeywell 51202304-100, with each unit subject to functional testing prior to shipment. All modules are covered by a warranty terms confirmed during quotation, providing assurance of operational reliability from the date of delivery. Our technical team supports pre-sale architecture consultation, helping engineers confirm module compatibility, rack slot assignments, and firmware revision requirements before purchase orders are placed.

Product Specification Table

System Compatibility Notes

The Honeywell 51202304-100 achieves its full operational value when deployed within a coordinated TDC 3000 system architecture. A typical HPM rack configuration includes the 51304453-150 HPM CPU as the central processing node, supported by the 51303940-150 backplane for module interconnection and the 51309218-175 power supply for regulated voltage distribution. The 51304441-175 HPM I/O Link interface connects all rack-mounted modules — including the 51202304-100 — to the processor’s internal data bus, enabling sub-second scan cycle updates across all digital and analog channels.

Field wiring is terminated at the 51304685-100 Terminal Assembly, which connects directly to the 51202304-100 without intermediate junction boxes, reducing installation complexity and potential signal degradation points. Analog signals from the process are handled by the co-located 51304362-150 Analog Input Module and 51305072-200 Analog Output Module, while discrete actuator commands are executed by the 51304516-200 Relay Output Module based on logic processed from the digital input data supplied by the 51202304-100.

At the network level, the 51309152-175 UCN Interface Module propagates digital input states across all HPM nodes on the Universal Control Network, enabling coordinated interlock logic that spans multiple control cabinets. The 51305890-175 Communication Gateway extends this data to external systems, supporting system integration with SCADA platforms, historian servers, and enterprise MES applications through standard industrial protocols.

Industrial Application Notes

The Honeywell 51202304-100 is deployed across a wide range of process industries where reliable digital signal acquisition is essential to safe and efficient operations. In petroleum refining and petrochemical plants, the module monitors valve position feedback, pump run/stop status, and emergency shutdown (ESD) system inputs, providing the HPM controller with real-time process state data required for advanced regulatory control and safety interlock execution.

In electric power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 51202304-100 collects breaker status, turbine protection relay outputs, and auxiliary equipment run signals, feeding this data into the plant DCS for load dispatch coordination and equipment protection logic. Its optical channel isolation is particularly valued in high-voltage environments where ground loops and induced noise can compromise signal integrity.

For water and wastewater treatment systems, the module monitors pump station status, valve actuator feedback, and level switch inputs across geographically distributed lift stations and treatment process trains. Its compatibility with the TDC 3000 UCN architecture allows a single control room to supervise hundreds of discrete field points across multiple remote I/O cabinets.

In mining and mineral processing operations, the 51202304-100 supports conveyor belt interlock systems, crusher protection circuits, and flotation cell level control, where reliable digital input acquisition directly impacts throughput and equipment protection. The module’s robust industrial design and warranty terms confirmed during quotation make it a preferred choice for remote site installations where replacement lead times must be minimized through proactive spare parts management.

Pharmaceutical and food processing facilities rely on the module for clean-in-place (CIP) sequence monitoring, agitator run confirmation, and batch process interlock verification, where regulatory compliance requires complete audit trails of all discrete process events — a capability fully supported by the TDC 3000 historian integration architecture.

Product Compatibility FAQ

Q1: Is the Honeywell 51202304-100 compatible with all TDC 3000 HPM rack generations, and are there firmware revision requirements?
The 51202304-100 is designed for use within the TDC 3000 HPM I/O subsystem and is compatible with standard HPM backplanes including the 51303940-150. Firmware compatibility is managed at the HPM CPU level (51304453-150), and ZYPLC’s technical team can assist in confirming revision alignment prior to shipment. Customers are advised to provide their current HPM firmware version during the pre-order consultation to ensure seamless integration without requiring field firmware updates.

Q2: Can the 51202304-100 be installed in a redundant HPM architecture, and how does failover affect digital input data continuity?
Yes. The 51202304-100 supports deployment in redundant HPM configurations where dual processors share the same I/O link bus. In a primary HPM failure event, the standby processor assumes control and continues scanning all connected I/O modules — including the 51202304-100 — without interruption to field signal acquisition. This bumpless transfer capability is fundamental to the TDC 3000 platform’s high-availability design and is fully supported by the module’s hardware architecture.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or technical support?
All Honeywell 51202304-100 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment to verify channel integrity, isolation performance, and communication bus compatibility. For warranty claims or pre-installation technical support, customers may contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com. Our engineering team provides remote diagnostic support and, where required, expedited replacement to minimize process downtime.
