Honeywell 51202329-732 Extension Cable TDC3000

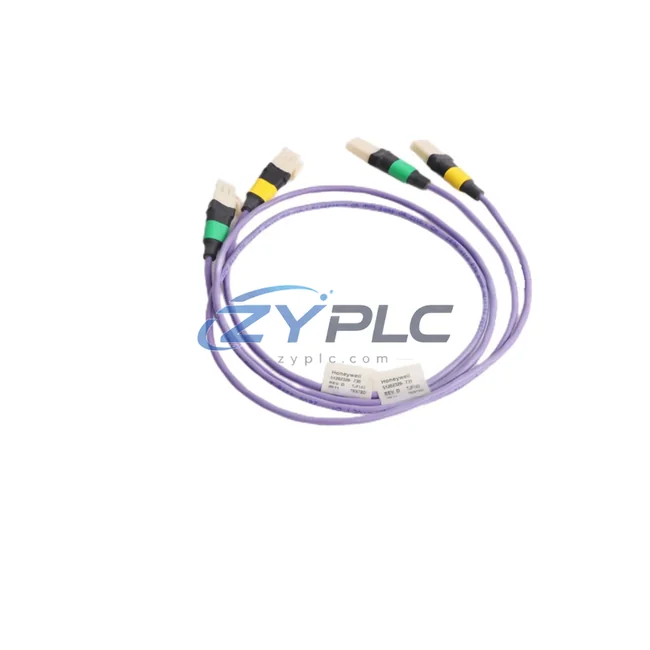

Honeywell 51202329-732 Extension Cable TDC3000: Precision Signal Control for Optimized Automation

The Honeywell 51202329-732 is a high-integrity extension cable engineered specifically for the TDC3000 and TPS Distributed Control System (DCS) platform. In modern process manufacturing — whether in petrochemical refining, power generation, pulp and paper, or pharmaceutical batch production — signal integrity between field instruments and control modules is a foundational requirement for energy-efficient operations. A degraded or mismatched cable introduces noise, increases retry cycles in communication loops, and forces controllers to compensate with higher scan rates, all of which translate directly into wasted electrical energy and reduced equipment utilization.

The 51202329-732 eliminates these inefficiencies by providing a stable, low-resistance signal path between I/O termination assemblies and the TDC3000 controller highway. Its violet-coded jacket enables rapid field identification, reducing technician search time during maintenance windows and minimizing unplanned downtime — a key lever in improving Overall Equipment Effectiveness (OEE) and keeping production line cycle times on target.

Product Specification Table

System Compatibility and Application

The TDC3000 platform is built around a layered control architecture where every component in the signal chain contributes to — or detracts from — overall system energy efficiency. The Honeywell 51202329-732 extension cable serves as the physical backbone connecting the Honeywell MC-TAIH02 Analog Input Module and MC-TAOH02 Analog Output Module to the Local Control Network (LCN), ensuring that 4–20 mA process signals from field transmitters reach the controller without attenuation or ground loop interference.

When paired with the Honeywell 51304485-100 Power Supply Module, the cable’s low-impedance construction ensures that voltage drops across the I/O highway remain within specification, preventing the power supply from operating in a compensating mode that draws excess current. Similarly, the Honeywell 51401584-425 Universal Control Network (UCN) Cable works in tandem with the 51202329-732 to maintain deterministic communication latency across the plant highway — a critical factor in keeping PID control loops responsive and preventing energy-wasting oscillation in motor-driven processes.

For facilities running Honeywell HPM (High-Performance Process Manager) controllers, the 51202329-732 provides the physical extension needed to reach remote I/O cabinets without introducing signal degradation that would force the HPM to increase its error-correction overhead. In variable-speed drive applications, where the Honeywell UDC3500 Universal Digital Controller governs setpoint commands to AC drives controlling pumps and compressors, clean signal transmission through the extension cable directly reduces the frequency of unnecessary speed corrections — each of which represents a measurable energy penalty.

Integration with Honeywell Experion PKS supervisory layers is also supported through the TDC3000 gateway architecture. When the 51202329-732 maintains reliable I/O communication, the Experion historian receives accurate, high-resolution process data that feeds energy dashboards and predictive maintenance algorithms. Facilities using Honeywell PM I/O Link Modules to aggregate field device data will find that the cable’s consistent electrical characteristics prevent the link module from flagging false communication faults — faults that would otherwise trigger unnecessary diagnostic scans and increase background CPU utilization across the control network.

Maintenance and Replacement Notes

In a continuous process plant, the cost of a single unplanned DCS communication fault extends far beyond the immediate repair. When an extension cable degrades — through connector oxidation, mechanical stress, or incompatible substitution — the TDC3000 controller begins logging intermittent I/O errors. Operators respond by increasing manual oversight, overriding automatic control loops, and in many cases, running equipment at conservative setpoints to avoid process upsets. Each of these responses carries an energy penalty: motors run at fixed speeds instead of optimized variable speeds, heat exchangers operate at wider temperature margins than necessary, and compressors cycle more frequently than their design intent.

The Honeywell 51202329-732 eliminates this failure mode by providing a manufacturer-specified, tested replacement that restores the I/O highway to its designed electrical parameters. Once signal integrity is re-established, automatic control loops can resume closed-loop operation, allowing variable-frequency drives on cooling water pumps, boiler feed pumps, and air handling units to return to energy-optimized speed profiles. In facilities where the TDC3000 manages dozens of PID loops simultaneously, the cumulative operational stability from restoring proper cable connections can be significant — particularly in applications where even a 2–3% reduction in motor speed translates to a 6–9% reduction in power consumption due to the affinity laws governing centrifugal machinery.

From a maintenance cost perspective, the 51202329-732’s OEM specification ensures compatibility with existing cable management systems, connector housings, and termination blocks within the TDC3000 cabinet. Technicians do not need to fabricate adapters or modify termination assemblies, which reduces maintenance labor hours and the risk of introducing new wiring errors. Predictive maintenance programs that monitor I/O communication quality metrics — such as retry counts and signal variance — will show measurable improvement after replacing a degraded cable with the 51202329-732, providing quantifiable evidence of the component’s contribution to plant energy and reliability performance.

All units supplied by ZYPLC are sourced from verified inventory channels, subjected to pre-shipment functional testing to confirm electrical continuity and connector integrity, and backed by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch, supporting both planned maintenance shutdowns and emergency replacement scenarios where minimizing production downtime is the primary objective.

Product Sourcing FAQ

Q1: How does replacing a degraded extension cable improve energy efficiency in a TDC3000 system?
A degraded cable introduces signal noise and communication retries that force the TDC3000 controller to increase its error-handling overhead and may cause operators to disable automatic control loops. Restoring a clean signal path with the 51202329-732 allows PID loops to resume closed-loop control, enabling variable-speed drives and other actuators to operate at energy-optimized setpoints rather than conservative manual overrides.

Q2: Is the Honeywell 51202329-732 compatible with both TDC3000 and TPS system configurations?
Yes. The 51202329-732 is designed for use within the Honeywell TDC3000 and TPS DCS platform family. It is compatible with standard I/O termination assemblies and controller highway connections used across both system generations. If you are uncertain about compatibility with a specific cabinet configuration, contact ZYPLC with your system model and I/O module details for confirmation.

Q3: What is the recommended replacement interval, and how can I identify cable degradation before it causes a fault?
Honeywell does not publish a fixed replacement interval for extension cables, as service life depends on environmental conditions including temperature cycling, vibration, and humidity. Proactive monitoring of I/O communication quality metrics in the TDC3000 diagnostic displays — particularly increasing retry counts or intermittent module offline events — is the most reliable early indicator of cable degradation. Replacing the cable at the first sign of communication instability prevents the escalation to a full I/O fault and the associated production disruption.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for a warranty claim?
The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. All units are tested prior to shipment to verify electrical continuity and connector integrity. In the event of a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will arrange for inspection and, where the defect is confirmed, replacement or credit at no additional cost.
