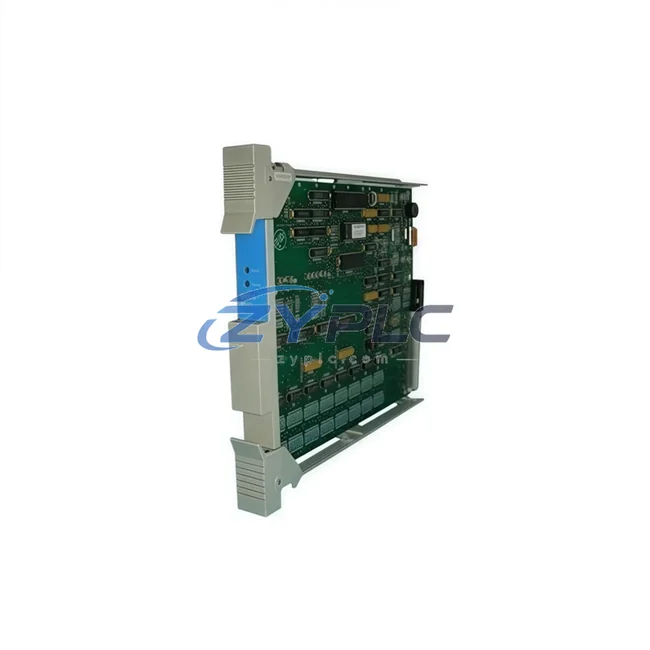

Honeywell 51303997-100 Digital Input Module for TDC 3000

Honeywell 51303997-100 Digital Input Module for TDC 3000

In modern distributed control system (DCS) deployments, the integrity of the digital input layer is foundational to the reliability of the entire control architecture. The Honeywell 51303997-100 Digital Input Module is engineered specifically for the TDC 3000 platform — one of the most widely deployed process automation systems in the refining, petrochemical, power generation, and continuous manufacturing industries. Rather than functioning as a standalone component, the 51303997-100 is designed to operate as a tightly integrated element within a layered automation hierarchy, where signal acquisition, data transmission, controller processing, and operator interface must all function in coordinated synchrony.

The TDC 3000 architecture organizes control functions across multiple layers: the field device layer captures physical process signals; the I/O layer — where the 51303997-100 resides — conditions and digitizes those signals; the control layer processes logic and executes regulatory or sequential control; the network layer transmits data across the Local Control Network (LCN) and Universal Control Network (UCN); and the HMI layer presents real-time process data to operators. The 51303997-100 bridges the field device layer and the control layer, ensuring that discrete on/off signals from field instruments, limit switches, motor starters, and valve position feedback devices are accurately captured and made available to the system controller without latency or signal degradation.

Deploying the 51303997-100 within a TDC 3000 rack system allows engineers to maintain architectural consistency across the entire I/O subsystem. When paired with complementary modules such as the Honeywell 51304485-100 Analog Input Module, the 51304487-100 Analog Output Module, and the 51304516-100 Digital Output Module, the 51303997-100 contributes to a fully populated I/O chassis that supports both regulatory control loops and discrete logic sequences within a single unified backplane. This integration eliminates the need for signal conversion hardware between the field and the controller, reducing wiring complexity and potential failure points.

From a system redundancy perspective, the 51303997-100 supports the TDC 3000’s inherent fault-tolerant design philosophy. In high-availability process environments — such as continuous ethylene crackers, hydrocracker units, or combined-cycle power plants — redundant I/O configurations ensure that a single module failure does not interrupt process monitoring or control. The module’s compatibility with the TDC 3000 High-Performance Process Manager (HPPM) and the Advanced Process Manager (APM) controller platforms means that engineers can implement redundant controller-to-I/O architectures without requiring additional interface hardware or protocol converters.

Network communication within the TDC 3000 system relies on the UCN and LCN data highways, which carry process data, alarm states, and configuration parameters between I/O modules, controllers, and operator workstations. The 51303997-100 is fully compatible with this communication infrastructure, ensuring that digital input states are transmitted to the Honeywell GUS (Global User Station) or the Application Module (AM) without communication bottlenecks. In systems where the TDC 3000 is integrated with a Honeywell Experion PKS migration layer, the 51303997-100 can continue to serve its original I/O function while the control layer is progressively modernized, protecting the capital investment in field wiring and termination assemblies.

For maintenance engineers, the 51303997-100 offers significant advantages in terms of serviceability and long-term supportability. Its plug-in form factor allows hot-swap replacement in systems configured for online maintenance, minimizing process disruption during corrective maintenance activities. Spare module availability is a critical consideration in aging DCS installations, and sourcing a tested, verified 51303997-100 from a reliable supplier ensures that maintenance teams can respond to unplanned failures without extended lead times. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing assurance of functional integrity and reducing the financial risk associated with spare parts procurement.

In terms of system expansion, the 51303997-100 supports the modular growth philosophy of the TDC 3000 platform. As process plants add new measurement points, expand production capacity, or integrate additional field devices, the existing I/O infrastructure can be extended by adding modules to available rack slots without requiring controller reconfiguration or network redesign. This scalability is particularly valuable in brownfield expansion projects where minimizing engineering hours and commissioning time is a priority.

ZYPLC maintains availability subject to RFQ confirmation of the Honeywell 51303997-100 and related TDC 3000 components, supporting engineering teams across the full project lifecycle — from initial system design and spare parts planning through to long-term maintenance and lifecycle extension programs. Our inventory is tested, documented, and ready for shipment arranged after confirmation to support both planned maintenance schedules and emergency replacement requirements.

Product Specification Table

System Compatibility Notes

The 51303997-100 does not operate in isolation — its value is realized through its coordinated role within the broader TDC 3000 control system architecture. In a typical process plant DCS cabinet, the module occupies a slot in the TDC 3000 I/O rack alongside the Honeywell 51304485-100 Analog Input Module, which handles 4–20 mA signals from transmitters measuring pressure, temperature, flow, and level. Digital output functions are managed by the Honeywell 51304516-100 Digital Output Module, which drives solenoid valves, motor contactors, and alarm annunciators based on controller logic outputs.

Controller-level processing is performed by the Honeywell 51401196-100 High-Performance Process Manager (HPPM) or the Honeywell 51304362-100 Advanced Process Manager (APM), both of which communicate with the I/O rack via the UCN data highway. Power to the I/O rack and controller modules is supplied by the Honeywell 51109684-100 Power Supply Module, which provides regulated DC power with built-in redundancy support to ensure continuous operation during single power supply failures.

Operator interface is delivered through the Honeywell GUS (Global User Station) or the Honeywell Experion PKS Station, which displays real-time digital input states, alarm conditions, and historical trends derived from the data collected by the 51303997-100 and its companion I/O modules. Communication between the controller and the operator station traverses the Honeywell LCN (Local Control Network), a deterministic data highway designed for high-reliability process control environments.

In systems requiring communication with third-party field devices or integration with SCADA platforms, the Honeywell 51304441-100 Communication Gateway Module provides protocol bridging between the TDC 3000 UCN and external networks using Modbus, PROFIBUS, or OPC interfaces. Termination of field wiring is managed through Honeywell FTA (Field Termination Assembly) panels, which provide a structured, labeled interface between field cables and the I/O module backplane, simplifying commissioning and reducing wiring errors during installation and maintenance.

Industrial Application Notes

The Honeywell 51303997-100 finds application across a broad range of process industries where the TDC 3000 platform has been deployed as the primary DCS infrastructure. In petroleum refining, the module monitors discrete states from pump seal flush systems, compressor vibration switches, and emergency shutdown valve position feedback, providing the controller with the binary status data required for safety interlock logic and process protection sequences.

In petrochemical and chemical manufacturing plants, the 51303997-100 supports the monitoring of reactor feed isolation valves, agitator motor run/stop status, and batch sequence step completion signals, enabling the APM or HPPM controller to execute complex sequential control programs with accurate real-time input data. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module captures turbine trip signals, generator breaker status, and auxiliary equipment run/stop feedback, supporting both normal operational monitoring and emergency response logic.

In water and wastewater treatment systems, the 51303997-100 monitors pump station run/fail status, valve open/closed confirmation, and level switch activations across geographically distributed pump stations and treatment facilities, all integrated into a centralized TDC 3000 control architecture. In mining and minerals processing operations, the module supports conveyor belt run/stop monitoring, crusher overload detection, and flotation cell level switch integration, providing the control system with the discrete input data required for production optimization and equipment protection.

Across all these applications, the 51303997-100 contributes to system reliability through its proven compatibility with the TDC 3000 platform, its robust electrical design suited to industrial environments, and its support for the long-term maintenance strategies that are essential in capital-intensive process industries where DCS systems are expected to operate reliably for decades.

Product Compatibility FAQ

Q1: Is the Honeywell 51303997-100 compatible with both the HPPM and APM controller platforms within the TDC 3000 architecture?
Yes. The 51303997-100 is designed for the TDC 3000 I/O rack system and is compatible with both the High-Performance Process Manager (HPPM) and the Advanced Process Manager (APM) controller platforms. It communicates with the controller via the UCN data highway using the standard TDC 3000 backplane protocol, making it interchangeable across different controller configurations within the same rack system without requiring hardware or firmware modifications.

Q2: Can the 51303997-100 be used in a redundant I/O configuration, and what are the installation requirements?
The TDC 3000 architecture supports redundant I/O configurations in high-availability applications. In redundant configurations, paired I/O modules occupy adjacent rack slots and are managed by the controller’s redundancy management firmware, which automatically switches to the standby module in the event of a primary module failure. Installation requires that both modules are seated correctly in the rack, that the backplane connectors are fully engaged, and that the controller configuration database is updated to reflect the redundant I/O assignment. ZYPLC recommends verifying module firmware compatibility with the installed controller version prior to deployment.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for TDC 3000 systems?
All Honeywell 51303997-100 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against functional defects, covering failure under normal operating conditions within the TDC 3000 rack environment. ZYPLC maintains ongoing inventory of TDC 3000 I/O modules, controller cards, power supplies, and communication modules to support both planned maintenance programs and emergency replacement requirements. Our technical team can assist with module testing, configuration verification, and compatibility assessment to ensure that replacement modules integrate correctly into the existing system architecture without disruption to ongoing process operations.
