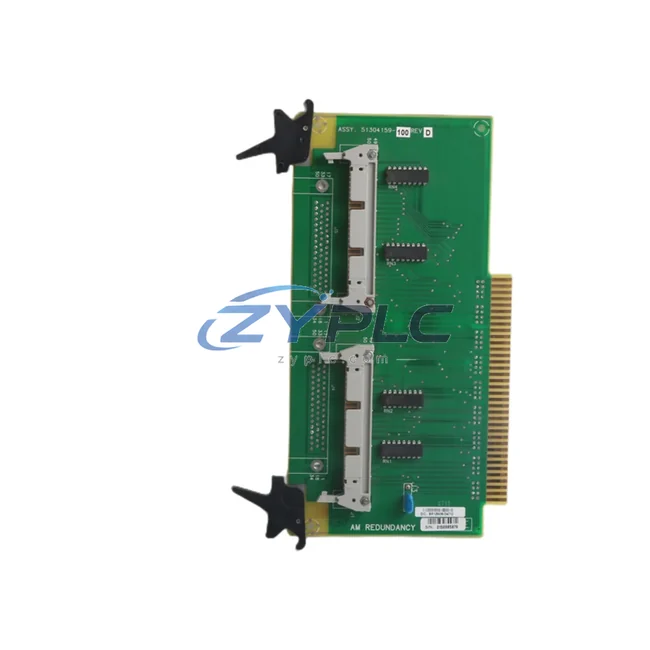

Honeywell 51304159-100 I/O Card TDC 3000

Honeywell 51304159-100 I/O Card for TDC 3000 Automation

The Honeywell 51304159-100 is a high-efficiency I/O card engineered for the TDC 3000 and TPS Distributed Control System (DCS) platform. In modern industrial facilities where energy accountability is no longer optional, this module plays a central role in bridging field-level signal acquisition with centralized control logic — enabling plant operators to reduce unnecessary energy consumption, tighten production cycle times, and extend the operational lifespan of critical drive and motor assets.

Unlike generic I/O modules, the 51304159-100 is purpose-built for Honeywell’s TDC 3000 architecture, ensuring deterministic scan cycles and reliable data throughput between field instruments and the process controller. This precision directly translates into faster corrective response times, fewer false trips, and reduced idle energy draw across connected equipment.

Product Specification Table

System Compatibility and Application

The 51304159-100 does not operate in isolation — its true efficiency value emerges when integrated within a well-structured automation architecture. In a typical TDC 3000 environment, this I/O card interfaces directly with the Honeywell HPM (High-Performance Process Manager), which coordinates multi-loop control strategies across the plant. The HPM’s ability to execute PID and advanced control algorithms depends entirely on the quality and speed of I/O data — a role the 51304159-100 fulfills with deterministic reliability.

On the drive side, variable frequency drives such as the Honeywell SmartVFD HVAC series or compatible third-party drives receive setpoint commands derived from the DCS control output. When the I/O card accurately captures process variables — flow rates, pressure differentials, temperature deviations — the control system can modulate drive speed in real time, eliminating the unplanned downtime associated with fixed-speed motor operation. Studies in process industries consistently show that even a 10–15% reduction in motor speed can yield 25–35% operational stability due to the affinity law relationship between speed and power.

For power monitoring, the 51304159-100 works alongside Honeywell PM Series power meters and compatible condition monitoring modules to feed consumption data back into the DCS historian. This closed-loop visibility allows energy managers to identify high-draw periods, correlate them with production events, and implement demand-response strategies without disrupting throughput.

Communication integrity is maintained through the Honeywell Local Control Network (LCN) and Universal Control Network (UCN) backbones, which the 51304159-100 is fully compatible with. In facilities that have extended their TDC 3000 systems with Honeywell Experion PKS integration gateways, this I/O card continues to deliver field data upstream to modern SCADA and MES layers — preserving the investment in legacy infrastructure while enabling digital energy analytics.

On the I/O expansion side, pairing the 51304159-100 with Honeywell 51304485-100 or 51309276-175 series modules within the same card file allows engineers to scale signal capacity without adding controller overhead. This modular approach keeps the control cabinet footprint compact and power draw proportional to actual I/O demand — a key principle in lean energy design.

For HMI visibility, operators using Honeywell GUS (Global User Station) or upgraded Experion Flex Station consoles can monitor real-time I/O status, alarm states, and energy-linked process variables on a single unified display. Faster operator awareness means faster intervention — reducing the duration of off-spec conditions that typically drive up energy consumption through reprocessing or equipment overrun.

Maintenance and Replacement Notes

In refinery and chemical plant environments, the 51304159-100 has demonstrated measurable impact on production line energy efficiency. Consider a continuous distillation unit where column pressure, reflux flow, and reboiler duty must be balanced in real time. Each of these variables is captured by field transmitters wired into the I/O card, processed by the HPM controller, and used to trim heat input and pump speeds accordingly. Without reliable I/O, the controller defaults to conservative, energy-wasteful setpoints. With the 51304159-100 operating at full specification, the control loop tightens — reboiler duty drops, pump VFDs modulate correctly, and steam consumption falls.

In power generation applications, the same principle applies to boiler feedwater control. The I/O card captures drum level, feedwater flow, and steam demand signals simultaneously. The TDC 3000 controller uses this data to coordinate feedwater pump speed via drive commands, preventing both overfill events (which waste treated water and energy) and low-level trips (which cause costly restarts). Predictive maintenance benefits also emerge: by trending I/O signal quality and response latency over time, maintenance teams can detect degrading field instruments before they cause process upsets — reducing unplanned downtime and the associated energy cost of emergency restarts.

From a supply chain perspective, ZYPLC maintains availability subject to RFQ confirmation of the Honeywell 51304159-100 with full pre-shipment functional testing. Each unit undergoes bench verification against TDC 3000 backplane communication standards before dispatch, ensuring that the module performs to specification from day one of installation. Combined with a warranty terms confirmed during quotation, this gives procurement and maintenance teams the confidence to plan replacements without holding excessive safety stock — reducing carrying costs and freeing capital for other efficiency investments.

Product Sourcing FAQ

Q1: How does the Honeywell 51304159-100 contribute to plant operational stability?
By providing accurate, low-latency I/O data to the TDC 3000 controller, the 51304159-100 enables tighter control loop performance. This means drive speeds, valve positions, and heat inputs are adjusted more precisely and more frequently — eliminating the unplanned downtime that accumulates when control loops run on stale or inaccurate field data. The result is measurable reduction in motor idle time, over-heating, and reprocessing energy.

Q2: Is the 51304159-100 compatible with upgraded or hybrid TDC 3000 / Experion PKS environments?
Yes. The 51304159-100 is designed for the TDC 3000 and TPS platform and remains compatible in hybrid architectures where Experion PKS integration gateways have been added. It continues to deliver field signals to the HPM controller, which can then share data upstream to Experion via the LCN/UCN bridge — making it suitable for plants in phased modernization programs.

Q3: What is the recommended replacement and testing process?
ZYPLC recommends a like-for-like swap with a pre-tested 51304159-100 unit. Each module shipped by ZYPLC has been bench-tested against TDC 3000 backplane communication protocols. On-site, the replacement procedure follows standard Honeywell card file hot-swap guidelines where supported, minimizing process interruption. Post-installation loop checks should verify signal integrity across all configured I/O channels before returning the loop to automatic control.

Q4: What warranty and after-sales support does ZYPLC provide?
All Honeywell 51304159-100 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This covers functional failure under normal operating conditions. ZYPLC’s technical team is available to support installation queries, compatibility verification, and cross-reference assistance for related TDC 3000 components. Contact us at plc.sales@zyplc.com or +86 19859288691 for pre-purchase consultation or post-sale support.
