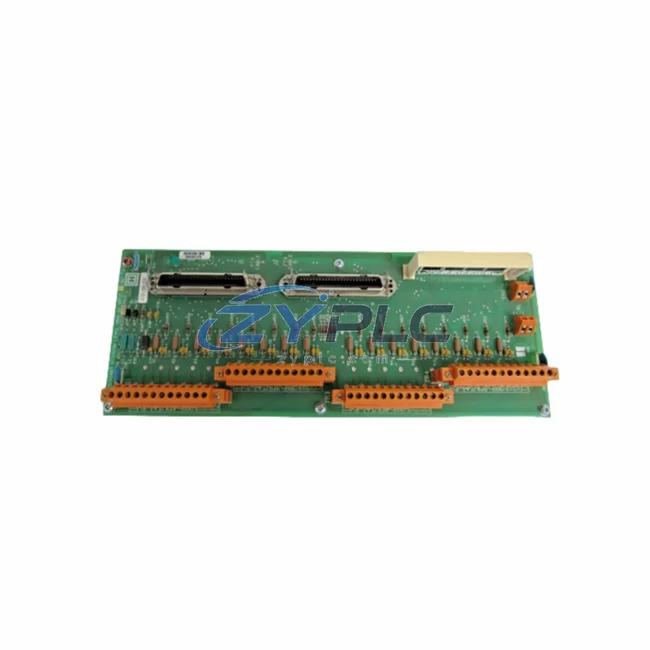

Honeywell 51304337-100 Analog Input Module

Honeywell 51304337-100 Analog Input Module: Precision Control for TDC 3000 Automation

The Honeywell 51304337-100 MU-TAIH12 is a high-density analog input module engineered for the TDC 3000 Distributed Control System (DCS). Designed to handle up to 12 analog input channels simultaneously, this module plays a pivotal role in industrial automation — enabling real-time signal acquisition from field instruments, reducing unnecessary polling cycles, and feeding accurate process data into the control loop with minimal latency. In energy-intensive production environments such as petrochemical refining, power generation, and continuous process manufacturing, the quality of analog signal input directly determines how efficiently the control system can respond to load changes, optimize setpoints, and prevent unplanned downtime caused by over-control or under-response.

At ZYPLC, every 51304337-100 MU-TAIH12 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for rapid fulfillment, supporting both urgent replacement needs and planned maintenance schedules.

Product Specification Table

System Compatibility and Application

In a fully integrated TDC 3000 control architecture, the 51304337-100 MU-TAIH12 serves as the primary data acquisition layer — the foundation upon which all maintenance planning decisions are made. Accurate, low-noise analog input is essential: when field transmitters report flow rates, temperatures, pressures, or current draw, the DCS controller uses this data to calculate optimal actuator positions, motor speeds, and valve openings. Any signal degradation at the input stage propagates through the entire control loop, causing unnecessary energy expenditure.

Within the TDC 3000 platform, the MU-TAIH12 works in close coordination with the Honeywell 51304453-150 analog output module, which translates processed control decisions back into field-level commands. Together, they form a closed-loop maintenance planning pair: the input module reads actual process conditions, the controller calculates the optimal response, and the output module drives actuators — such as control valves or variable-speed drives — to the most energy-efficient position.

For motor-driven loads, the analog signals captured by the MU-TAIH12 are often used to command Honeywell HC900 series hybrid controllers or interface with third-party variable frequency drives (VFDs) via the process bus. By providing precise 4–20 mA feedback from current transformers or power transducers, the module enables the DCS to detect motor loading conditions in real time and adjust drive frequency accordingly — a direct path to reducing kWh consumption on pump and compressor circuits.

The module also integrates with the Honeywell 51309276-150 MC-TAIH02 high-level analog input card used in the Experion PKS migration path, allowing plants that are transitioning from TDC 3000 to Experion to maintain signal continuity without rewiring field instruments. This compatibility reduces downtime during system upgrades and preserves the energy baseline data needed for ongoing efficiency benchmarking.

On the communication side, the TDC 3000 backplane connects the MU-TAIH12 data stream to the Honeywell 51303932-476 Highway Gateway Module (HGM), which bridges the Local Control Network (LCN) and the Universal Control Network (UCN). This architecture ensures that energy data collected at the field level reaches the plant-wide historian and maintenance planning dashboards without packet loss or latency — critical for real-time demand response and load-shedding decisions.

For I/O expansion in high-channel-count applications, the MU-TAIH12 is often deployed alongside the Honeywell 51304362-150 analog input termination assembly, which provides the physical wiring interface between field cables and the module’s backplane connector. Proper termination reduces signal noise and ground loop interference — both of which can cause false readings that trigger unnecessary control actions and waste energy.

Power supply integrity is maintained by the Honeywell 51401469-200 power supply module, which delivers regulated DC power to the I/O subsystem. Stable power delivery is a prerequisite for accurate analog measurement: voltage ripple on the supply rail directly affects ADC resolution and can introduce systematic errors into energy calculations. The combination of a clean power supply and a high-resolution input module like the MU-TAIH12 ensures that energy metering data is reliable enough to support ISO 50001 maintenance planning system requirements.

In plants using the Honeywell TK-PRS021 process interface or the 51303890-175 I/O Link Interface Module, the MU-TAIH12 can be configured to report channel-level diagnostics — including open-circuit detection and out-of-range alerts — back to the operator console. These diagnostics enable maintenance teams to identify failing field instruments before they cause process upsets, reducing both unplanned downtime and the unplanned downtime associated with running processes in degraded control mode.

Maintenance and Replacement Notes

In a typical continuous process plant, energy losses are rarely caused by a single large failure — they accumulate through hundreds of small inefficiencies: a control valve hunting around its setpoint, a pump running at full speed when 70% would suffice, a heat exchanger operating outside its optimal temperature differential. The Honeywell 51304337-100 MU-TAIH12 addresses these losses at the source by ensuring that the DCS always has accurate, high-resolution process data to work with.

Consider a crude distillation unit where column pressure, feed temperature, and reflux flow are all monitored through analog input channels. If any of these signals drifts due to a degraded input module, the DCS may compensate by increasing steam flow or adjusting reflux ratio beyond what the process actually requires — burning excess fuel and increasing utility costs. Replacing a worn or intermittent analog input module with a tested 51304337-100 unit restores signal fidelity and allows the advanced process control (APC) layer to operate within its designed efficiency envelope.

In power generation applications, the MU-TAIH12 is commonly used to monitor generator output current, turbine inlet temperature, and cooling water flow — all critical parameters for heat rate optimization. Accurate analog input at these measurement points allows the DCS to maintain the turbine at its most efficient operating point, reducing fuel consumption per MWh generated. Plants that have upgraded from older, lower-resolution input modules to the MU-TAIH12 have reported measurable improvements in control loop stability and a reduction in manual operator interventions — both of which translate directly to operational stability.

From a maintenance perspective, the module’s robust design and Honeywell’s proven TDC 3000 platform reliability mean that mean time between failures (MTBF) is high. Fewer module replacements mean fewer process interruptions, and fewer process interruptions mean fewer energy-intensive restart sequences. Keeping a tested spare 51304337-100 MU-TAIH12 in inventory — available from ZYPLC with same-day shipping on availability confirmed by RFQ units — is a low-cost insurance policy against the high energy and production cost of an unplanned DCS outage.

Product Sourcing FAQ

Q1: How does the 51304337-100 MU-TAIH12 contribute to operational stability in a TDC 3000 system?
The MU-TAIH12 provides high-accuracy analog signal acquisition across 12 channels, giving the DCS controller precise process data. Accurate input data reduces control loop error, minimizes over-actuation of energy-consuming field devices (pumps, compressors, heaters), and enables advanced process control algorithms to operate at peak efficiency. The net result is lower utility consumption and reduced carbon intensity per unit of production.

Q2: Is the 51304337-100 compatible with both legacy TDC 3000 and migration paths to Experion PKS?
Yes. The MU-TAIH12 is a native TDC 3000 I/O module and operates within the standard UCN/LCN architecture. For plants migrating to Experion PKS, Honeywell’s migration tools support signal mapping from TDC 3000 I/O points to Experion controller tags, allowing the existing field wiring and termination assemblies to be retained. This reduces migration cost and preserves historical energy baseline data.

Q3: What testing and quality assurance does ZYPLC perform before shipping the 51304337-100?
Every unit sold by ZYPLC undergoes full functional testing, including channel-by-channel analog signal verification, power consumption check, and communication handshake validation with TDC 3000 backplane hardware. Units that do not meet Honeywell’s original performance specifications are not shipped. All tested units are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: What is the recommended replacement interval, and how quickly can a replacement unit be sourced?
Honeywell does not publish a fixed replacement interval for the MU-TAIH12, as service life depends on operating environment and maintenance practices. ZYPLC recommends proactive replacement when channel diagnostics show intermittent faults or when calibration drift exceeds acceptable limits. Availability is confirmed via RFQ for same-day or next-day shipment, minimizing the window of degraded control performance and associated unplanned downtime.
