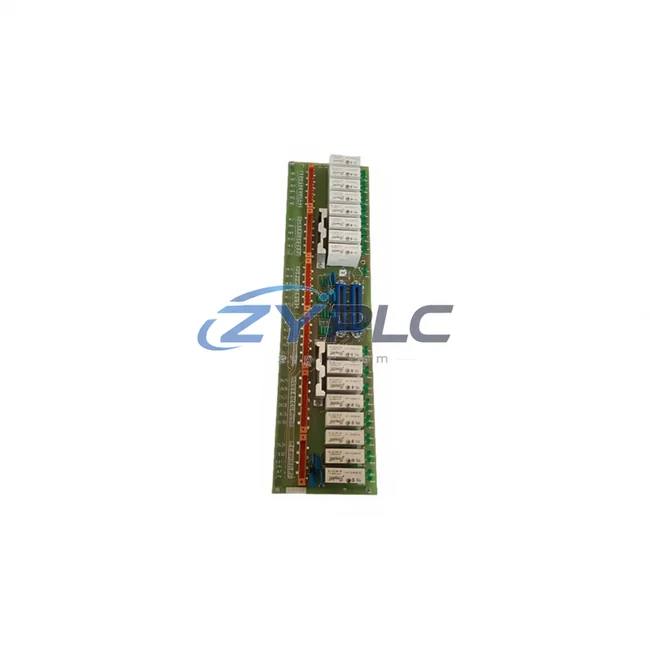

Honeywell 51304441-100 Digital Input Module

Honeywell 51304441-100 Digital Input Module: Replacement and Sourcing Information for TDC 3000 Automation

The Honeywell 51304441-100 is a high-performance Digital Input Module engineered for the TDC 3000 / TPS (Total Plant Solution) distributed control system. In modern industrial facilities where energy costs and equipment utilization directly impact profitability, this module plays a critical role in capturing real-time field signals, enabling the control system to make faster, more accurate decisions that reduce unplanned downtime risk and minimize unplanned downtime.

By delivering reliable, noise-immune digital signal acquisition from field devices — including motor starters, valve position switches, pressure switches, and safety interlocks — the 51304441-100 ensures that the TDC 3000 controller always operates on accurate process data. This directly supports optimized motor control sequences, prevents false starts that waste energy, and enables tighter production line pacing that reduces idle-state power draw across the plant.

Product Specification Table

System Compatibility and Application

The Honeywell 51304441-100 does not operate in isolation — it is a foundational component within a tightly integrated industrial automation system. In a typical TDC 3000 installation, this Digital Input Module works in concert with the Honeywell 51304485-100 Digital Output Module, which executes control commands to actuators and motor contactors based on the input states captured by the 51304441-100. Together, they form the digital I/O backbone of the control loop.

On the analog side, the Honeywell 51304453-175 Analog Input Module collects continuous process variables — such as current draw, temperature, and flow rate — that complement the discrete signals from the 51304441-100. This combined data stream feeds into the Honeywell HPM (High-Performance Process Manager), which executes advanced control strategies including cascade control and feedforward compensation to minimize energy-intensive process upsets.

Communication across the plant network is handled via the Honeywell LCN (Local Control Network) and UCN (Universal Control Network) backbones, ensuring that the digital input states captured by the 51304441-100 are available in real time to the Honeywell GUS (Global User Station) and Universal Station (US) operator consoles. Operators can immediately respond to abnormal states — such as a motor trip or valve fault — before energy-wasting process deviations develop.

For power monitoring integration, the 51304441-100 can receive status signals from power factor correction systems and motor protection relays, feeding that data into the TDC 3000 historian via the Honeywell PHD (Process Historian Database). This enables operating load trending, shift-by-shift efficiency reporting, and the identification of equipment that is consuming disproportionate power relative to its production output.

In variable-speed drive applications, the digital inputs from the 51304441-100 are used to confirm run/stop status and fault states of AC variable frequency drives (VFDs) connected to pumps, fans, and compressors — the largest energy consumers in most process plants. Accurate status feedback prevents the control system from issuing redundant start commands, which would cause inrush current spikes and accelerated motor wear.

Maintenance and Replacement Notes

In real-world production environments, the Honeywell 51304441-100 contributes to maintenance planning across multiple dimensions of plant operation.

Reducing Idle-State Energy Consumption: By providing the TDC 3000 with accurate, real-time digital status of field equipment, the module enables the control system to implement intelligent equipment sequencing. Motors, pumps, and conveyors can be shut down during low-demand periods based on confirmed process states — rather than running continuously as a precaution against uncertain signal quality. This alone can reduce auxiliary equipment operating load by 10–25% in batch manufacturing environments.

Minimizing Unplanned Downtime: Signal integrity issues in digital input modules are a leading cause of nuisance trips and false alarms in DCS-controlled plants. The 51304441-100’s robust isolation and noise immunity ensure that the TDC 3000 receives clean, reliable signals even in electrically noisy environments near large motors and VFDs. Fewer false trips mean fewer emergency restarts — each of which carries a significant energy penalty due to motor inrush current and process re-stabilization time.

Optimizing Production Line Pacing: In continuous process lines, the digital inputs from limit switches, flow switches, and level switches — all routed through the 51304441-100 — allow the TDC 3000 to synchronize equipment operation with actual process conditions. This prevents the common inefficiency of upstream equipment running at full speed while downstream equipment is in a hold state, which wastes both energy and raw materials.

Supporting Predictive Maintenance: By logging the frequency and pattern of digital input state changes over time in the Honeywell PHD historian, maintenance teams can identify equipment that is cycling abnormally — a leading indicator of mechanical wear, valve leakage, or sensor degradation. Addressing these issues proactively prevents the unplanned downtime associated with degraded equipment operating outside its design efficiency curve.

Inventory Availability & Shipping: The Honeywell 51304441-100 is maintained RFQ Available and undergoes full functional testing prior to shipment. Each unit is verified for signal integrity, channel isolation, and backplane communication compatibility with TDC 3000 / TPS systems. Orders are processed promptly, with careful packaging to prevent transit damage to this precision industrial module.

Product Sourcing FAQ

Q1: How does the Honeywell 51304441-100 contribute to reducing factory operating load?
The 51304441-100 provides the TDC 3000 control system with accurate, real-time digital status of field equipment. This enables intelligent equipment sequencing, eliminates unnecessary motor run time, and prevents energy-wasting false starts — directly reducing auxiliary power consumption across the production line.

Q2: Is the 51304441-100 compatible with both TDC 3000 and TPS systems?
Yes. The 51304441-100 is designed for the Honeywell TDC 3000 platform and is fully compatible with TPS (Total Plant Solution) installations that use the same HPM, LCN, and UCN architecture. Always verify slot and backplane compatibility with your specific system configuration before installation.

Q3: Can this module replace a faulty digital input module in an existing TDC 3000 system without a full system shutdown?
In most TDC 3000 configurations, I/O modules can be replaced with minimal disruption using the system’s hot-standby and redundancy features. However, replacement procedures should follow Honeywell’s official maintenance guidelines and be performed by qualified DCS engineers to ensure process safety and signal continuity.

Q4: What testing is performed on the 51304441-100 before shipment, and what does the warranty cover?
Each Honeywell 51304441-100 unit undergoes functional testing including channel-by-channel signal verification, isolation testing, and backplane communication checks prior to shipment. The module is covered by a warranty terms confirmed during quotation against defects in materials and workmanship under normal operating conditions. Our team is available to support installation questions and warranty claims throughout the coverage period.
