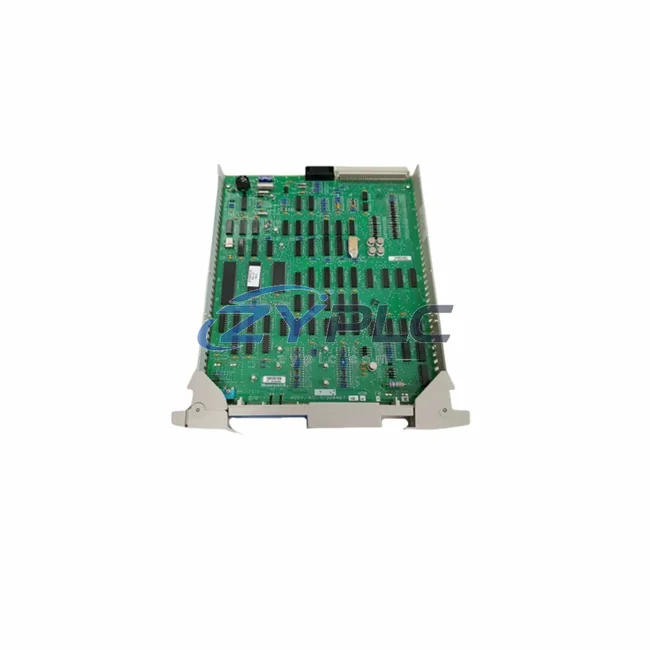

Honeywell 51304487-150 MC-PDOX02 Digital Output Processor for TDC TPS Systems

Honeywell 51304487-150 MC-PDOX02: Industrial Data Link for TDC/TPS Smart Factory Networks

The Honeywell 51304487-150 MC-PDOX02 Digital Output Processor is a precision-engineered DCS output module designed to serve as a critical node in the industrial data chain connecting field devices, PLC controllers, remote I/O racks, HMI workstations, SCADA platforms, and upper-level management systems. In modern smart factory environments, reliable signal output and deterministic communication are not optional — they are the foundation of every automated production line, continuous process loop, and safety-critical control system. The MC-PDOX02 delivers exactly that: stable, high-integrity digital output processing within the Honeywell TDC 3000 and TPS (Total Plant Solution) distributed control architecture.

From the moment a process variable is detected at the field level — whether from a pressure transmitter, flow sensor, or temperature element — the data travels upward through the control network. The MC-PDOX02 sits at the output stage of this chain, translating processed control decisions from the DCS controller into discrete digital signals that actuate solenoid valves, motor starters, relay outputs, and other final control elements. This deterministic output processing ensures that every command issued by the TDC 3000 or TPS controller reaches the field device with minimal latency and maximum reliability.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the MC-PDOX02 requires placing it within the broader context of the Honeywell TDC/TPS control architecture. In a typical refinery, chemical plant, or power generation facility running on TDC 3000, the control network is structured around the Local Control Network (LCN) and Universal Control Network (UCN). The MC-PDOX02 operates as part of the Process Manager (PM) or Advanced Process Manager (APM) card cage, working in concert with the MC-PDIX02 digital input processor to form a complete I/O pair for discrete signal handling.

At the field level, signals from proximity switches, limit switches, and digital sensors are collected by the input side of the system. Once the DCS controller — running on the LCN backbone — processes the logic, the MC-PDOX02 executes the output command. This might mean energizing a solenoid valve via a 51309276-150 relay output module, triggering a motor starter through a 51304516-200 output card, or sending a discrete signal to a variable frequency drive (VFD) to initiate a pump sequence.

For analog process loops, the MC-PDOX02 works alongside the MC-PAIH03 analog input module and the MC-TAOY22 analog output module, ensuring that both continuous and discrete control actions are synchronized across the same DCS backplane. In multi-loop control scenarios — such as cascade control for reactor temperature or split-range control for pressure relief — the coordination between digital and analog I/O modules is essential for process stability.

At the SCADA and HMI layer, operators monitoring the plant via Honeywell’s TK-PPD011 operator workstation or a third-party SCADA platform receive real-time status feedback from the MC-PDOX02’s output states. This bidirectional data visibility — from field actuator back to the control room display — is what enables true plant transparency. Remote diagnostic tools can query the module’s health status, output channel states, and communication integrity without requiring a physical site visit, dramatically reducing mean time to repair (MTTR) in the event of a fault.

For plants integrating legacy TDC 3000 systems with modern Ethernet-based infrastructure, gateway modules such as the 51303982-400 communication interface and the 51401642-150 network bridge provide the protocol translation layer needed to pass data from the UCN/LCN environment into OPC-UA, Modbus TCP, or PROFINET networks. This allows the MC-PDOX02’s output data to be consumed by edge computing platforms, MES systems, and cloud-based analytics dashboards — completing the data journey from field device to enterprise decision-making layer.

The MC-TAMR03 redundancy module further enhances system reliability by providing hot-standby failover for critical output channels, ensuring that even in the event of a primary module failure, the MC-PDOX02’s output functions are maintained without process interruption. This level of redundancy is standard practice in SIL-rated safety instrumented systems (SIS) and high-availability continuous process environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the condition where field-level process data is trapped within proprietary control networks and cannot be accessed by modern analytics, remote monitoring, or enterprise systems. The Honeywell 51304487-150 MC-PDOX02 addresses this challenge at the output layer by providing deterministic, protocol-consistent digital output processing that integrates cleanly with both legacy TDC 3000 architectures and modern hybrid control systems.

Plants running mixed-generation control systems — where TDC 3000 hardware coexists with newer Experion PKS controllers or third-party PLCs — often struggle with protocol mismatches that create blind spots in their SCADA visibility. The MC-PDOX02, when paired with appropriate gateway and communication modules, eliminates these blind spots by ensuring that every digital output state is accurately reflected in the plant-wide data model. Operators gain a unified view of discrete output status across all control zones, enabling faster fault diagnosis, more accurate alarm management, and more effective remote troubleshooting.

Production line transparency is another key benefit. In batch manufacturing or continuous process environments, knowing the exact state of every digital output — valve open/closed, motor running/stopped, interlock active/inactive — is essential for production accounting, quality assurance, and regulatory compliance. The MC-PDOX02 provides this granular output visibility as a native function of the TDC/TPS architecture, without requiring additional instrumentation or third-party middleware.

System expansion is also simplified. As plants add new process units, extend their control networks, or migrate from TDC 3000 to TPS or Experion PKS, the MC-PDOX02’s standard backplane interface and UCN/LCN compatibility ensure that existing I/O infrastructure can be retained and integrated into the expanded system. This protects capital investment in installed hardware while enabling incremental modernization — a critical consideration for facilities operating on multi-decade asset lifecycles.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 51304487-150 MC-PDOX02 support?
The MC-PDOX02 communicates natively over Honeywell’s UCN (Universal Control Network) and LCN (Local Control Network) protocols, which are the backbone data buses of the TDC 3000 and TPS distributed control systems. For integration with modern Ethernet-based networks, protocol gateway modules are required to translate UCN/LCN data into standard industrial protocols such as Modbus TCP, OPC-UA, or PROFINET.

Q2: Is the MC-PDOX02 compatible with Honeywell Experion PKS systems?
The MC-PDOX02 is natively designed for TDC 3000 and TPS architectures. Integration with Experion PKS is achievable through Honeywell’s legacy I/O migration pathways and communication bridge modules, which allow TDC-era I/O cards to be retained within an Experion-managed control environment. Compatibility should be verified against the specific Experion PKS version and migration configuration in use at your facility.

Q3: How does the MC-PDOX02 support remote diagnostics and network stability monitoring?
Within the TDC/TPS architecture, the MC-PDOX02’s output channel states and module health data are continuously reported to the DCS controller and accessible via the operator workstation and SCADA interface. This enables real-time monitoring of output status, communication integrity, and fault conditions without requiring physical access to the card cage. Remote diagnostic capability is further enhanced when the TDC/TPS system is connected to an enterprise network via appropriate gateway modules.

Q4: What warranty and testing standards apply to the 51304487-150 MC-PDOX02?
Every Honeywell 51304487-150 MC-PDOX02 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm output channel integrity, backplane communication, and module identification. Units are shipped in anti-static protective packaging with full traceability documentation. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize plant downtime.
