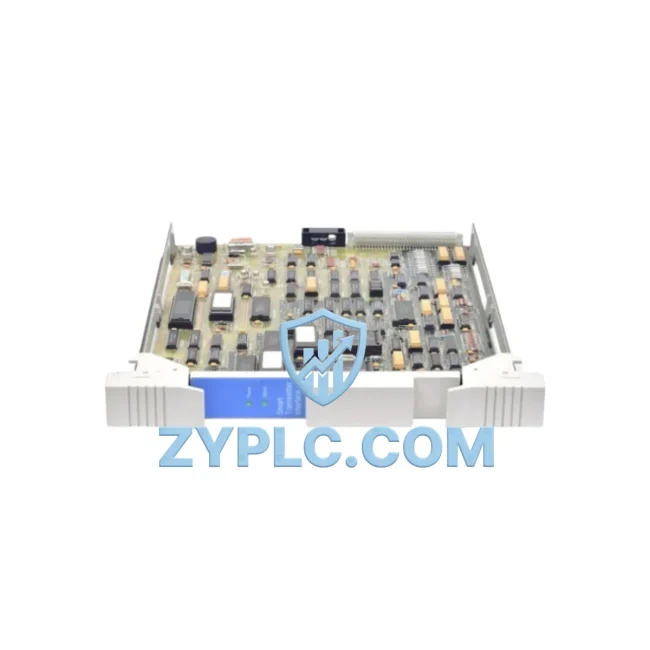

The Honeywell 51304516-100 is a high-performance Smart Transmitter Interface (STI) engineered for seamless integration within the Honeywell TDC3000 Distributed Control System (DCS). Designed for demanding industrial environments, this module serves as the critical bridge between field-level process sensors and the plant-wide control architecture — enabling real-time energy data acquisition, precision signal conditioning, and closed-loop feedback that directly reduces wasted energy across production lines.
In modern manufacturing and process industries, unmonitored operating load at the field instrument level is one of the most overlooked sources of operational inefficiency. The 51304516-100 addresses this by providing accurate, low-latency signal transmission from HART-compatible smart transmitters — including pressure, temperature, flow, and level devices — directly into the TDC3000 control network. This ensures that every control decision made by the system is based on verified, high-fidelity process data, eliminating the unplanned downtime caused by control drift, sensor miscalibration, or delayed feedback loops.
Product Specification Table
| Parameter |
Specification / Value |
| Part Number |
51304516-100 |
| Brand |
Honeywell |
| Series / Platform |
TDC3000 DCS |
| Module Type |
Smart Transmitter Interface (STI) |
| Signal Compatibility |
HART Protocol, 4–20 mA Analog |
| Operating Voltage |
24 VDC (typical DCS backplane supply) |
| Power Consumption |
Low-power design, optimized for continuous 24/7 operation |
| Running Efficiency |
High-accuracy signal conditioning; minimizes control loop error |
| Compatible Systems |
Honeywell TDC3000, TPS (Total Plant Solution), HPM, LCN |
| Application Environment |
Petrochemical, Refining, Power Generation, Pulp & Paper, Pharmaceuticals |
| Maintenance Value |
Reduces control loop drift; supports predictive maintenance; lowers unplanned downtime unplanned downtime |
| Origin |
USA |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Ships After Outgoing Test |
System Compatibility and Application
The 51304516-100 does not operate in isolation — its true maintenance planning value is realized when it functions as part of a tightly integrated TDC3000 automation architecture. Within a typical plant configuration, this STI module interfaces directly with the Honeywell HPM (High-Performance Process Manager), which coordinates multi-loop control strategies across the facility. The HPM relies on accurate field data from the STI to execute model-based control algorithms that minimize energy-intensive process swings.
At the network level, the 51304516-100 communicates over the Honeywell Local Control Network (LCN), ensuring that process data from smart transmitters reaches the Universal Station (US) and Global User Station (GUS) HMI consoles with minimal latency. Operators monitoring energy KPIs on the GUS can immediately identify anomalies — such as a pump running at excessive load due to a miscalibrated flow transmitter — and take corrective action before unplanned downtime compounds.
For facilities running parallel I/O infrastructure, the STI module works alongside Honeywell IOP (Input/Output Processor) cards and FTA (Field Termination Assembly) panels to consolidate field wiring and reduce signal noise. Clean, noise-free signals mean that variable frequency drives (VFDs) connected downstream receive accurate process feedback, allowing them to modulate motor speed precisely rather than running at fixed high-energy setpoints. In pump and compressor applications, this alone can help restore stable operation when a compatible replacement is required.
The module also plays a key role in condition monitoring loops that feed into the Honeywell PHD (Process Historian Database). By logging high-resolution transmitter data over time, the PHD enables energy analysts to identify consumption trends, benchmark equipment efficiency, and build predictive maintenance models. When a heat exchanger begins to foul, for example, the differential pressure transmitter connected through the 51304516-100 will show a gradual increase — a signal that, when trended in the PHD, triggers a maintenance alert before the unit reaches an energy-inefficient operating point.
In multi-unit process plants, the STI module supports integration with Honeywell AM (Application Module) nodes running advanced process control (APC) applications. These APC strategies — including model predictive control (MPC) — depend on reliable, real-time transmitter data to optimize setpoints across interconnected process units, reducing both operating load and raw material waste simultaneously.
Maintenance and Replacement Notes
On a live production line, the energy impact of a properly functioning Smart Transmitter Interface is measurable and direct. Consider a refinery crude distillation unit where dozens of temperature and pressure transmitters feed into the TDC3000 control system. If even a handful of those transmitters are communicating through degraded or non-HART-capable interfaces, the control system compensates by widening control bands — effectively allowing process variables to swing further from their optimal setpoints. Each degree of temperature deviation in a distillation column, or each PSI of pressure variance in a reactor, translates directly into excess fuel consumption in the fired heater or excess cooling load in the overhead condenser.
The 51304516-100 eliminates this inefficiency by maintaining a clean, validated HART communication channel between the smart transmitter and the HPM controller. With accurate, real-time process data, the TDC3000 can maintain tighter control bands — reducing operating load in heating, cooling, and compression utilities. In facilities where energy costs represent 30–60% of total operating expenses, tighter process control enabled by reliable STI modules can yield significant annual savings.
Beyond steady-state efficiency, the 51304516-100 contributes to reducing unplanned downtime — one of the most energy-intensive events in any production facility. An unplanned shutdown requires the entire process to be cooled down, depressurized, restarted, and brought back to operating temperature — a sequence that consumes enormous amounts of energy and produces no output. By enabling predictive diagnostics through HART device status monitoring, the STI module allows maintenance teams to identify failing transmitters before they cause process upsets, scheduling replacements during planned turnarounds rather than emergency shutdowns.
The module also supports production line rhythm optimization. In batch manufacturing environments, consistent and accurate process measurement ensures that each batch cycle completes within its designed time window. Measurement delays or signal errors caused by a failing interface module can extend batch cycle times, reducing equipment utilization rates and increasing the energy cost per unit of output. The 51304516-100, with its reliable signal integrity, keeps batch cycles on schedule and equipment utilization at its designed optimum.
Every unit shipped from ZYPLC undergoes a full outgoing functional test to verify signal integrity, communication protocol compliance, and power consumption within specification. This ensures that the module performs to Honeywell’s original design standards from the moment it is installed — with no break-in period unplanned downtime or early-life failures. All units are backed by a 12-month warranty, providing procurement and maintenance teams with the confidence to plan long-term without budget risk.
Product Sourcing FAQ
Q1: How does the Honeywell 51304516-100 contribute to measurable operational stability in a TDC3000 plant?
The 51304516-100 maintains accurate, low-latency HART communication between field transmitters and the TDC3000 HPM controller. This allows the control system to maintain tighter process control bands, reducing unplanned downtime in heating, cooling, and compression utilities. Facilities with tighter control loops consistently report lower utility consumption per unit of production output.
Q2: Is the 51304516-100 compatible with other Honeywell TDC3000 components and modern DCS upgrades?
Yes. The 51304516-100 is designed for the TDC3000 platform and is compatible with HPM controllers, IOP cards, FTA panels, LCN network infrastructure, and HMI stations including the Universal Station and GUS. It also supports integration with PHD historians and AM application modules running APC strategies.
Q3: What is the recommended replacement process, and how do you minimize production disruption during installation?
For TDC3000 systems, STI module replacement is typically performed during a planned maintenance window. The module is hot-swappable in most HPM configurations, allowing replacement without a full controller shutdown. ZYPLC recommends verifying the replacement unit with a bench test prior to installation. All units supplied by ZYPLC are pre-tested and ready for immediate installation.
Q4: What warranty and post-sale support does ZYPLC provide for the 51304516-100?
All Honeywell 51304516-100 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes a documented outgoing functional test before dispatch. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize production downtime. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for support.
