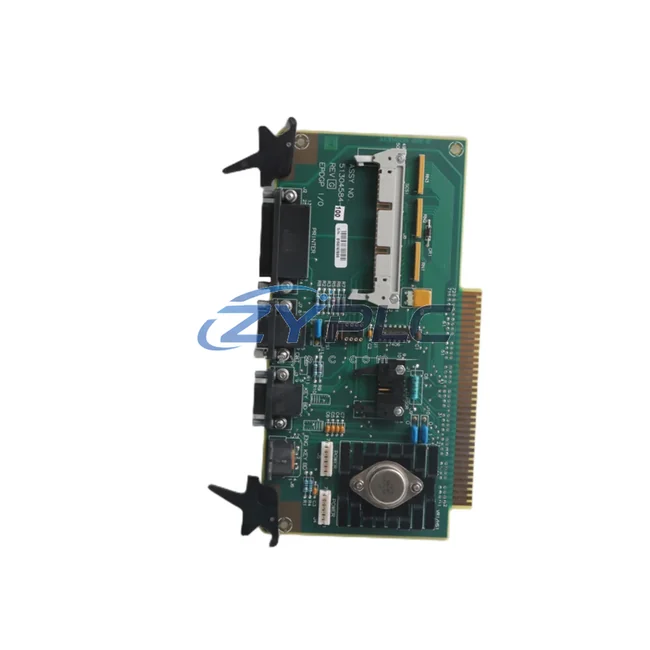

Honeywell 51304584-100 Safety I/O for FSC

Honeywell 51304584-100 Safety I/O for FSC: Control System Coordination and Upstream-Downstream Synergy

The Honeywell 51304584-100 is a dedicated Safety I/O Module engineered for deployment within the Honeywell Fail-Safe Controller (FSC) platform — one of the most widely adopted safety-rated control architectures in process-critical industries worldwide. Rather than functioning as a standalone component, this module is designed from the ground up to operate as an integrated node within a layered automation system, where signal integrity, redundancy, and deterministic response times are non-negotiable requirements. Understanding its role demands a systems-level perspective that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and the field execution layer simultaneously.

In a typical FSC-based safety system, the 51304584-100 occupies the I/O layer, serving as the critical bridge between field instrumentation — pressure transmitters, temperature sensors, emergency shutdown valves, and flame detectors — and the FSC central processing unit. Its SIL2-rated signal conditioning ensures that every input read and every output command meets the functional safety requirements defined under IEC 61508 and IEC 61511. This is not merely a hardware specification; it is a system-level guarantee that the entire signal chain, from field device to CPU decision, maintains the integrity demanded by safety instrumented functions (SIFs).

At the control layer, the 51304584-100 interfaces directly with the FSC CPU module — such as the Honeywell FSC 10022/2/1 or compatible processor cards — which executes the safety logic at deterministic scan rates. The CPU relies on the I/O module to deliver accurate, fault-detected process values in real time. Any deviation, open circuit, short circuit, or out-of-range signal is immediately flagged, enabling the CPU to initiate a safe-state response without operator intervention. This tight coupling between the I/O module and the CPU is what makes the FSC architecture suitable for Emergency Shutdown (ESD) systems, Burner Management Systems (BMS), and High Integrity Pressure Protection Systems (HIPPS).

From a network and communication perspective, the 51304584-100 operates within the FSC backplane bus, exchanging data with the system controller at high speed and with built-in error detection. In larger installations, the FSC system may be integrated with a Distributed Control System (DCS) — such as the Honeywell Experion PKS — via PROFIBUS DP, Modbus RTU, or OPC-DA/UA gateways. The 51304584-100 contributes to this integration by ensuring that the safety layer’s I/O data is accurately represented in the DCS historian and operator displays, enabling operators to monitor safety system status from the HMI layer without compromising the independence of the safety function.

Power supply integrity is equally critical in FSC architectures. The 51304584-100 is powered through the FSC rack’s redundant power distribution system, typically supported by dual FSC power supply modules operating in hot-standby configuration. This arrangement ensures that a single power supply failure does not interrupt the safety I/O scanning cycle, maintaining continuous process monitoring even during maintenance windows. The module’s low power consumption profile also simplifies thermal management within the control cabinet, reducing the risk of heat-related degradation over long operational lifetimes.

For human-machine interface integration, the data processed by the 51304584-100 feeds into operator workstations and safety system displays, where process engineers can monitor field device health, I/O channel diagnostics, and safety function status in real time. In facilities using Honeywell’s Safety Manager or Safety Builder configuration tools, the module’s channel assignments, diagnostic masks, and voting logic configurations are managed centrally, reducing the risk of misconfiguration during system expansions or modifications.

At the execution layer, the 51304584-100 drives final control elements — solenoid valves, motor starters, and shutdown actuators — based on the logic decisions made by the FSC CPU. Its output channels are designed to de-energize on fault detection, aligning with the fail-safe principle that underpins all SIL-rated safety systems. This behavior is consistent across the FSC module family, ensuring that system architects can design predictable, auditable safety responses across all process units.

Long-term maintainability is a defining advantage of the FSC platform. Because the 51304584-100 is a standard, catalogued module within the Honeywell FSC ecosystem, replacement units can be sourced, tested, and installed without requiring custom firmware or hardware modifications. ZYPLC maintains availability subject to RFQ confirmation of this module with a warranty terms confirmed during quotation, supporting both planned maintenance cycles and emergency replacement scenarios. All units are functionally tested prior to dispatch, ensuring that replacement modules integrate seamlessly into existing FSC racks without extended commissioning delays.

Product Specification Table

System Compatibility Notes

The 51304584-100 achieves its full operational value only when considered within the context of a complete FSC control system architecture. A well-engineered FSC installation typically combines the following coordinated components:

The FSC CPU module (e.g., Honeywell 10022/2/1) serves as the safety logic solver, executing the programmed safety functions at deterministic intervals and issuing commands to the I/O layer based on real-time field data. Paired with the FSC Power Supply Module in a redundant configuration, the system maintains uninterrupted operation even during individual power supply failures — a critical requirement for continuous process plants operating 24/7.

The FSC Backplane / Rack Assembly provides the physical and electrical infrastructure that connects the 51304584-100 to the CPU and power modules, ensuring low-latency, high-integrity data exchange across all installed I/O cards. In larger systems, multiple racks may be deployed to accommodate expanded I/O counts, with the 51304584-100 occupying dedicated slots assigned during system engineering.

For digital output applications, the 51304584-100 works in coordination with FSC Digital Output Modules and relay output terminal assemblies, which interface with solenoid valves and motor control circuits in the field. On the input side, it complements FSC Analog Input Modules that handle 4–20 mA signals from pressure transmitters, flow meters, and level sensors — providing the CPU with a complete picture of process conditions across all monitored variables.

Communication gateways — such as Honeywell FSC PROFIBUS DP Gateway Modules — extend the FSC system’s data visibility into the plant’s DCS network, enabling the Honeywell Experion PKS or third-party SCADA systems to display safety system status on operator workstations. This integration supports the system integration model, where safety and process control data are presented in a unified operational view without compromising the functional independence of the safety layer.

For facilities requiring enhanced redundancy, the 51304584-100 can be deployed in 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures, where multiple I/O modules monitor the same field signal and the CPU applies voting logic to determine the correct system response. This architecture is commonly specified for HIPPS applications and critical ESD loops where spurious trips must be minimized without compromising safety availability.

Industrial Application Notes

The Honeywell 51304584-100 finds application across a broad spectrum of process industries where functional safety is a regulatory and operational imperative.

In oil and gas processing and petrochemical plants, the module is deployed within ESD systems that protect reactors, separators, compressors, and pipeline segments from overpressure, high-temperature, and leak events. Its SIL2 rating satisfies the safety requirements specified in HAZOP studies and Safety Requirement Specifications (SRS) for these high-consequence processes.

In power generation facilities — including thermal, combined-cycle, and cogeneration plants — the 51304584-100 supports Burner Management Systems (BMS) that govern the safe startup, operation, and shutdown of combustion equipment. Its deterministic response time ensures that fuel cutoff commands are executed within the required safety response time, preventing combustion-related incidents.

In water and wastewater treatment plants, the module monitors pump stations, chemical dosing systems, and overflow protection circuits, providing reliable I/O performance in environments characterized by high humidity, variable temperatures, and continuous operation requirements.

In mining and metallurgical operations, the 51304584-100 is integrated into conveyor safety systems, crusher protection circuits, and ventilation control systems, where its robust diagnostic capabilities reduce unplanned downtime and support compliance with mining safety regulations.

In pharmaceutical and fine chemical manufacturing, the module supports batch process safety systems where precise, auditable I/O performance is required to meet GMP and process safety management (PSM) standards. Its compatibility with Honeywell’s Safety Builder configuration environment simplifies validation documentation and change management workflows.

Product Compatibility FAQ

Q1: Is the Honeywell 51304584-100 compatible with existing FSC racks and backplanes without hardware modification?
Yes. The 51304584-100 is a standard FSC platform module designed for direct installation into FSC-compatible rack assemblies. No hardware modification is required. However, channel assignments, diagnostic configurations, and voting logic must be verified and updated in the FSC Safety Builder configuration tool to reflect the new module’s slot position. ZYPLC recommends performing a full I/O checkout and functional test after installation to confirm correct signal mapping before returning the system to operational service.

Q2: Can the 51304584-100 be used in a redundant I/O architecture, and what voting configurations are supported?
Yes. The FSC platform supports redundant I/O configurations including 1oo1D (one-out-of-one with diagnostics), 1oo2, and 2oo3 voting architectures. The 51304584-100 can be deployed in these configurations subject to the system’s overall SIL verification and the specific safety function requirements defined in the Safety Requirement Specification. System architects should consult the FSC System Engineering Manual and perform a SIL verification calculation to confirm that the selected architecture meets the required PFD (Probability of Failure on Demand) targets for each safety instrumented function.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and what support is available for long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation covers functional defects identified under normal operating conditions consistent with the module’s published specifications. All units are functionally tested prior to dispatch to verify I/O channel integrity, communication performance, and diagnostic functionality. For long-term maintenance planning, ZYPLC maintains availability subject to RFQ confirmation of the 51304584-100 and related FSC platform components, enabling customers to establish scheduled replacement programs aligned with their plant turnaround cycles. For technical inquiries, spare parts planning, or urgent replacement requirements, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
