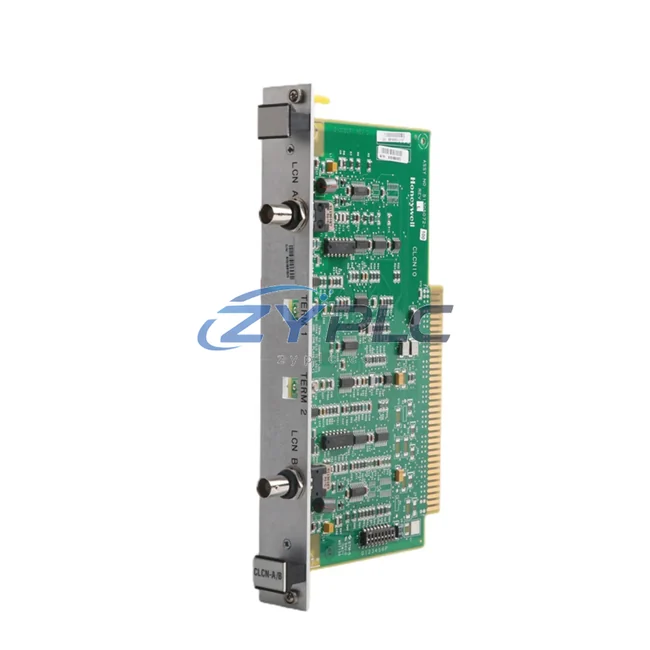

Honeywell 51305072-100 LCN I/O Card for TDC 3000

Honeywell 51305072-100 LCN I/O Card for TDC 3000: Control System Integration and Upstream-Downstream Coordination

The Honeywell 51305072-100 is a Local Control Network (LCN) I/O Card engineered for seamless integration within the Honeywell TDC 3000 and TPS (Total Plant Solution) Distributed Control System architecture. As a critical node in the I/O layer of a multi-tier automation hierarchy, this module bridges field-level signal acquisition with the supervisory control and data processing functions of the LCN backbone. Its role extends beyond simple signal conditioning — it is a structural component that defines the reliability, scalability, and long-term maintainability of the entire control platform.

In modern industrial automation, no single module operates in isolation. The 51305072-100 is designed to function as part of a coordinated system where every layer — from the field instrument to the operator workstation — must communicate with precision and consistency. Understanding this module’s position within the broader TDC 3000 architecture is essential for engineers responsible for system commissioning, expansion, and lifecycle management.

Product Specification Table

System Compatibility Notes

The 51305072-100 LCN I/O Card operates within a tightly coordinated system architecture where multiple hardware layers must function as a unified whole. At the controller level, Honeywell’s Advanced Process Manager (APM) and High-Performance Process Manager (HPM) serve as the primary processing nodes, executing control strategies and communicating with I/O cards over the LCN. The 51305072-100 feeds real-time field data directly into these controllers, ensuring that process variables are accurately reflected in the control logic without latency or signal degradation.

Power integrity is maintained through Honeywell’s TDC 3000 Power Supply Modules, which provide regulated DC power to the card cage backplane. Stable power delivery is non-negotiable in process control environments — any fluctuation can compromise I/O card performance and introduce measurement errors. The 51305072-100 is designed to operate within the power envelope defined by the TDC 3000 backplane, ensuring compatibility with both standard and redundant power configurations.

At the network layer, the LCN backbone connects all major system nodes — including the Universal Control Network (UCN) gateway modules and Network Interface Modules (NIM) — enabling plant-wide data exchange between the I/O layer and higher-level supervisory systems. The 51305072-100 participates in this network as a data source, transmitting field measurements and receiving setpoint and control output signals from the APM or HPM controllers.

For human-machine interface functions, Honeywell’s Universal Station (US) and Global User Station (GUS) workstations provide operators with real-time visibility into the process data collected by the 51305072-100. Alarm management, trend displays, and process graphics all depend on the accurate and timely delivery of I/O data from cards like the 51305072-100 to the operator interface layer.

Terminal assemblies and Honeywell FTA (Field Termination Assembly) modules provide the physical connection point between field wiring and the I/O card, ensuring clean signal routing and simplified maintenance access. In redundant architectures, Honeywell Redundant Controller Modules and dual I/O card configurations allow the system to maintain continuous operation even during a single-point hardware failure — a critical requirement in refinery, power generation, and chemical processing applications.

The 51305072-100 is also compatible with Honeywell Data Hiway (DHW) connected subsystems, enabling integration with legacy field devices and remote I/O panels that communicate over the older Data Hiway protocol. This backward compatibility is a key advantage for plants that are incrementally modernizing their TDC 3000 infrastructure without a full system replacement.

Industrial Application Notes

The Honeywell 51305072-100 LCN I/O Card finds application across a wide range of process industries where the TDC 3000 and TPS platforms have been deployed as the primary control infrastructure.

In petroleum refining and petrochemical processing, the TDC 3000 system manages complex, continuous processes including distillation columns, reactor temperature control, and pressure regulation. The 51305072-100 provides the I/O interface for critical measurement loops — including temperature, pressure, flow, and level — that feed into the APM or HPM control strategies. System uptime is paramount in these environments, and the availability of tested, warranted replacement I/O cards like the 51305072-100 directly supports maintenance planning and unplanned outage recovery.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the TDC 3000 platform is used for boiler management, turbine control, and balance-of-plant automation. The 51305072-100 supports the dense I/O requirements of these applications, where hundreds of analog and discrete signals must be processed simultaneously with high reliability.

In water and wastewater treatment plants, the TDC 3000 system manages pump sequencing, chemical dosing, filtration control, and effluent monitoring. The 51305072-100 provides the signal interface for field instruments distributed across large geographic areas, supporting both local control and centralized SCADA integration.

In mining and metallurgical processing — including ore beneficiation, smelting, and electrolytic refining — the TDC 3000 platform controls high-temperature processes and material handling systems. The 51305072-100 supports the I/O requirements of these demanding environments, where signal integrity and module durability are essential for safe and efficient operation.

In pharmaceutical and fine chemical manufacturing, where batch process control and regulatory compliance are critical, the TDC 3000 system provides the audit trail and process data integrity required by GMP standards. The 51305072-100 contributes to this framework by ensuring accurate and repeatable signal acquisition across all monitored process variables.

Product Compatibility FAQ

Q1: Is the Honeywell 51305072-100 compatible with both TDC 3000 and TPS system configurations?
Yes. The 51305072-100 is designed for the Honeywell TDC 3000 platform and is fully compatible with TPS (Total Plant Solution) system configurations, which represent the evolved architecture built on the TDC 3000 foundation. It installs into the standard TDC 3000 card cage and communicates over the LCN backbone, making it interchangeable within both system generations. Engineers should verify the specific card cage slot assignment and FTA wiring configuration against the existing system documentation before installation.

Q2: Can the 51305072-100 be used in a redundant I/O architecture, and what are the configuration requirements?
The 51305072-100 supports redundant I/O configurations when paired with the appropriate Honeywell redundancy hardware and system software settings. Redundant I/O in the TDC 3000 architecture typically requires matched card pairs installed in designated primary and secondary slots within the card cage, along with compatible FTA modules that support dual-card wiring. System configuration must be performed through the Honeywell Engineering Console to enable redundancy switchover logic. Our technical team can provide guidance on redundancy configuration requirements specific to your system revision.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers the 51305072-100 against defects in materials and workmanship under normal operating conditions. Each unit is tested and inspected prior to shipment to verify functional performance against TDC 3000 I/O card specifications. For maintenance engineers managing aging TDC 3000 infrastructure, this warranty provides assurance that replacement modules will perform reliably from the moment of installation — reducing the risk of repeat failures and supporting planned maintenance intervals. Warranty claims are handled directly through our support team, with replacement or repair turnaround designed to minimize system downtime.
