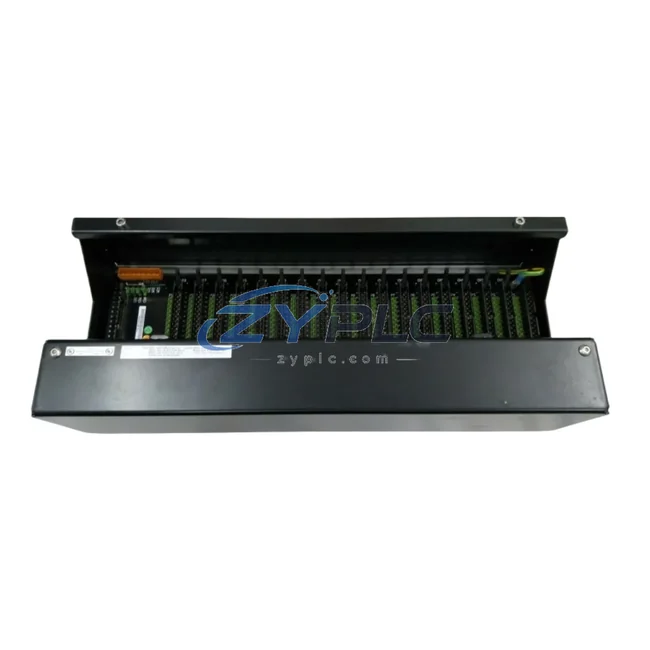

Honeywell 51305341-100 AI Module TDC 3000

Honeywell 51305341-100 AI Module TDC 3000: Replacement and Sourcing Information

The Honeywell 51305341-100 is a high-performance Analog Input Module engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to meet the rigorous demands of continuous process industries — including petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — this module delivers accurate, low-latency signal acquisition that forms the backbone of industrial automation systems. By ensuring that field-level analog signals are captured with maximum fidelity and minimal processing overhead, the 51305341-100 enables control engineers to make faster, more informed decisions that directly reduce unplanned downtime, cut unplanned downtime, and extend the operational life of critical plant assets.

In modern industrial facilities, the cost of poor signal quality is rarely measured in hardware alone. Inaccurate or delayed analog readings cascade through the control loop — causing over-actuation of final control elements, unnecessary cycling of variable-speed drives, and inflated energy consumption across entire production lines. The Honeywell 51305341-100 addresses this at the source, providing stable, high-resolution analog input channels that feed clean data into the TDC 3000 High-Performance Manager (HPM) for real-time process optimization.

Product Specification Table

System Compatibility and Application

The 51305341-100 does not operate in isolation — it is a precision instrument within a tightly integrated maintenance planning ecosystem. In a typical TDC 3000 installation, field transmitters feed 4–20 mA signals into the 51305341-100, which converts them to digital values consumed by the Honeywell TDC 3000 HPM (High-Performance Manager) for closed-loop control execution. The HPM’s control strategies — PID, cascade, feedforward — rely entirely on the accuracy of this analog input stage to calculate optimal output commands.

Those output commands are then passed to analog output modules such as the Honeywell 51305348-100 Analog Output Module, which drives control valves, dampers, and positioners. When the 51305341-100 delivers clean, noise-free readings, the output stage avoids unnecessary valve hunting — a common source of unplanned downtime and mechanical wear in process plants. Paired with the Honeywell 51305406-100 Digital Input Module, the system gains discrete status feedback from motor starters, breakers, and interlock circuits, enabling the HPM to make energy-conscious switching decisions based on real equipment state rather than assumed conditions.

For drive-intensive applications — compressors, pumps, fans — the control loop output from the HPM interfaces with variable frequency drives (VFDs) via the Honeywell 51309276-150 Communication Interface Module, which bridges the TDC 3000 UCN network to field device buses. By maintaining tight control over drive speed references through accurate analog feedback from the 51305341-100, plants can operate motors at the minimum required speed for any given load condition — directly reducing kWh consumption and extending motor insulation life.

Power quality and energy metering at the panel level are supported by modules like the Honeywell 51304362-100 Power Supply Module, which conditions backplane voltage and protects the analog input circuitry from transient disturbances that would otherwise introduce measurement error. The Honeywell 51304337-150 I/O Link Interface Module extends the reach of the TDC 3000 I/O subsystem to remote marshalling cabinets, reducing field wiring costs and signal degradation over long cable runs — a key factor in maintaining the measurement accuracy that maintenance planning depends on.

At the supervisory level, the Honeywell 51303932-476 Universal Station (US) provides operators with real-time trend displays and alarm management for all analog inputs processed by the 51305341-100. Operators can monitor energy-related process variables — steam flow, cooling water temperature, compressed air pressure — and intervene before inefficiencies escalate into costly upsets. The Honeywell 51304485-100 History Module archives these analog values at configurable scan rates, enabling post-event energy audits and the identification of recurring waste patterns across shifts and production campaigns.

Network-level data integration is handled by the Honeywell 51304441-175 Network Interface Module (NIM), which connects the TDC 3000 LCN to plant-wide historian and MES systems. This allows energy KPIs derived from 51305341-100 measurements — specific energy consumption per unit of production, demand peaks, load factor — to be reported to enterprise maintenance planning platforms without manual data extraction. Completing the architecture, the Honeywell 51305348-200 Analog Input Module (an extended-channel variant) can be deployed in parallel for high-density signal acquisition applications, sharing the same backplane and HPM control strategy infrastructure.

Maintenance and Replacement Notes

In a refinery crude distillation unit, for example, the 51305341-100 continuously monitors column differential pressure, reboiler duty, and overhead condenser temperature. These three analog inputs alone determine whether the distillation column operates at its thermodynamic optimum or wastes energy through excessive reflux ratios and over-fired furnaces. With accurate, drift-free signal acquisition, the TDC 3000 HPM can implement advanced control strategies — such as real-time energy balance calculations and constraint-based optimization — that reduce furnace fuel consumption by measurable percentages per campaign.

In a pharmaceutical clean room, the same module monitors HVAC differential pressure and chilled water supply temperature. Tight control of these variables — enabled by the 51305341-100’s low-noise analog front end — allows the building management integration layer to reduce chiller compressor loading during off-peak production periods, cutting electrical demand charges without compromising environmental compliance. The module’s stable baseline also reduces the frequency of calibration interventions, lowering maintenance labor costs and minimizing the production interruptions associated with instrument recertification.

Predictive maintenance benefits are equally significant. Gradual signal drift in an aging analog input module is often the first indicator of impending failure — but only if the baseline is well-characterized. Because the 51305341-100 is supplied as a tested, verified replacement unit with a documented performance baseline, maintenance teams can establish clear drift thresholds and schedule proactive replacements during planned shutdowns rather than reacting to unplanned failures. This shift from reactive to predictive maintenance directly reduces the energy cost of emergency restarts, which typically consume 3–5× the steady-state energy of a controlled startup sequence.

Every unit shipped by ZYPLC undergoes functional testing against original Honeywell specifications before dispatch. Stock availability is maintained to support rapid deployment, and all modules are covered by a warranty terms confirmed during quotation from the date of shipment — ensuring that your investment in energy-optimized control infrastructure is protected from day one.

Product Sourcing FAQ

Q1: How does the Honeywell 51305341-100 contribute to measurable operational stability on a production line?
By providing high-accuracy analog signal acquisition, the 51305341-100 eliminates the measurement error that causes control loops to over-compensate — driving valves, dampers, and variable-speed drives harder than the process actually requires. Tighter control means less unplanned downtimed on corrective actuation, lower peak demand, and reduced wear on final control elements. In energy-intensive processes such as distillation, compression, and HVAC, even a 1–2% improvement in control loop performance translates to significant annual energy cost reductions.

Q2: Is the 51305341-100 compatible with all TDC 3000 system configurations, including older HPM and AM installations?
Yes. The 51305341-100 is designed for the Honeywell TDC 3000 platform and is compatible with High-Performance Manager (HPM), Advanced Manager (AM), and Application Module (APM) configurations. It slots into standard TDC 3000 I/O card files and communicates over the UCN and LCN network infrastructure without requiring firmware upgrades or configuration changes in most installations. If you have a specific system revision, our technical team can confirm compatibility before shipment.

Q3: What is the recommended replacement procedure, and will substituting this module cause process disruption?
In most TDC 3000 installations, analog input modules can be replaced during a planned maintenance window with minimal process impact. The HPM can be configured to hold last-good-value or switch to manual control during the swap. ZYPLC recommends coordinating replacement with your DCS engineer to verify that the replacement module’s channel configuration matches the outgoing unit. All 51305341-100 modules supplied by ZYPLC are pre-tested and ready for installation, reducing commissioning time to minutes rather than hours.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every Honeywell 51305341-100 supplied by ZYPLC is functionally tested against original manufacturer specifications prior to dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. If a module fails within the warranty period, ZYPLC will provide a replacement unit or repair service at no additional cost. Our pre-shipment testing protocol includes analog channel accuracy verification, backplane communication checks, and power consumption validation — ensuring that the module you receive performs to specification from the moment it is installed.
