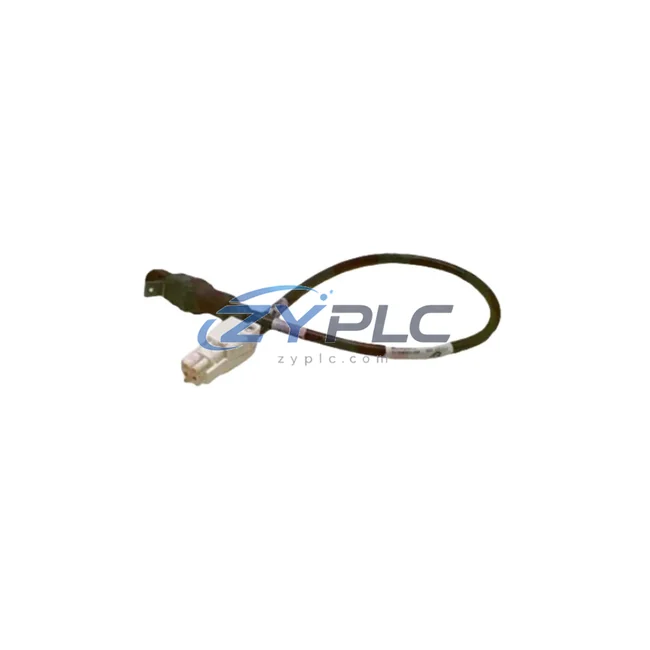

Honeywell 51305562-400 DCS Field Wiring Cable for TDC Systems

Honeywell 51305562-400 DCS Field Wiring Cable: Industrial Data Link for TDC Smart Factory Systems

The Honeywell 51305562-400 is a precision-engineered DCS field wiring cable designed to serve as the physical backbone of industrial data communication in TDC 2000 and TDC 3000 distributed control environments. In modern smart factory deployments, reliable signal transmission between field instruments, process controllers, and supervisory systems is not optional — it is the foundation upon which real-time visibility, remote diagnostics, and automated decision-making are built. The 51305562-400 delivers exactly that: a stable, interference-resistant wiring pathway that keeps your industrial network running without interruption.

From the moment a field sensor detects a process variable — whether temperature, pressure, flow, or level — the signal must travel cleanly through the wiring infrastructure before it can be interpreted by a controller or displayed on an HMI. The 51305562-400 is engineered to preserve signal integrity across this entire path, ensuring that data arriving at the High-Performance Process Manager (HPM) or Process Manager (PM) controller is accurate, timely, and actionable. Any degradation in this link introduces latency, false alarms, or worse — silent failures that go undetected until a process upset occurs.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the Honeywell 51305562-400 fits within the broader automation architecture helps engineers and procurement teams make confident sourcing decisions. In a typical TDC 3000 installation, field instruments — thermocouples, RTDs, pressure transmitters, and flow meters — connect to field termination assemblies such as the 51305430-100 termination panel, which aggregates multiple signal channels before routing them through the wiring infrastructure. The 51305562-400 cable carries these analog and discrete signals from the marshalling cabinet to the I/O subsystem of the HPM controller.

Within the HPM, the 51304516-200 HPM communication module manages the handoff between field I/O and the Universal Control Network (UCN). The UCN itself relies on dedicated coaxial trunk cabling — such as the 51309276-150 UCN cable — to interconnect multiple HPM nodes, Application Modules (AM), and the Network Interface Module (NIM). The NIM bridges the UCN to the Local Control Network (LCN), where operator workstations, historians, and SCADA gateways reside.

For plants that have migrated portions of their control architecture to Experion PKS, the MC-TAIH02 Experion I/O termination assembly and the TC-CCR014 ControlEdge remote I/O module extend the data collection reach to field areas that were previously isolated. Meanwhile, legacy PM controllers — including the 51401583-100 PM controller module — continue to operate alongside newer Experion nodes, with the 51305562-400 wiring cable providing the physical continuity that makes this hybrid architecture possible.

At the supervisory level, SCADA platforms receive consolidated process data from the LCN historian and display it on operator HMI screens. The 900H01-0102 HC900 hybrid controller, often deployed in utility or auxiliary systems adjacent to the main DCS, also feeds data into the SCADA layer via Modbus TCP or OPC-DA gateways. The 51304453-150 I/O link cable and 51304485-100 MU/PLCG module further extend the reach of the control network into remote field panels, ensuring that every process variable — no matter how distant from the control room — is captured, transmitted, and acted upon in real time. Power integrity across all these nodes is maintained by dedicated industrial power supplies such as the 51309152-175, which ensures stable 24 VDC distribution to field instruments and communication modules alike.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging DCS installations is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process information efficiently. This problem manifests as delayed alarm response, incomplete historian records, and an inability to perform meaningful root-cause analysis after process upsets. The Honeywell 51305562-400 directly addresses the physical layer of this challenge by providing a reliable, low-noise wiring pathway that eliminates signal dropout between field instruments and the DCS controller.

Protocol fragmentation is another common issue. Plants that have grown organically over decades often run multiple communication standards — Honeywell Data Hiway, HART, Modbus RTU, and Profibus DP — across different process units. The 51305562-400, when used in conjunction with appropriate gateway modules and protocol converters, enables these disparate systems to feed into a unified data backbone. This makes it possible to implement plant-wide SCADA dashboards, real-time OEE monitoring, and predictive maintenance programs without replacing the entire field wiring infrastructure.

Remote diagnostics capability is significantly enhanced when the physical wiring layer is sound. Maintenance engineers can use Experion PKS diagnostic tools to interrogate field device health, identify wiring faults, and schedule preventive maintenance — all without dispatching technicians to remote field locations. This reduces mean time to repair (MTTR), improves plant availability, and supports the transparency goals of Industry 4.0 initiatives. Every 51305562-400 cable shipped by ZYPLC undergoes pre-shipment continuity and insulation resistance testing, ensuring that the unit arriving at your site is ready for immediate installation and commissioning.

Industrial Connectivity FAQ

Q1: Is the Honeywell 51305562-400 compatible with both TDC 2000 and TDC 3000 systems?
Yes. The 51305562-400 is designed for use across Honeywell’s TDC 2000 and TDC 3000 DCS platforms. It is also compatible with legacy HPM and PM controller I/O subsystems that have been integrated into Experion PKS migration architectures. Always verify the cable length and connector type against your specific panel layout before installation.

Q2: What communication protocols does this cable support?
As a physical wiring component, the 51305562-400 supports the transmission of signals used in Honeywell’s proprietary Data Hiway and UCN protocols, as well as standard analog (4–20 mA) and discrete (24 VDC) field signals. It is not a protocol converter, but it is engineered to maintain signal integrity for all standard DCS field communication types used in TDC-series installations.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Every 51305562-400 unit sourced and supplied by ZYPLC undergoes a pre-shipment inspection that includes visual examination, continuity testing, and insulation resistance verification. Products are stored in climate-controlled warehousing to prevent moisture ingress and connector oxidation. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with direct technical support available via our sales team.

Q4: Can this cable be used in system expansion projects or new panel builds?
Absolutely. The 51305562-400 is suitable for both replacement of degraded wiring in existing installations and new panel builds where TDC 3000-compatible field wiring is required. For large-scale expansion projects involving multiple HPM nodes or remote I/O extensions, our team can assist with bill-of-materials review and bulk sourcing to ensure consistent cable specifications across all panels.
