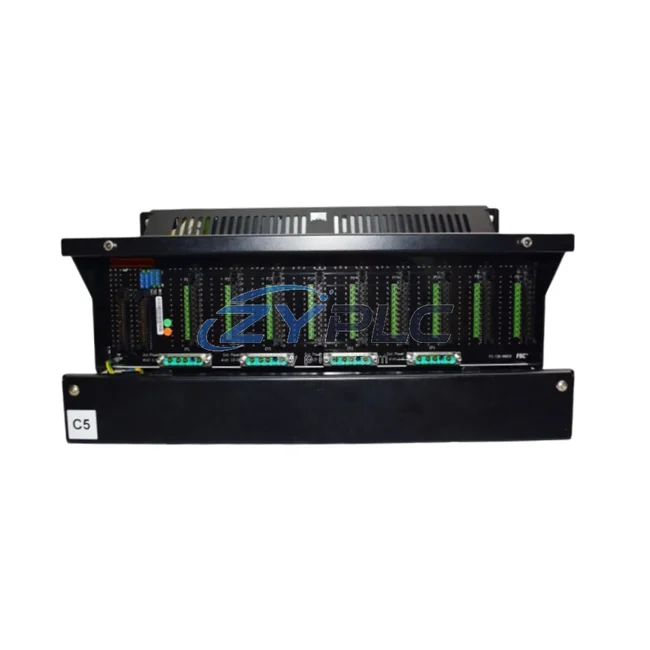

Honeywell 51305980-260 FIM for Experion PKS

Honeywell 51305980-260 FIM for Experion PKS: Control System and system integration

The Honeywell 51305980-260 Fieldbus Interface Module (FIM) is a purpose-engineered component designed to operate within the Experion PKS (Process Knowledge System) distributed control architecture. Rather than functioning as a standalone device, the 51305980-260 serves as a critical bridge between the Foundation Fieldbus H1 segment and the Experion PKS C300 controller platform, enabling seamless signal transmission, device diagnostics, and process variable integration across the full automation hierarchy. Understanding this module’s role requires examining how it fits within the layered structure of a modern industrial control system — from the field device layer through the I/O layer, controller layer, network layer, and up to the human-machine interface and supervisory layers.

Product Specification Table

System Compatibility Notes

The 51305980-260 FIM does not operate in isolation. Its value is realized only when it is correctly integrated within a coordinated Experion PKS architecture. At the controller layer, the module interfaces directly with the Honeywell C300 Process Controller (model CC-PAIH01 or CC-PAIH02), which serves as the primary execution engine for regulatory, advanced, and sequential control strategies. The C300 communicates with the FIM over the Fault Tolerant Ethernet (FTE) backbone — a dual-star, redundant network infrastructure that ensures continuous data availability even in the event of a single network path failure.

At the power layer, the 51305980-260 is housed within the Series C Modular Baseplate (SCMB), which is powered by the TC-PRS021 or TC-PRS023 Power Supply Module. These power supplies are designed to deliver stable, conditioned DC power to all modules within the chassis, including the FIM, I/O modules, and communication cards. Proper power architecture is essential for maintaining signal integrity across all four H1 fieldbus segments managed by the 51305980-260.

At the I/O layer, the FIM works in conjunction with analog and digital I/O modules such as the TC-IDD321 Digital Input Module, TC-ODD321 Digital Output Module, and TC-IAH161 Analog Input Module. While these modules handle conventional 4–20 mA and discrete signals, the 51305980-260 extends the system’s reach to Foundation Fieldbus-enabled field instruments — including smart transmitters, control valves, and positioners — that support on-device function block execution and advanced diagnostics.

For redundancy design, the 51305980-260 can be deployed in a redundant FIM pair configuration. In this arrangement, a secondary 51305980-260 module mirrors the primary, ensuring that if the active FIM experiences a fault, the standby unit assumes control without process interruption. This redundancy model aligns with the broader Experion PKS philosophy of fault-tolerant architecture, which also extends to the CC-TCF901 FTE Switch and redundant C300 controller pairs.

At the human-machine interface layer, operators interact with the system through Honeywell Experion PKS Station workstations running the Experion HMIWeb Display Builder environment. The FIM’s diagnostic data — including segment health, device communication status, and alarm conditions — is surfaced directly within the Experion operator display, enabling rapid fault identification and response without requiring separate fieldbus configuration tools during normal operations.

For engineering and commissioning purposes, the Honeywell Field Device Manager (FDM) integrates with the FIM to provide EDDL-based device configuration, calibration, and predictive maintenance scheduling. This integration reduces commissioning time and supports long-term maintenance efficiency across the full lifecycle of the control system.

Industrial Application Notes

The Honeywell 51305980-260 FIM finds application across a wide range of process industries where Foundation Fieldbus H1 is the preferred field communication standard. In oil refining and petrochemical plants, the module supports dense instrument networks where hundreds of smart transmitters and valve positioners must communicate reliably with the DCS. The FIM’s ability to manage up to four independent H1 segments from a single chassis slot significantly reduces wiring complexity and cabinet footprint in these environments.

In power generation facilities — including thermal, combined-cycle, and cogeneration plants — the 51305980-260 supports the integration of fieldbus-enabled pressure, temperature, and flow transmitters within boiler control, turbine protection, and auxiliary systems. The module’s redundancy capability is particularly valued in these applications, where downtime carries significant operational and financial consequences.

In water and wastewater treatment systems, the FIM enables centralized monitoring and control of distributed pump stations, chemical dosing systems, and filtration processes. Its compatibility with the Experion PKS C300 platform allows water utilities to standardize on a single control architecture across multiple treatment stages, simplifying operator training and spare parts management.

In pharmaceutical and fine chemical manufacturing, where process validation and data integrity are regulatory requirements, the 51305980-260 supports the collection of traceable, time-stamped process data from fieldbus instruments. This capability supports batch record generation and audit trail compliance within the Experion PKS environment.

Across all these industries, the 51305980-260 contributes to system consistency, reduces the total number of I/O cards required, and supports a modular expansion strategy that allows the control system to grow alongside the plant without requiring architectural redesign.

Product Compatibility FAQ

Q1: Is the Honeywell 51305980-260 compatible with both redundant and non-redundant C300 controller configurations?
Yes. The 51305980-260 FIM is compatible with both simplex and redundant C300 controller configurations within the Experion PKS platform. In a redundant configuration, a matched pair of FIM modules is installed in adjacent chassis slots, with the FTE network providing the communication path for switchover. The redundancy switchover is managed automatically by the Experion PKS control software, with no operator intervention required. This makes the module suitable for both standard and high-availability process control applications.

Q2: What is the maximum number of Foundation Fieldbus devices that can be connected to a single 51305980-260 module, and how does this affect system architecture planning?
The 51305980-260 supports up to four H1 fieldbus segments, with each segment capable of hosting up to 16 field devices under standard Foundation Fieldbus specifications. This gives a theoretical maximum of 64 devices per FIM module. In practice, segment loading is determined by the power budget of the H1 segment power conditioner, the communication load of the function blocks executing on field devices, and the required update rates for process variables. System architects should perform a segment load analysis during the engineering phase to ensure reliable communication and adequate power margins across all segments.

Q3: What does the cover for the 51305980-260, and what support is available for installation and commissioning?
The provided with the Honeywell 51305980-260 covers verified hardware functionality, including all communication interfaces, backplane connectors, and onboard diagnostics. Each unit is tested prior to shipment to confirm compatibility with Experion PKS system requirements. For installation and commissioning support, our engineering team is available to assist with chassis slot assignment, FTE network configuration, H1 segment wiring verification, and Experion PKS Control Builder integration. Long-term maintenance support, including spare module availability and firmware guidance, is also provided throughout the warranty period and beyond.
