Honeywell 51306816-200 Analog Input Module for TDC 3000 Systems

Honeywell 51306816-200 Industrial Network Interface for TDC 3000 Systems: Precision Data Link for Smart Factory Connectivity

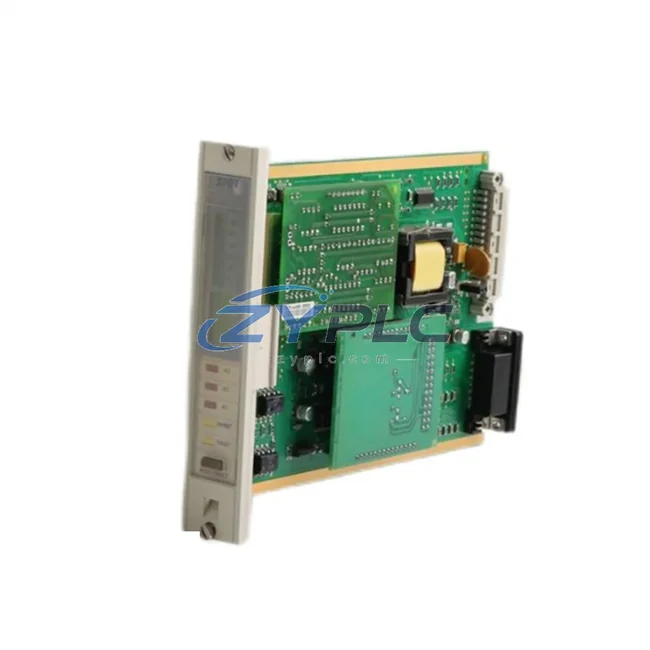

The Honeywell 51306816-200 is a high-performance Analog Input Module engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level instrumentation — including 4–20mA transmitters, RTD sensors, and thermocouple inputs — with the upper-layer control and supervisory network via the UCN (Universal Control Network) and LCN (Local Control Network) protocols. In modern smart factory environments where real-time data integrity and network stability are non-negotiable, the 51306816-200 delivers the signal fidelity and protocol compatibility required to sustain continuous, transparent production operations.

From signal acquisition at the field device level through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, the 51306816-200 occupies a foundational role in the TDC 3000 data architecture. It enables seamless communication between process instrumentation and the Honeywell HPM (High-Performance Process Manager), ensuring that analog process variables — temperature, pressure, flow, and level — are accurately digitized and transmitted across the UCN backbone to SCADA and HMI layers without latency or data loss.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TDC 3000 control architecture, the Honeywell 51306816-200 sits at the intersection of field instrumentation and the plant-wide control network. At the field level, process sensors — such as pressure transmitters, RTD temperature probes, and flow meters — feed analog signals directly into the 51306816-200’s input channels. The module performs high-resolution analog-to-digital conversion and packages the data for transmission across the UCN network to the Honeywell HPM (High-Performance Process Manager), which executes the control logic and issues setpoint commands back to final control elements.

Within the same TDC 3000 node, the 51306816-200 operates alongside complementary modules such as the Honeywell 51304485-100 Analog Output Module, which drives control valves and actuators based on the processed data, and the Honeywell 51309276-175 Digital Input Module, which captures discrete on/off signals from limit switches and motor starters. Together, these modules form a complete I/O subsystem within the HPM card cage, all communicating over the LCN to the Honeywell Universal Station (US) or GUS (Global User Station) HMI consoles, where operators monitor live process trends, configure alarms, and execute manual overrides.

At the supervisory layer, data collected by the 51306816-200 flows upward through the LCN to the Honeywell History Module (HM) for long-term process data archiving, and to the Honeywell Application Module (AM) for advanced process calculations and batch sequencing. Integration with third-party SCADA platforms is achieved via the Honeywell Data Hiway Gateway or OPC-DA/OPC-UA server interfaces, enabling plant-wide visibility across multi-vendor environments. For remote diagnostics and predictive maintenance, the 51306816-200’s status and channel health data are accessible through the Honeywell Network Interface Module (NIM), which bridges the TDC 3000 UCN to Ethernet-based plant networks and remote monitoring systems.

In distributed plant topologies where remote process areas must be connected to the central control room, the 51306816-200 can be deployed within remote HPM nodes, with data transmitted over fiber-optic UCN segments to the main LCN. This architecture supports integration with Honeywell FSC (Fail-Safe Controller) safety systems and Honeywell Experion PKS migration platforms, ensuring a clear upgrade path for plants transitioning from legacy TDC 3000 infrastructure to modern DCS environments without disrupting ongoing production.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is protocol fragmentation — the inability of older analog I/O modules to communicate with modern Ethernet-based SCADA, MES, or ERP systems. The Honeywell 51306816-200 addresses this directly by maintaining full compatibility with the TDC 3000 UCN/LCN protocol stack, which remains the communication backbone for thousands of operating plants in the refining, petrochemical, power generation, and pharmaceutical industries.

By preserving the integrity of the UCN data link, the 51306816-200 eliminates the data island problem — where field instruments operate in isolation from the control system due to failed or incompatible I/O modules. A single failed analog input card can blind operators to critical process variables, triggering unplanned shutdowns and safety incidents. Replacing the failed module with a tested, warranty-backed 51306816-200 restores full data visibility within minutes, without requiring reconfiguration of the HPM control strategy or LCN network topology.

For plants pursuing production line transparency and digital transformation, the 51306816-200 supports the gradual integration of edge computing and IIoT gateways alongside the existing TDC 3000 infrastructure. By maintaining a stable, high-fidelity analog input layer, it provides the clean, reliable process data that edge analytics platforms require for machine learning-based anomaly detection, predictive maintenance scheduling, and maintenance planning. This approach allows industrial operators to extend the productive life of their TDC 3000 investment while progressively building toward a fully connected smart factory architecture.

System expansion is equally straightforward: additional 51306816-200 modules can be installed in available HPM card cage slots to increase analog input capacity as process requirements grow, with no impact on existing UCN network performance. All modules are pre-tested against Honeywell factory specifications prior to shipment, with full functional verification of each input channel, ensuring plug-and-play installation and immediate return to service.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 51306816-200 support, and is it compatible with modern SCADA systems?
The 51306816-200 operates natively on the Honeywell TDC 3000 UCN (Universal Control Network) and LCN (Local Control Network) protocols. Integration with modern SCADA platforms is achieved through Honeywell’s NIM (Network Interface Module) or OPC server gateways, which translate UCN/LCN data into standard OPC-DA or OPC-UA formats compatible with Wonderware, iFIX, Ignition, and other leading SCADA systems.

Q2: How does the 51306816-200 ensure network stability and minimize communication latency in a TDC 3000 system?
The module is designed to operate within the deterministic UCN communication cycle of the TDC 3000 platform, which provides fixed scan rates and guaranteed data delivery to the HPM controller. This eliminates the variable latency associated with Ethernet-based I/O systems and ensures that analog process values are updated at consistent intervals, critical for tight process control loops in refining and chemical applications.

Q3: Can the 51306816-200 be installed without reconfiguring the existing TDC 3000 control strategy?
Yes. The 51306816-200 is a direct replacement module for the TDC 3000 HPM card cage. It is hardware-compatible with existing backplane connectors and requires no changes to the HPM control database or LCN network configuration. After physical installation, the module is automatically recognized by the HPM and resumes data acquisition on all configured input channels without operator intervention.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every Honeywell 51306816-200 unit supplied by ZYPLC undergoes comprehensive functional testing prior to shipment, including verification of all analog input channels across the full 4–20mA, RTD, and thermocouple input ranges, UCN communication handshake testing, and power supply integrity checks. The warranty terms confirmed during quotation covers all hardware defects and functional failures under normal operating conditions, with direct technical support available throughout the warranty period.
