Honeywell 51307619-200 Analog Output TDC 3000

Honeywell 51307619-200 Analog Output TDC 3000: Replacement and Sourcing Information

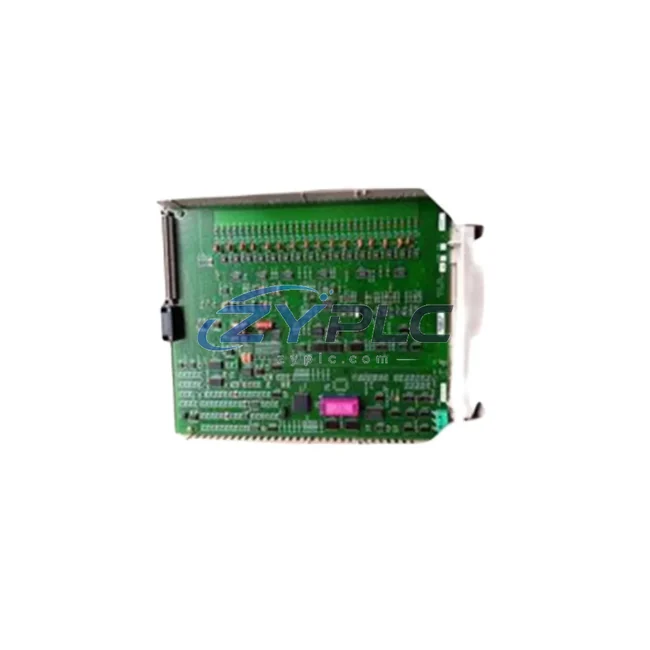

The Honeywell 51307619-200 is a high-performance analog output module engineered for the TDC 3000 Distributed Control System (DCS). Designed to deliver precise 4–20 mA signal outputs to field devices, this module plays a critical role in reducing unplanned downtime across process industries including oil and gas, chemical manufacturing, power generation, and pulp and paper. By maintaining accurate and stable output signals, the 51307619-200 ensures that control valves, variable frequency drives, and actuators respond with minimal overshoot and energy-inefficient cycling — directly contributing to lower operational operating load and improved production line throughput.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious plant, the analog output module is far more than a signal conduit — it is the final execution link in a chain of intelligent control decisions. The Honeywell 51307619-200 operates within the TDC 3000 High-Performance Manager (HPM), receiving setpoint commands from the Honeywell Universal Control Network (UCN) and translating them into precise field-level signals. This tight integration with the HPM ensures that every output command is executed with minimal latency, preventing the energy-wasting oscillations that occur when control loops are poorly tuned or hardware response is sluggish.

When paired with the Honeywell 51304485-100 Analog Input Module, the 51307619-200 forms a closed-loop feedback architecture that continuously monitors process variables and adjusts outputs in real time. This feedback loop is essential for energy-efficient motor and drive control: by feeding accurate process data back through the Honeywell 51401584-100 Data Hiway Interface Module, the system can dynamically adjust the speed reference signals sent to variable frequency drives (VFDs), reducing motor load during low-demand periods without sacrificing process stability.

The module also integrates seamlessly with the Honeywell 51309276-150 Power Supply Module, which provides stable backplane power across the TDC 3000 card file. A stable power supply is a prerequisite for accurate analog output — voltage fluctuations translate directly into signal drift, which in turn causes unnecessary actuator movement and unplanned downtime. The 51307619-200’s low-power design further reduces the thermal load on the card file, extending the service life of adjacent modules such as the Honeywell 51304516-100 Analog Input Module and the 51309218-175 Communication Module.

For plants operating with Profibus DP or HART-enabled field instruments, the 51307619-200 can be coordinated through the Honeywell 51304453-100 HART Multiplexer Interface, enabling asset management software to monitor output channel health and detect calibration drift before it impacts energy efficiency. This predictive capability is central to reducing unplanned downtime — a major source of unplanned downtime in batch and continuous process environments.

In drive-intensive applications, the analog output from the 51307619-200 serves as the speed reference for Honeywell-compatible variable frequency drives and servo amplifiers. By delivering a clean, noise-free 4–20 mA signal, the module ensures that drives operate at their most efficient point on the torque-speed curve, avoiding the excess heat generation and energy draw associated with signal noise or ground loops. This is particularly valuable in pump and compressor control, where even a 1% improvement in drive efficiency can translate into significant annual operational stability at scale.

Maintenance and Replacement Notes

On the plant floor, the Honeywell 51307619-200 contributes to maintenance planning through three primary mechanisms: precise setpoint delivery, reduced control loop cycling, and stable field device operation.

In a typical refinery or chemical plant running continuous processes, control valves are among the largest consumers of instrument air and mechanical energy. When an analog output module delivers imprecise or noisy signals, control valves hunt — oscillating around the setpoint and consuming excess actuator energy while also accelerating valve seat wear. The 51307619-200’s high-linearity output eliminates this hunting behavior, allowing valves to settle quickly and remain stable, reducing both operating load and maintenance frequency.

For production lines with variable throughput demands, the module enables dynamic load matching. By accurately transmitting speed reference signals to VFDs controlling conveyor motors, cooling fans, and process pumps, the TDC 3000 system — anchored by modules like the 51307619-200 — can reduce motor speeds during low-demand periods, capturing the cubic relationship between motor speed and power consumption. A 20% reduction in motor speed, for example, can yield up to a 49% reduction in power draw, a saving that compounds across dozens of motors in a large facility.

Predictive maintenance is another area where the 51307619-200 delivers energy value. By maintaining consistent output signal quality, the module allows the TDC 3000 system to detect anomalies in field device response — a valve that requires an unusually high signal to achieve a given position, for instance, may indicate mechanical wear or actuator degradation. Early detection of these conditions, enabled by the stable baseline provided by the 51307619-200, allows maintenance teams to schedule interventions during planned shutdowns rather than responding to emergency failures, which are far more energy-intensive to recover from.

All units of the Honeywell 51307619-200 supplied by ZYPLC are sourced from verified inventory, subjected to full functional testing under load conditions, and shipped with a warranty terms confirmed during quotation. This testing protocol ensures that every module delivered to your facility performs to Honeywell’s original specifications from day one, eliminating the energy and productivity losses associated with infant-failure hardware.

Product Sourcing FAQ

Q1: How does the Honeywell 51307619-200 contribute to measurable operational stability in a process plant?
The 51307619-200 delivers high-linearity 4–20 mA outputs that minimize control loop hunting in valves and drives. Stable, accurate setpoint signals allow VFDs and actuators to operate at their optimal efficiency points, reducing unnecessary energy draw. In pump and compressor applications, eliminating signal-induced oscillation can help restore stable operation when a compatible replacement is required.

Q2: Is the 51307619-200 compatible with both TDC 3000 and TotalPlant Solution (TPS) systems?
Yes. The 51307619-200 is designed for the Honeywell TDC 3000 platform and is also compatible with TotalPlant Solution (TPS) environments that retain TDC 3000 card file infrastructure. It operates within the High-Performance Manager (HPM) and communicates over the Local Control Network (LCN) and Universal Control Network (UCN). Compatibility with specific card file revisions should be verified against your system’s hardware revision documentation.

Q3: What is the recommended replacement or upgrade path if the 51307619-200 is no longer available?
For plants considering migration, Honeywell’s Experion PKS platform offers equivalent analog output functionality with enhanced diagnostics and condition monitoring capabilities. However, for facilities committed to maintaining TDC 3000 infrastructure, the 51307619-200 remains the correct replacement module. ZYPLC supports RFQ sourcing for tested units to support ongoing maintenance needs.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every Honeywell 51307619-200 unit supplied by ZYPLC undergoes functional testing that verifies output channel linearity, signal accuracy across the 4–20 mA range, and backplane communication integrity. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Units that fail testing are not shipped. Replacement or repair is provided at no additional cost within the warranty period.
