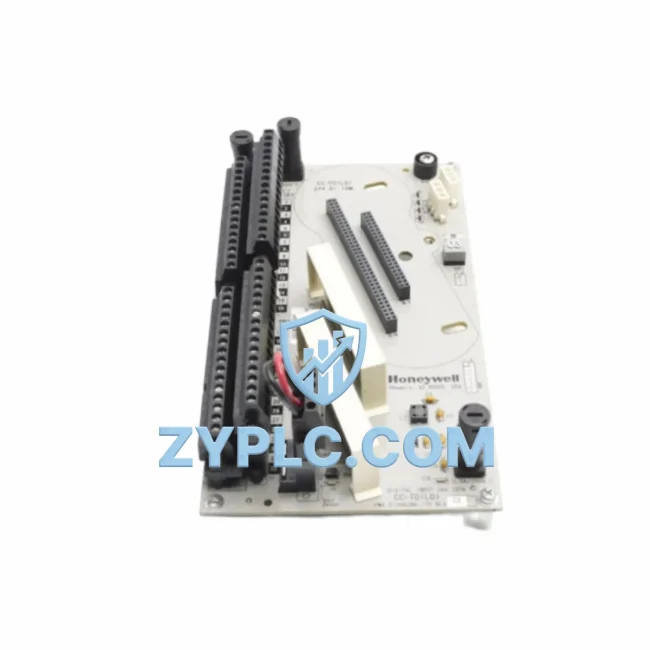

Honeywell 51308386-175 CC-TDIL01 Industrial Network Interface for Experion PKS Systems

Honeywell 51308386-175 CC-TDIL01: Industrial Data Link for Experion PKS Smart Factory Networks

The Honeywell 51308386-175 CC-TDIL01 is a high-performance DCS Digital Input Module engineered for seamless integration within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. Designed to serve as a critical node in the industrial data chain, this module bridges field-level signal acquisition with upper-layer SCADA, HMI, and enterprise systems — enabling real-time visibility, remote diagnostics, and transparent production line monitoring across smart factory environments.

In modern industrial automation, the ability to reliably capture, transmit, and process discrete digital signals from field devices is foundational to operational efficiency. The CC-TDIL01 fulfills this role by accepting digital input signals from sensors, limit switches, proximity detectors, and field transmitters, then converting and forwarding structured data through the Experion PKS C300 Controller backbone. This tightly integrated communication pathway ensures sub-millisecond data latency and deterministic signal delivery — critical requirements for process safety and real-time control loops.

Network Communication Table

Connected Automation Data Flow

The CC-TDIL01 operates as a front-end signal acquisition node within a layered industrial network. At the field level, digital signals from devices such as Honeywell STT850 Smart Temperature Transmitters, pressure switches, and discrete proximity sensors are wired directly into the module’s input terminals. These signals are then encoded and transmitted over the Honeywell C300 Controller I/O Link — a deterministic, high-speed communication bus that connects the CC-TDIL01 to the Honeywell C300 Process Controller, the computational core of the Experion PKS architecture.

Within the C300 controller, process logic executes against the incoming digital states, triggering control outputs through companion modules such as the CC-TDOL01 Digital Output Module and CC-TAIX01 Analog Input Module. For applications requiring analog signal integration alongside discrete inputs, the CC-TDIL01 is commonly deployed in parallel with the CC-TAOX01 Analog Output Module, enabling coordinated multi-variable control strategies across the same controller chassis.

Data aggregated at the C300 level is forwarded upstream via Fault Tolerant Ethernet (FTE) — Honeywell’s redundant, dual-ring Ethernet architecture — to the Experion PKS Application Server and connected Experion Operator Stations. This FTE backbone, typically implemented over managed industrial Ethernet switches such as the Honeywell FSC Safety Manager network infrastructure or third-party DIN-rail switches, ensures zero-packet-loss data delivery even during single-link failures. Operators monitoring the Experion HMIWeb Display Builder interface receive live digital status updates with alarm annunciation latency under 500 milliseconds.

For facilities integrating legacy field devices or third-party PLCs, the CC-TDIL01 data stream can be bridged through Honeywell Experion PKS OPC Server to external SCADA platforms, MES systems, or cloud-based analytics engines. Remote I/O expansion is supported via Honeywell CIOM-A I/O Module chassis, allowing engineers to extend the digital input network across geographically distributed process units without additional controller hardware. Edge gateway devices can further aggregate CC-TDIL01 data for IIoT dashboards, enabling predictive maintenance workflows and real-time KPI tracking at the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy field devices communicating over HART, Modbus RTU, or proprietary serial protocols that cannot natively interface with modern DCS platforms. The CC-TDIL01, operating within the Experion PKS ecosystem, addresses this by providing a standardized digital input gateway that abstracts field-level signal diversity into a unified data model consumable by the C300 controller and upstream SCADA systems.

Data silos — isolated islands of process information trapped within standalone PLCs, standalone HMI panels, or disconnected safety systems — are eliminated when the CC-TDIL01 is deployed as part of a holistic Experion PKS network. By channeling all discrete digital states through the FTE backbone, plant engineers gain a single-pane-of-glass view of field device status across multiple process units, dramatically reducing mean time to diagnose (MTTD) for process faults.

Remote monitoring and diagnostics are further enhanced through Experion PKS’s built-in asset management tools. Maintenance teams can interrogate CC-TDIL01 module health, channel diagnostics, and communication status remotely from the Experion Station without requiring physical access to the field cabinet — a capability that reduces unplanned downtime and supports predictive maintenance strategies. For multi-site operations, VPN-secured remote access to the Experion Application Server extends this diagnostic capability across geographic boundaries.

Production line transparency is achieved by mapping CC-TDIL01 digital input states to Experion PKS process displays, trend historians, and alarm management systems. Every discrete signal — from motor run/stop status to valve open/close confirmation — becomes a traceable, time-stamped data point within the plant historian, enabling post-event analysis, regulatory compliance reporting, and continuous process improvement initiatives.

System scalability is a core design principle of the Experion PKS platform. As production capacity grows, additional CC-TDIL01 modules can be added to existing CIOM-A chassis without controller reconfiguration, and new C300 controllers can be networked into the FTE ring with minimal engineering effort. This modular expansion model protects capital investment and supports phased smart factory upgrade programs.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell CC-TDIL01 support, and is it compatible with third-party SCADA systems?
The CC-TDIL01 communicates natively over the Honeywell C300 I/O Link and Fault Tolerant Ethernet (FTE) within the Experion PKS architecture. For third-party SCADA integration, data is accessible via the Experion PKS OPC DA/UA Server, enabling connectivity to platforms such as Wonderware, iFIX, Ignition, and other OPC-compliant systems. Direct Modbus or PROFIBUS connectivity requires an appropriate protocol gateway module.

Q2: How does the CC-TDIL01 ensure network stability and minimize communication latency in high-demand process environments?
The module leverages Honeywell’s Fault Tolerant Ethernet (FTE) dual-ring architecture, which provides automatic failover in under 100 milliseconds in the event of a network link failure. The C300 I/O Link operates on a deterministic scan cycle, ensuring consistent digital input update rates regardless of network load. All units supplied by ZYPLC are pre-tested for communication integrity prior to shipment.

Q3: Can the CC-TDIL01 be integrated into an existing Experion PKS system without a full system upgrade?
Yes. The CC-TDIL01 is compatible with Experion PKS releases R400 through R520 and later. It can be added to an existing CIOM-A I/O chassis as a hot-swap expansion without requiring controller downtime in supported configurations. ZYPLC’s technical team can advise on firmware compatibility and integration requirements for your specific Experion PKS release.

Q4: What warranty and quality assurance does ZYPLC provide for the Honeywell 51308386-175 CC-TDIL01?
Every Honeywell 51308386-175 CC-TDIL01 supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and communication failures. All modules undergo functional testing — including digital input channel verification, I/O Link communication validation, and power integrity checks — before shipment. In-stock units are available for same-week global dispatch. For volume orders or urgent requirements, contact our team directly.
