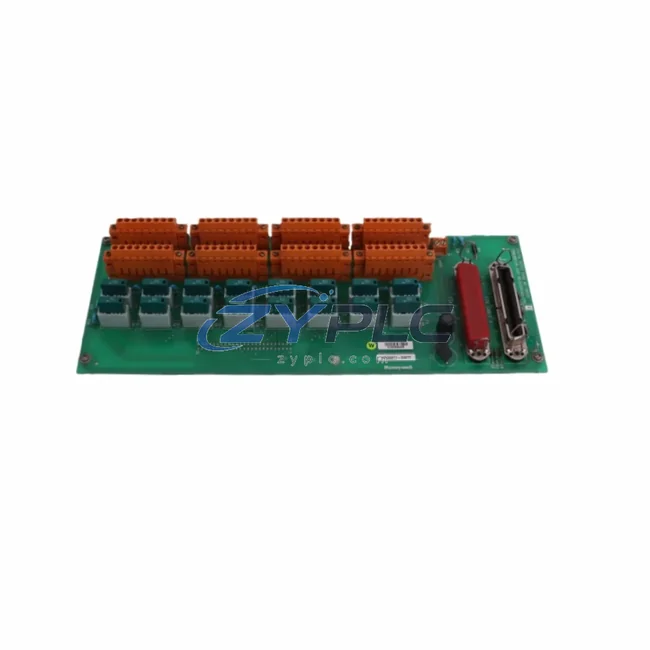

Honeywell 51309150-175 Analog Output Module

Honeywell 51309150-175 Analog Output Module: Precision Control for TDC 3000 Automation Efficiency

The Honeywell 51309150-175 is a high-performance Analog Output Module engineered for the Honeywell TDC 3000 distributed control system platform. Designed to deliver precise 4–20 mA analog signal output to field devices, this module plays a critical role in reducing unplanned downtime risk across process automation environments. By ensuring accurate, low-drift signal transmission to control valves, variable frequency drives (VFDs), and actuator systems, the 51309150-175 directly contributes to tighter loop control, reduced overshoot, and measurable improvements in overall plant energy efficiency.

In modern industrial facilities — from petrochemical refineries to power generation plants — unplanned downtime often originates not from major equipment failures, but from subtle signal inaccuracies in the control layer. A miscalibrated or degraded analog output card can cause a control valve to hunt continuously, a pump to run at non-optimal speed, or a heat exchanger to cycle inefficiently. The Honeywell 51309150-175 eliminates these inefficiencies by maintaining stable, repeatable output signals that keep downstream actuators operating precisely within their designed setpoints.

Product Specification Table

System Compatibility and Application

The Honeywell 51309150-175 does not operate in isolation — it is a precision component within a broader industrial automation system. In a typical TDC 3000 installation, the module interfaces with the Honeywell High-Performance Process Manager (HPM), which coordinates process control loops across the plant. The HPM relies on accurate analog output signals from modules like the 51309150-175 to issue corrective commands to field devices without unnecessary overcorrection — a key factor in reducing unplanned downtime at the actuator level.

On the drive side, the 51309150-175 output signal is commonly used to command variable frequency drives (VFDs) such as those in the Honeywell or third-party drive families, adjusting motor speed in real time based on process demand. This dynamic speed regulation — rather than fixed-speed operation — is one of the most impactful operational-efficiency strategies in industrial automation, often reducing motor load by 20–50% in pump and fan applications.

For data visibility, the TDC 3000 platform integrates with the Honeywell Universal Control Network (UCN) and Local Control Network (LCN), enabling real-time transmission of output status and loop performance data to the Honeywell Global User Station (GUS) or operator consoles. This closed-loop feedback architecture ensures that any deviation in output signal quality — such as a channel going to failsafe — is immediately visible to operators, preventing prolonged unplanned downtime from undetected control errors.

The 51309150-175 also works in conjunction with Honeywell analog input modules (such as the 51304485-100 series) that feed process variable data back into the control loop. Together, these I/O modules form the sensing and actuation backbone of the TDC 3000 system. Complementary Honeywell power supply modules — including the 51401288-100 and related backplane power units — ensure stable voltage delivery to the output module, preventing signal noise that could cause inefficient actuator behavior.

In facilities that have integrated Honeywell’s Plant Information Management System (PIMS) or third-party condition monitoring platforms via the Honeywell Data Hiway (DHW) interface, the analog output data from the 51309150-175 can be logged and trended over time. This historical data supports energy audits, identifies chronic inefficiencies in specific control loops, and provides the evidence base for predictive maintenance decisions — all without requiring additional hardware investment.

Maintenance and Replacement Notes

In real production environments, the impact of a reliable, accurate analog output module like the Honeywell 51309150-175 is felt across multiple dimensions of plant performance. Consider a continuous process line in a chemical plant where the TDC 3000 system manages dozens of control loops simultaneously. If even a handful of analog output channels exhibit drift or instability, the resulting control valve oscillation increases pressure drop across the system, forces pumps to work harder, and elevates overall operating load — often without triggering any alarm.

Replacing a degraded or failed analog output module with a tested, fully functional 51309150-175 restores loop stability immediately. Operators report tighter setpoint adherence, reduced valve travel (which also extends valve seat life), and measurable reductions in utility consumption within hours of the swap. In steam-intensive processes, stable analog output control of heat exchanger bypass valves can reduce steam consumption by several percent — translating directly into fuel cost savings.

From a production rhythm (takt time) perspective, unstable analog outputs introduce variability into batch processes and continuous lines alike. A control loop that hunts — oscillating around its setpoint rather than holding steady — introduces timing uncertainty that can cascade into downstream quality issues, requiring rework or extended cycle times. The 51309150-175, by maintaining precise output, helps production lines achieve consistent cycle times and reduces the frequency of quality-related stoppages.

Predictive maintenance programs also benefit directly from stable analog output performance. When output modules are functioning correctly, deviations in loop performance data (captured via the TDC 3000’s historian or PIMS integration) more reliably indicate actual field device degradation — such as a sticking valve or a failing actuator — rather than masking the root cause behind control system noise. This improves the signal-to-noise ratio of maintenance alerts and allows maintenance teams to prioritize interventions based on real equipment condition rather than false positives.

All units supplied by ZYPLC undergo full functional testing prior to shipment, verifying output channel accuracy, signal linearity, and communication integrity within the TDC 3000 backplane environment. This pre-shipment validation ensures that the module performs to specification from the moment it is installed, minimizing commissioning time and eliminating the risk of introducing a defective component into a live production system. Every 51309150-175 is backed by a warranty terms confirmed during quotation, with stock maintained for rapid dispatch to minimize plant downtime.

Product Sourcing FAQ

Q1: How does the Honeywell 51309150-175 contribute to operational stability in a TDC 3000 system?
The 51309150-175 delivers stable, accurate 4–20 mA output signals to field actuators, control valves, and VFD-driven motors. Precise signal output eliminates control loop hunting and actuator overcorrection — two of the most common sources of hidden unplanned downtime in process plants. By keeping actuators operating at their optimal setpoints, the module reduces unnecessary mechanical work and associated operating load across the production line.

Q2: Is the 51309150-175 compatible with all TDC 3000 system configurations?
Yes. The 51309150-175 is designed for the Honeywell TDC 3000 platform and is compatible with HPM, LCN, and UCN-based architectures. It slots into standard TDC 3000 I/O card cages and communicates via the native backplane bus. For specific slot compatibility or firmware revision requirements, we recommend verifying against your system’s I/O configuration documentation or contacting our technical team.

Q3: Can this module replace a failed analog output card without a full system shutdown?
In many TDC 3000 configurations, I/O modules can be replaced with minimal disruption, particularly where redundant I/O or hot-swap-capable card cages are installed. The replacement procedure should follow Honeywell’s standard maintenance guidelines for the TDC 3000 platform. ZYPLC supplies fully tested, ready-to-install units to ensure the replacement process is as fast and risk-free as possible.

Q4: What testing does ZYPLC perform before shipping the 51309150-175, and what warranty is included?
Every Honeywell 51309150-175 supplied by ZYPLC undergoes comprehensive functional testing, including output channel verification, signal accuracy checks, and backplane communication validation. Units are confirmed operational before dispatch. All modules are covered by a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions.
