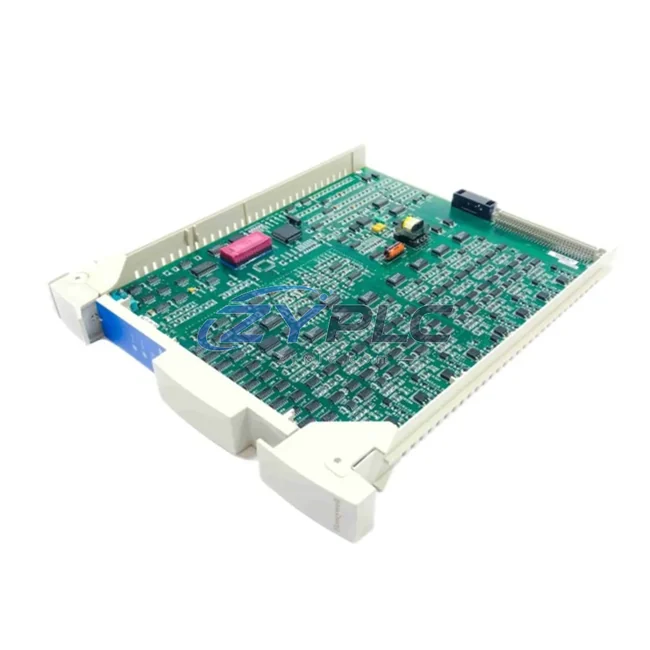

Honeywell 51309152-175 Analog Output Module TDC 3000 Series

Honeywell 51309152-175 Analog Output Module: Industrial Data Link for TDC 3000 DCS Networks

The Honeywell 51309152-175 is a precision Analog Output Module engineered for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, and continuous manufacturing environments. Delivering stable 4-20mA analog signal output, this module serves as a critical node in the industrial data chain, converting digital control commands from the DCS controller into precise field-level signals that drive control valves, variable frequency drives, positioners, and other final control elements.

In a modern smart factory, data integrity across every layer of the control hierarchy is non-negotiable. The 51309152-175 ensures that process setpoints generated at the SCADA or DCS operator station are faithfully transmitted to field instruments without signal degradation or latency. Whether the upstream command originates from a Honeywell TDC 3000 High-Performance Process Manager (HPM), a Universal Control Network (UCN) node, or a supervisory application interfacing via OPC-DA, this module maintains the analog output loop with the precision and reliability that continuous process industries demand.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the role of the Honeywell 51309152-175 requires tracing the full industrial data flow from the operator station down to the field device. At the top of the hierarchy, process engineers interact with the Honeywell TDC 3000 operator console or a modern Honeywell Experion PKS HMI station, issuing setpoint commands for critical process variables such as flow rate, pressure, temperature, or level. These commands travel down through the Local Control Network (LCN) to the High-Performance Process Manager (HPM) or Application Module (AM), where control algorithms execute the PID loop calculations.

The resulting digital output value is then passed to the 51309152-175 Analog Output Module via the UCN backplane, where it is converted into a precise 4-20mA signal. This signal drives field devices such as Fisher control valves, Siemens SINAMICS variable frequency drives, or Yokogawa EJA-series smart transmitters configured in reverse-acting loops. In parallel, HART protocol communication layered over the 4-20mA loop allows asset management systems — such as Honeywell Field Device Manager (FDM) or Emerson AMS Device Manager — to perform remote diagnostics, calibration verification, and predictive maintenance on connected field instruments without interrupting the live control loop.

For sites integrating legacy TDC 3000 infrastructure with modern IIoT architectures, the 51309152-175 can coexist with Honeywell’s UCN Gateway modules and third-party OPC servers, enabling SCADA platforms such as Wonderware System Platform, Ignition by Inductive Automation, or Honeywell Uniformance PHD to collect real-time process data for historian archiving, KPI dashboards, and advanced process control (APC) applications. Remote I/O extensions using Honeywell HLAI or HDAI modules on the same UCN segment can further expand the analog I/O capacity without requiring additional controller hardware, making the 51309152-175 a scalable component in both brownfield upgrades and greenfield DCS deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging process plants is data isolation — the inability to move process information seamlessly between field devices, DCS controllers, and enterprise-level systems. The Honeywell 51309152-175 directly addresses this challenge by providing a reliable, standards-compliant analog output interface that bridges the gap between digital control logic and physical process actuation.

In facilities where multiple control platforms coexist — for example, a Honeywell TDC 3000 DCS managing the main process unit alongside a Siemens S7-400 PLC controlling auxiliary utilities — the 51309152-175 enables analog signal handoff between systems through shared 4-20mA loops, eliminating the need for costly protocol converters on every output channel. When integrated with a Modbus TCP or PROFIBUS gateway at the UCN boundary, process data from the TDC 3000 can be made available to plant-wide SCADA systems, enabling operators to achieve full production line transparency from a single HMI screen.

Remote monitoring and diagnostics are equally critical for unplanned downtime prevention. With HART-enabled field devices connected to the 51309152-175 output loops, maintenance teams can remotely interrogate valve positioners, verify actuator response curves, and detect loop integrity issues — all without physical access to the field junction box. This capability is especially valuable in hazardous area installations where entry requires gas clearance procedures. Combined with Honeywell’s UCN redundancy architecture, the 51309152-175 supports hot-standby configurations that ensure continuous output signal delivery even during controller failover events, protecting process stability and product quality.

System expansion is straightforward: additional 51309152-175 modules can be inserted into available UCN slots without system shutdown, and the TDC 3000 configuration database can be updated online to recognize new I/O points. This plug-and-expand capability makes it practical to incrementally add control loops as production capacity grows, without the capital expenditure of a full DCS migration.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 51309152-175 support?
The 51309152-175 operates natively on the Honeywell TDC 3000 Universal Control Network (UCN) and Local Control Network (LCN) backplane bus. Its field-side output is a standard 4-20mA analog signal, which is compatible with HART protocol when paired with HART-capable field devices. For integration with external systems, UCN Gateway modules can bridge TDC 3000 data to OPC-DA servers, enabling connectivity to SCADA, MES, and historian platforms.

Q2: How does this module perform in terms of communication latency and signal stability?
The 51309152-175 is designed for continuous process control where signal stability is paramount. The UCN backplane provides deterministic, low-latency communication between the HPM controller and the output module, ensuring that setpoint changes are reflected at the field device within the DCS scan cycle time. The 4-20mA output loop provides inherent noise immunity over long cable runs, making it suitable for large-scale process plants with field devices located hundreds of meters from the control room.

Q3: Can the 51309152-175 be integrated into a modern SCADA or IIoT architecture without replacing the TDC 3000 DCS?
Yes. The TDC 3000 platform supports OPC connectivity through Honeywell’s server software, allowing SCADA systems such as Ignition, Wonderware, or Honeywell Uniformance to read and write process data without modifying the existing DCS configuration. The 51309152-175 continues to handle field-level output while the SCADA layer provides supervisory monitoring, alarm management, and data historian functions — extending the useful life of the TDC 3000 investment while adding modern IIoT capabilities.

Q4: What warranty and quality assurance does ZYPLC provide for the Honeywell 51309152-175?
Every Honeywell 51309152-175 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each module undergoes functional verification testing to confirm output signal accuracy, backplane communication integrity, and channel isolation performance. Units are sourced from verified supply channels and shipped with full traceability documentation. Availability is confirmed via RFQ for shipment arranged after confirmation with global logistics support.
