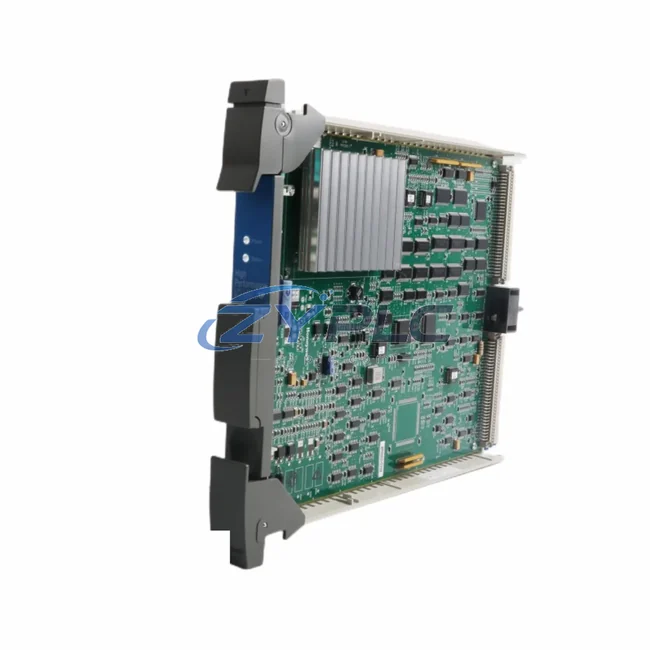

Honeywell 51309276-150 Digital Output for TDC 3000

Honeywell 51309276-150 Digital Output for TDC 3000: Compatibility and Replacement Notes

The Honeywell 51309276-150 is a Digital Output Module engineered specifically for deployment within the Honeywell TDC 3000 and TPS (Total Plant Solution) Distributed Control System architecture. Rather than functioning as a standalone component, this module occupies a critical position within the I/O layer of a multi-tier automation hierarchy — bridging the gap between the process control layer and the field execution layer. Its role is to translate digital command signals issued by the Honeywell Universal Control Network (UCN) or Local Control Network (LCN) into discrete switching actions that drive actuators, solenoid valves, motor starters, and relay-based field devices across the plant floor.

In a fully integrated TDC 3000 environment, the 51309276-150 operates in coordination with the High-Performance Process Manager (HPM) or the Advanced Process Manager (APM), receiving output commands through the I/O Link interface. The module is designed to slot into the standard Honeywell I/O card cage, sharing backplane power and communication infrastructure with adjacent analog and digital input modules. This tight architectural integration ensures deterministic signal delivery, minimizes wiring complexity, and supports the system’s overall scan cycle integrity — a critical requirement in continuous process environments such as refining, petrochemical, and power generation facilities.

From a system architecture perspective, the 51309276-150 contributes directly to the output execution layer, which sits below the control strategy layer (where PID loops and logic sequences reside in the HPM) and above the field device layer (where actuators and switchgear operate). This layered model — spanning the operator interface through the Honeywell GUS (Global User Station) or HMIWeb Display Builder, down through the LCN/UCN network backbone, through the process manager, and finally to the I/O module — defines the signal flow path that the 51309276-150 anchors at its terminal point.

Maintaining a consistent and well-documented I/O architecture is essential for long-term plant reliability. The 51309276-150 supports this goal by conforming to the standard Honeywell card form factor, enabling hot-swap replacement without process interruption in redundancy-configured systems. When paired with a redundant HPM or APM controller, the output module participates in the system’s fault-tolerant design, ensuring that a single card failure does not result in loss of output control across the associated field devices. This redundancy capability is a key reason why TDC 3000 systems remain in active service across aging but mission-critical infrastructure worldwide.

Supply chain continuity for legacy DCS platforms is a persistent engineering challenge. The 51309276-150 is stocked, tested, and available for shipment arranged after confirmation, supporting both emergency replacement scenarios and planned maintenance outages. All units are covered by a warranty terms confirmed during quotation, providing procurement teams and plant engineers with the assurance needed for long-term maintenance budgeting. system integration support is available, meaning the module can be validated against your existing system configuration, firmware revision, and I/O assignment database prior to shipment.

Product Specification Table

System Compatibility Notes

The 51309276-150 does not operate in isolation. Its value is fully realized when understood within the context of the complete TDC 3000 system architecture. At the controller level, the Honeywell HPM (51304485-100) or APM (51401288-100) executes the control strategy and issues digital output commands to the I/O subsystem. These commands travel across the UCN coaxial network or fiber-optic LCN backbone, reaching the I/O card cage where the 51309276-150 is installed.

Within the same card cage, the 51309276-150 typically shares the backplane with Honeywell Analog Input Modules (51304516-150) and Analog Output Modules (51304754-150), forming a mixed I/O assembly that handles both continuous process variables and discrete switching functions. The card cage itself is powered by a dedicated Honeywell Power Supply Module (51109684-100), which provides regulated DC power to all installed cards and supports redundant power feed configurations for high-availability applications.

At the network layer, the Honeywell NIM (Network Interface Module, 51401195-100) manages communication between the UCN and the LCN, ensuring that output commands from the operator station reach the process manager and subsequently the I/O module with minimal latency. The operator interface — typically a Honeywell GUS (Global User Station) running HMIWeb Display Builder or the legacy Universal Station (US) — provides the human-machine interface layer through which operators issue commands that ultimately drive the 51309276-150’s output channels.

For applications requiring field-side signal conditioning and marshalling, the 51309276-150 is frequently used in conjunction with Honeywell FTA (Field Termination Assembly) panels such as the 51304441-150, which provide terminal block connectivity between the I/O card and field wiring. In relay-output applications, discrete output signals from the module are routed through interposing relay modules to drive higher-voltage or higher-current field devices safely. This architecture ensures galvanic isolation between the DCS electronics and the field power circuits, protecting both the control system and the field instrumentation from cross-contamination of fault conditions.

In redundancy-critical applications, the 51309276-150 is deployed alongside a redundant HPM controller pair, where the primary and secondary controllers maintain synchronized state. Upon primary controller failure, the secondary assumes control without interrupting the output state of the 51309276-150, ensuring bumpless transfer and continuous process operation — a requirement in refinery charge pump control, boiler management, and compressor sequencing applications. The Honeywell UCN Redundancy Module further reinforces network-layer resilience, ensuring that communication path failures do not propagate to the I/O execution layer.

When planning a card cage assembly for a new or expanded TDC 3000 system section, engineers typically combine the 51309276-150 with Digital Input Modules (51309276-100 series) to achieve balanced I/O coverage within a single backplane slot allocation. This co-location strategy reduces cabinet footprint, simplifies cable routing from the marshalling panel, and allows a single process manager to supervise a dense mix of discrete input and output points within a unified scan cycle — a key advantage in space-constrained control room environments.

Industrial Application Notes

The Honeywell 51309276-150 finds application across a broad range of process industries where the TDC 3000 or TPS platform remains the installed DCS of record. In petroleum refining, the module controls discrete outputs associated with pump start/stop sequences, valve open/close commands, and emergency shutdown (ESD) interlock outputs within crude distillation and fluid catalytic cracking (FCC) units. The deterministic output response of the TDC 3000 I/O architecture ensures that safety-critical switching actions are executed within the system’s defined scan cycle, meeting the response time requirements of SIL-rated interlock functions.

In petrochemical and chemical processing plants, the 51309276-150 manages discrete outputs for reactor feed valve sequencing, agitator motor control, and batch process step transitions. The module’s compatibility with the HPM’s sequential function chart (SFC) and logic control capabilities makes it well-suited for batch automation applications where discrete output timing and sequencing are tightly coupled to process conditions monitored through analog input channels on adjacent I/O cards.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module supports boiler auxiliary control, turbine bypass valve sequencing, and generator excitation system discrete outputs. The TDC 3000 platform’s long service history in power plant DCS applications means that the 51309276-150 is frequently required as a maintenance replacement to sustain aging but operationally sound control systems without the cost and risk of full DCS migration.

In water and wastewater treatment infrastructure, the module controls pump station start/stop commands, chemical dosing system actuators, and filter backwash valve sequences. Municipal utilities operating TDC 3000 systems benefit from the availability of tested replacement modules that extend system life and defer capital expenditure on platform upgrades. The warranty terms confirmed during quotation and system integration validation service provide additional assurance for public-sector procurement processes that require documented quality standards.

In mining and minerals processing, the 51309276-150 supports discrete output control for conveyor drive starters, crusher interlock systems, and flotation cell reagent dosing valves. The module’s robust design and compatibility with the TDC 3000’s fault-tolerant architecture make it appropriate for the demanding electrical environments typical of mineral processing facilities, where vibration, dust ingress, and wide ambient temperature ranges place elevated stress on control system hardware.

In metallurgical and steel production environments, the module is used to control discrete outputs for furnace burner management systems, rolling mill drive sequencing, and cooling water valve control. The TDC 3000’s proven track record in heavy industry applications, combined with the availability of tested spare modules such as the 51309276-150, allows metallurgical plant operators to maintain system integrity without committing to disruptive platform migrations during active production campaigns.

Product Compatibility FAQ

Q1: Is the Honeywell 51309276-150 compatible with both the HPM and APM controllers in a TDC 3000 system, and how is compatibility verified before installation?
Yes. The 51309276-150 is designed for use within the standard Honeywell TDC 3000 I/O subsystem and is compatible with both the High-Performance Process Manager (HPM) and the Advanced Process Manager (APM). It communicates via the I/O Link interface on the UCN/LCN backplane and conforms to the standard Honeywell card cage form factor. Prior to installation, it is recommended to verify the firmware revision of the installed process manager against the module’s hardware revision to confirm full compatibility. As part of our system integration support, our engineering team can cross-reference your system’s I/O assignment database and firmware environment against the module’s hardware revision before shipment, eliminating compatibility uncertainty at the point of installation.

Q2: Can the 51309276-150 be replaced without shutting down the entire DCS system, and what procedure is recommended for non-redundant configurations?
In systems configured with redundant HPM or APM controllers and appropriate I/O redundancy, the 51309276-150 can be replaced with minimal process disruption. The redundant controller maintains output state during the card swap, enabling bumpless transfer back to the replaced module after installation. In non-redundant configurations, a planned output inhibit procedure should be followed in coordination with the process operations team — typically involving placing affected output points in manual mode at the operator station before physically removing the card. Our engineering support team can provide guidance on replacement procedures specific to your system architecture as part of the warranty terms confirmed during quotation service coverage.

Q3: What documentation and testing is provided with the 51309276-150 to support long-term maintenance planning and system audit requirements?
All units are functionally tested prior to shipment using Honeywell-compatible test equipment to verify output channel integrity, backplane communication, and power consumption within specification. A test report is available upon request. For long-term maintenance planning, we recommend maintaining a minimum of one spare 51309276-150 per card cage assembly to support rapid replacement during unplanned outages. The warranty terms confirmed during quotation covers functional defects identified during normal operation, and system integration support is available to validate the module against your specific system configuration, I/O assignment database, and firmware environment before deployment — providing the documented evidence trail required for plant maintenance management systems (CMMS) and regulatory audit compliance.
