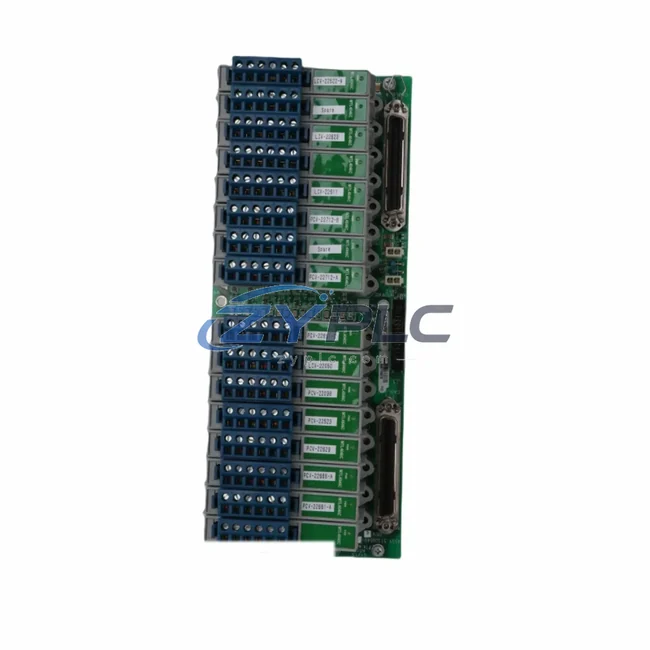

Honeywell 51309540-175 Analog Output for TDC 3000

Honeywell 51309540-175 Analog Output for TDC 3000

The Honeywell 51309540-175 is a precision Analog Output Module engineered for seamless integration within the TDC 3000 Distributed Control System (DCS) architecture. Designed to deliver stable, high-resolution analog signal output across demanding industrial environments, this module occupies a critical position in the control layer of process automation systems. Whether deployed in continuous process manufacturing, power generation, petrochemical refining, or water treatment facilities, the 51309540-175 ensures deterministic signal delivery from the controller to field-level actuators, control valves, and variable-speed drives.

In a fully layered automation architecture, the 51309540-175 bridges the gap between the supervisory control layer and the physical execution layer. It receives setpoint commands from the TDC 3000 Universal Control Network (UCN) and translates them into precise 4–20 mA analog output signals that drive downstream field devices. This system integration capability ensures that the module does not operate in isolation — it functions as a coordinated node within a broader system that includes redundant controllers, I/O subsystems, communication gateways, and human-machine interfaces.

System architects and maintenance engineers rely on the 51309540-175 for its compatibility with the TDC 3000 High-Performance Process Manager (HPPM) and Process Manager (PM) platforms. Its rack-mount form factor allows direct installation into standard TDC 3000 I/O Link cabinets, reducing integration complexity and minimizing wiring overhead. The module supports hot-swap capability in redundant configurations, enabling maintenance teams to replace units without process interruption — a critical requirement in continuous-operation facilities such as refineries and chemical plants.

From a system redundancy perspective, the 51309540-175 is typically deployed alongside redundant power supply modules such as the Honeywell 51304516-150 and 51304516-200, which provide dual-feed power distribution across the I/O cabinet. Redundant controller pairs using the Honeywell 51401469-100 or 51402573-150 processor modules ensure that output commands are maintained even during a primary controller failover event. This architecture guarantees uninterrupted analog output continuity across all critical control loops.

Signal integrity is maintained through the module’s internal diagnostics, which continuously monitor output channel health and report fault conditions back to the TDC 3000 operator console via the Universal Control Network. Operators working at Honeywell GUS (Global User Station) or PHD (Process History Database) workstations receive real-time alerts when output deviation or channel failure is detected, enabling rapid corrective action. This closed-loop diagnostic capability is essential for maintaining process safety and regulatory compliance in industries governed by IEC 61511 or ISA-84 functional safety standards.

For system expansion, the 51309540-175 integrates naturally with Honeywell’s I/O Link extender modules and fiber-optic communication cards, allowing the analog output subsystem to be distributed across remote I/O enclosures located up to several hundred meters from the main control room. This distributed I/O topology is commonly used in large-scale petrochemical complexes, offshore platforms, and power plant control rooms where field devices are geographically dispersed. Complementary modules such as the Honeywell 51304441-150 Analog Input Module and 51309218-175 Digital Output Module are frequently installed in adjacent slots to create a balanced mixed-signal I/O assembly within the same rack.

Communication stability between the 51309540-175 and the TDC 3000 controller is maintained through the proprietary I/O Link protocol, which provides deterministic scan cycle performance and fault-tolerant data transmission. In systems where Modbus RTU or HART protocol integration is required for field device communication, the module works in conjunction with Honeywell HART Multiplexers and protocol gateway cards to enable bidirectional digital communication overlaid on the 4–20 mA analog signal. This hybrid communication architecture supports advanced asset management and predictive maintenance workflows without requiring additional field wiring.

Engineering teams commissioning new TDC 3000 systems or upgrading legacy installations will find the 51309540-175 fully compatible with Honeywell’s Control Builder and TDC 3000 configuration tools. Module addressing, channel scaling, and output range configuration are performed through the standard TDC 3000 engineering console, eliminating the need for proprietary handheld configurators. This streamlines the commissioning process and reduces the risk of configuration errors during system startup.

Long-term maintenance planning is simplified by the module’s standardized form factor and backward compatibility with earlier TDC 3000 I/O generations. Facilities maintaining mixed-generation TDC 3000 installations can stock the 51309540-175 as a universal replacement for multiple legacy analog output variants, reducing spare parts inventory complexity. ZYPLC maintains availability subject to RFQ confirmation of the 51309540-175 with full functional testing, ensuring that replacement units are ready for immediate deployment with a confirmed warranty terms confirmed during quotation covering all hardware defects and operational failures.

Product Specification Table

System Compatibility Notes

The 51309540-175 achieves its full performance potential when deployed as part of a coordinated TDC 3000 control system architecture. In a typical process control cabinet, the module is installed alongside the Honeywell 51304441-150 Analog Input Module, which handles field sensor signal acquisition, and the Honeywell 51309218-175 Digital Output Module, which manages discrete actuator commands. Together, these three modules form a complete mixed-signal I/O assembly capable of handling both continuous process variables and discrete control actions within a single rack.

Controller redundancy is provided by paired Honeywell 51401469-100 Process Manager Processor Modules, which maintain synchronized control execution and ensure seamless failover without output disturbance. Cabinet power distribution relies on the Honeywell 51304516-150 Power Supply Module and its redundant counterpart, the 51304516-200, which provide dual-feed 24 VDC distribution across all I/O modules in the rack. The Honeywell 51402573-150 High-Performance Process Manager Module serves as the primary controller in high-density loop applications, coordinating output commands to the 51309540-175 across multiple control strategies simultaneously.

Network connectivity between the control room and remote I/O enclosures is managed through Honeywell UCN Coax Taps and fiber-optic I/O Link extender cards, which maintain deterministic communication latency across extended cable runs. At the human-machine interface layer, Honeywell GUS Operator Workstations provide real-time visualization of analog output values, loop status, and channel diagnostics, enabling operators to monitor the 51309540-175’s performance without leaving the control room. This fully integrated architecture — spanning controller, I/O, network, power, and HMI layers — represents the standard deployment model for TDC 3000 systems in continuous process industries.

Industrial Application Notes

The Honeywell 51309540-175 is deployed across a wide range of industrial sectors where precise analog output control is essential for process stability and safety. In petrochemical refining, the module drives control valve positioners on distillation column feed streams, maintaining precise flow rates and temperature profiles across multiple process units. In power generation facilities, it provides setpoint signals to turbine governor systems and boiler feedwater control valves, where output accuracy directly impacts generation efficiency and grid stability.

In water and wastewater treatment plants, the 51309540-175 controls variable-speed pump drives and chemical dosing systems, enabling precise flow and concentration management across treatment stages. Mining and mineral processing operations use the module to regulate conveyor speed drives, flotation cell aeration rates, and thickener rake drives, where consistent analog output is critical for maintaining throughput and product quality. In metallurgical and steel production facilities, the module provides precise temperature setpoints to furnace heating elements and cooling water flow controllers, supporting tight thermal management across smelting and rolling processes.

Pharmaceutical and fine chemical manufacturers rely on the 51309540-175 for reactor temperature and pressure control loops, where output repeatability and diagnostic transparency are required for batch record compliance. In packaging and food processing lines, the module drives servo amplifiers and proportional control valves on filling, sealing, and conveying systems, ensuring consistent product quality at high production speeds. Across all these applications, the module’s compatibility with the TDC 3000 architecture ensures that system upgrades, expansions, and maintenance activities can be performed without disrupting ongoing production.

Product Compatibility FAQ

Q1: Is the Honeywell 51309540-175 compatible with both HPPM and PM controller platforms within the TDC 3000 architecture?
Yes. The 51309540-175 is designed for use within the TDC 3000 I/O Link subsystem and is compatible with both the High-Performance Process Manager (HPPM) and the standard Process Manager (PM) controller platforms. It communicates via the TDC 3000 I/O Link protocol, which is consistent across both controller generations. System architects integrating the module into mixed-generation TDC 3000 installations should verify cabinet backplane revision compatibility and I/O Link address assignments during the engineering phase to ensure conflict-free operation.

Q2: Can the 51309540-175 be replaced during live process operation in a redundant TDC 3000 system?
In TDC 3000 systems configured with redundant I/O and controller pairs, the 51309540-175 supports hot-swap replacement procedures, allowing maintenance teams to remove and install the module without requiring a process shutdown. The redundant controller pair maintains output continuity during the replacement window, and the new module is automatically recognized and configured by the TDC 3000 system upon reinsertion. It is recommended to follow Honeywell’s standard I/O replacement procedure and verify channel output values at the GUS operator station after reinsertion to confirm correct operation before returning the loop to automatic control.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover for the Honeywell 51309540-175?
ZYPLC’s warranty terms confirmed during quotation covers all hardware defects, component failures, and operational malfunctions identified under normal operating conditions consistent with the TDC 3000 system environment. Each unit undergoes functional testing prior to shipment to verify analog output accuracy, channel integrity, and communication performance. In the event of a warranty claim, ZYPLC provides direct technical support and replacement unit coordination to minimize system downtime. For warranty inquiries or to request a replacement, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
