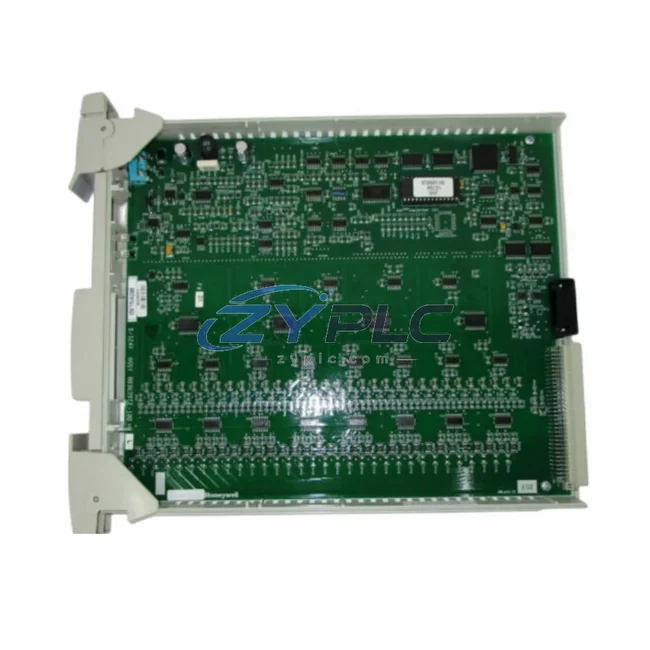

Honeywell 51401135-300 Digital Input Assembly Module for TDC3000 Systems

Honeywell 51401135-300 Digital Input Assembly Module: Industrial Data Link for TDC3000 Smart Factory Networks

The Honeywell 51401135-300 is a high-reliability Digital Input Assembly Module engineered for seamless integration within the Honeywell TDC3000 / TotalPlant Solution (TPS) Distributed Control System architecture. Designed to serve as a critical node in the industrial data chain, this module bridges field-level discrete signals — from limit switches, proximity sensors, pushbuttons, and relay contacts — directly into the DCS control backbone, enabling real-time process visibility, alarm management, and supervisory control across complex manufacturing and process automation environments.

In modern smart factory deployments, the integrity of signal acquisition at the field level determines the quality of every decision made upstream. The 51401135-300 accepts 24VDC digital input signals and conditions them for reliable transmission through the Honeywell High-Performance Process Manager (HPM) and Advanced Process Manager (APM) controllers, ensuring that SCADA platforms and HMI workstations receive accurate, low-latency status data from every connected device on the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

Within a TDC3000 control architecture, the Honeywell 51401135-300 sits at the foundation of the digital signal chain. Field instruments — including two-wire proximity sensors, solenoid valve position feedback contacts, and motor run/stop relay outputs — wire directly into the module’s input terminals. The module then encodes these discrete states and transmits them over the Honeywell UCN (Universal Control Network) to the High-Performance Process Manager (HPM), where control logic evaluates conditions and triggers automated responses.

Upstream, the Honeywell Network Interface Module (NIM) manages communication between the UCN and the LCN (Local Control Network), routing real-time I/O data to Honeywell Universal Stations (US) and History Modules (HM) for operator display and data archiving. When integrated with a Honeywell Application Module (AM), the digital input states captured by the 51401135-300 can trigger advanced regulatory and sequential control strategies, including interlocks, permissives, and safety shutdowns.

For facilities running hybrid architectures, the Honeywell Gateway (HG) node enables protocol bridging between the TDC3000 LCN and modern Ethernet-based SCADA systems or OPC-DA/UA servers, allowing the digital input data from the 51401135-300 to flow seamlessly into plant-wide MES and ERP platforms. Alongside companion modules such as the Honeywell 51401132-100 Analog Input Assembly and the Honeywell 51401136-100 Digital Output Assembly, the 51401135-300 forms a complete I/O subsystem capable of handling both status monitoring and command execution within the same DCS cabinet.

In process industries — refining, petrochemical, power generation, and pharmaceutical manufacturing — the 51401135-300 is frequently deployed alongside Honeywell 51304485-100 Power Entry Modules and 51401196-100 I/O Link Interface Modules to ensure stable backplane power distribution and reliable data bus communication. Remote I/O extensions using Honeywell 51401260-100 Remote I/O Controllers further extend the reach of the digital input network to field junction boxes located hundreds of meters from the main control room, without compromising signal integrity or scan cycle performance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to aggregate, contextualize, and act on field-level discrete signals in real time. Older wiring architectures often result in signal data being trapped at the I/O level, invisible to SCADA dashboards, HMI trend screens, or remote diagnostic tools until a fault has already escalated into a production stoppage.

The Honeywell 51401135-300 directly addresses this problem by providing a structured, protocol-consistent pathway for digital input data to travel from field devices through the UCN/LCN backbone to every supervisory layer of the control system. With proper configuration within the Honeywell TDC3000 Engineering Console, each input point on the 51401135-300 can be assigned a unique tag, alarm priority, and historian logging interval — ensuring that every discrete event is captured, timestamped, and made available for trend analysis, compliance reporting, and predictive maintenance workflows.

For facilities undergoing digital transformation, the 51401135-300 supports production line transparency by feeding real-time equipment status data into SCADA visualization layers. Operators gain immediate visibility into valve positions, motor states, conveyor run/stop conditions, and safety interlock status — all from a single HMI screen. When combined with OPC server integration via the Honeywell HG gateway, this data can be pushed to cloud-based analytics platforms, enabling remote diagnostics and condition monitoring without requiring physical access to the control room.

System expansion is equally straightforward: additional 51401135-300 modules can be installed in available HPM I/O slots without requiring controller reconfiguration, making it an ideal solution for phased capacity expansions in growing process plants. All modules supplied by ZYPLC undergo pre-shipment functional testing to verify input channel integrity, backplane communication, and LED status indication before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocol does the Honeywell 51401135-300 use, and is it compatible with modern SCADA systems?
The 51401135-300 communicates natively over the Honeywell UCN and LCN proprietary networks within the TDC3000/TPS DCS architecture. Integration with modern SCADA systems is achieved through the Honeywell Gateway (HG) node or OPC-DA/UA server middleware, which translates LCN data into standard industrial protocols accessible by third-party SCADA and MES platforms.

Q2: How does the module handle network stability and signal integrity in high-noise industrial environments?
The 51401135-300 is designed with optical isolation on each input channel, providing robust noise immunity against electromagnetic interference (EMI) common in motor control centers, variable frequency drives, and high-voltage switchgear environments. The module’s backplane communication is managed by the HPM controller’s deterministic scan cycle, ensuring consistent, jitter-free data delivery to the LCN regardless of field-side noise conditions.

Q3: Can the 51401135-300 be expanded or replaced without shutting down the entire DCS system?
In most TDC3000 configurations, I/O modules can be replaced during planned maintenance windows with minimal disruption. Hot-swap capability depends on the specific HPM chassis configuration and site safety procedures. ZYPLC recommends consulting the Honeywell TDC3000 Hardware Installation Guide and coordinating with your DCS engineer before performing live module replacements. All units supplied include a warranty terms confirmed during quotation covering manufacturing defects and functional failures.

Q4: What pre-shipment testing does ZYPLC perform on the Honeywell 51401135-300?
Every 51401135-300 unit dispatched by ZYPLC undergoes a multi-point functional inspection: input channel continuity verification, backplane connector integrity check, LED status indicator test, and visual inspection for component damage or corrosion. Units are shipped in anti-static packaging with full traceability documentation. Availability is confirmed via RFQ for same-week dispatch, and a warranty terms confirmed during quotation is provided on all supplied modules.
