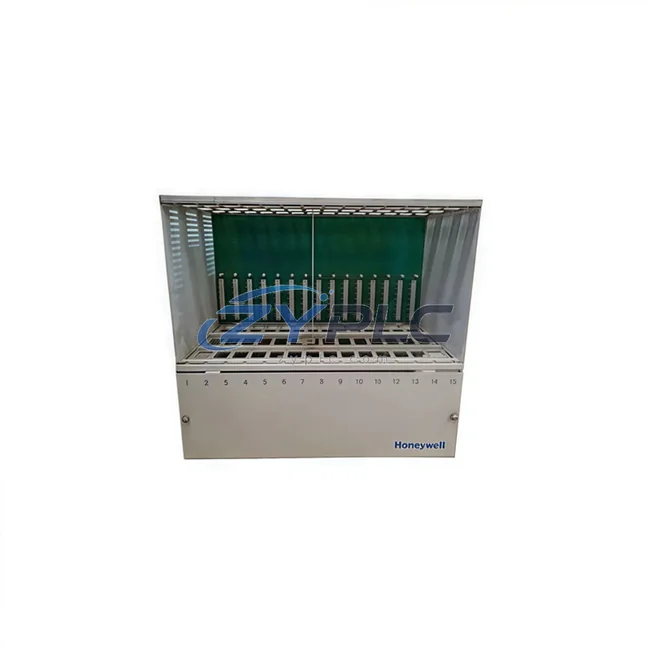

Honeywell 51401406-100 I/O Chassis for TDC 3000

Honeywell 51401406-100 I/O Chassis: Compatibility and Replacement Notes

The Honeywell 51401406-100 I/O File Chassis Rack is a foundational structural component within the Honeywell TDC 3000 Distributed Control System (DCS) architecture. Designed to house and interconnect I/O modules, file cards, and communication interfaces, this chassis rack serves as the physical and electrical backbone of the I/O layer — the critical tier that bridges field instrumentation signals with the control and supervisory layers of a fully integrated process automation system.

In modern industrial automation, the integrity of the I/O layer directly determines the reliability of the entire control hierarchy. The 51401406-100 chassis provides the mechanical mounting structure, backplane signal routing, and power distribution pathways that allow individual I/O modules to communicate consistently with the High-Performance Process Manager (HPM) or the Basic Process Manager (BPM) — the CPU-level controllers that execute regulatory, sequential, and advanced control strategies within the TDC 3000 platform. By standardizing the physical interface between field wiring and control logic, this chassis eliminates signal ambiguity, reduces wiring complexity, and ensures that every I/O card inserted into the rack operates within its validated electrical environment.

System architects working with TDC 3000 installations understand that chassis selection is not a peripheral decision — it defines the scalability ceiling of the I/O subsystem. The 51401406-100 supports multi-slot card configurations, enabling engineers to populate the rack with a combination of Analog Input (AI) modules, Analog Output (AO) modules, Digital Input (DI) modules, and Digital Output (DO) modules according to the specific signal mix demanded by the process. This flexibility is essential in applications such as refinery distillation column control, boiler management systems, and continuous chemical reactor monitoring, where the ratio of analog to digital signals varies significantly across process units.

From a system integration perspective, the chassis rack coordinates directly with the Local Control Network (LCN) and the Universal Control Network (UCN) — the dual-layer communication infrastructure that gives TDC 3000 its distributed architecture. I/O modules seated in the 51401406-100 chassis pass process variable data upward through the UCN to the HPM, which in turn communicates with the operator interface layer via the LCN. This layered signal flow ensures that process data reaches the Honeywell GUS (Global User Station) or the Universal Station (US) operator consoles with minimal latency and maximum fidelity, supporting real-time process visualization and alarm management.

Redundancy is a core design principle in TDC 3000 deployments, and the 51401406-100 chassis is engineered to support redundant I/O configurations. When paired with redundant I/O Link modules and dual-path communication cards, the chassis enables bumpless switchover between primary and backup I/O paths — a capability that is non-negotiable in continuous process industries such as petrochemical production, power generation, and water treatment, where unplanned process interruptions carry significant safety and financial consequences. The chassis backplane architecture supports the signal integrity requirements of redundant module pairs, ensuring that both the active and standby I/O modules receive identical field signals at all times.

Power distribution within the 51401406-100 chassis is managed through the integrated backplane, which accepts regulated DC power from the Honeywell Power Supply modules installed in the associated power chassis or cabinet assembly. Proper power sequencing and voltage regulation at the chassis level protect sensitive I/O module electronics from transient disturbances originating in the field wiring environment — a particularly important consideration in installations located near variable-frequency drives (VFDs), large motor starters, or high-voltage switchgear. The chassis power architecture is compatible with the standard Honeywell 24 VDC I/O power supply modules used throughout the TDC 3000 product family.

For maintenance engineers responsible for long-term system upkeep, the 51401406-100 chassis offers a significant operational advantage: its standardized form factor and backplane pinout are consistent across the TDC 3000 I/O file family, meaning that replacement chassis can be installed and populated without requiring custom wiring modifications or firmware reconfiguration. This compatibility reduces mean time to repair (MTTR) during unplanned maintenance events and simplifies the spare parts management strategy for plant instrument departments. Combined with our warranty terms confirmed during quotation coverage, procurement teams can plan chassis replacements with confidence, knowing that the unit will perform to specification throughout the warranty period and beyond.

In multi-cabinet control room configurations, multiple 51401406-100 chassis racks are typically installed in adjacent equipment cabinets, each serving a dedicated process area or functional group. The modular nature of the TDC 3000 I/O architecture allows system integrators to expand I/O capacity incrementally by adding chassis racks without disrupting existing control loops — a critical capability during plant expansions or process modifications where maintaining production continuity is paramount. This system integration approach ensures that new I/O points are commissioned within the existing system context, preserving alarm configurations, historian tags, and control strategy associations.

Product Specification Table

System Compatibility Notes

The 51401406-100 chassis does not operate in isolation — its value is realized through its role as the integration point for a coordinated ensemble of TDC 3000 components. A complete I/O subsystem built around this chassis typically includes the following coordinated elements:

At the controller level, the Honeywell HPM (High-Performance Process Manager) serves as the primary CPU, executing control algorithms and communicating with I/O modules via the UCN. In redundant configurations, a secondary HPM module provides automatic failover, ensuring continuous control execution without operator intervention. The Honeywell BPM (Basic Process Manager) may be deployed in less critical process areas, sharing the same I/O chassis infrastructure while operating at a reduced control execution rate.

At the I/O module level, the chassis accommodates Honeywell HLAI (High-Level Analog Input) modules for 4–20 mA process variable inputs, Honeywell AO (Analog Output) modules for control valve positioner signals, and Honeywell DI/DO (Digital Input/Digital Output) modules for discrete field device status and command signals. Each module communicates with the HPM through the chassis backplane, eliminating the need for individual point-to-point wiring between the I/O layer and the controller.

At the network layer, the Honeywell NIM (Network Interface Module) and UCN Coax Cable assemblies provide the physical communication medium between the I/O chassis and the process manager. Redundant NIM configurations ensure that a single cable or interface failure does not interrupt I/O communication. At the supervisory layer, the Honeywell GUS (Global User Station) and Universal Station (US) operator consoles receive real-time process data from the HPM via the LCN, providing operators with the visualization and control interfaces needed for effective process management.

At the power layer, Honeywell TDC 3000 Power Supply modules provide regulated 24 VDC to the chassis backplane, with redundant power supply configurations available for critical applications. At the field termination layer, Honeywell FTA (Field Termination Assembly) panels provide the marshalling interface between field instrument cables and the I/O module connectors, simplifying wiring management and enabling I/O module replacement without disturbing field wiring.

Industrial Application Notes

The Honeywell 51401406-100 I/O File Chassis Rack has been deployed across a wide range of process industries where the TDC 3000 platform has established a long operational history:

Petroleum Refining and Petrochemical Processing: In crude distillation units, fluid catalytic cracking (FCC) units, and hydrocracker complexes, the 51401406-100 chassis supports the dense I/O requirements of continuous process control. Hundreds of analog input signals from temperature transmitters, pressure transmitters, and flow meters are aggregated through multiple chassis racks, providing the HPM with the real-time process data needed to maintain product quality and energy efficiency targets.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the chassis supports boiler control, turbine supervisory, and balance-of-plant automation systems. The redundant I/O capability of the TDC 3000 architecture — enabled by the chassis backplane design — is essential for maintaining continuous generation output and meeting grid reliability requirements.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent treatment plants use TDC 3000 systems with 51401406-100 chassis racks to manage chemical dosing, filtration, and disinfection processes. The chassis supports both analog control loops and discrete equipment control, providing a unified I/O infrastructure for mixed-signal process environments.

Mining and Metallurgy: In mineral processing plants and smelting operations, the chassis supports the high-temperature, high-vibration environments typical of primary metals production. The robust mechanical construction of the TDC 3000 I/O file chassis ensures reliable operation in the demanding ambient conditions of these facilities.

Chemical Manufacturing: Batch and continuous chemical reactors, distillation columns, and heat exchanger networks rely on TDC 3000 I/O systems built around the 51401406-100 chassis to maintain precise temperature, pressure, and flow control. The chassis supports the high I/O density required by complex reaction systems with multiple controlled variables and safety interlock inputs.

Product Compatibility FAQ

Q1: Is the Honeywell 51401406-100 chassis compatible with all TDC 3000 I/O module types, and can it be integrated into an existing TDC 3000 system without requiring a system-wide reconfiguration?

A: The 51401406-100 chassis is designed for system integration within the TDC 3000 I/O file architecture. It accepts the standard range of TDC 3000 I/O modules — including HLAI, AO, DI, and DO card types — and connects to the UCN via standard NIM interfaces. Adding a new chassis to an existing system requires only the assignment of a unique I/O Link address and the configuration of new I/O points within the TDC 3000 engineering database. No changes to existing control strategies, historian tags, or alarm configurations are required, making incremental I/O expansion straightforward and low-risk.

Q2: What redundancy configurations are supported when using the 51401406-100 chassis, and how does the system manage switchover during a module or communication failure?

A: The TDC 3000 architecture supports redundant I/O Link communication paths when the chassis is used with dual NIM configurations and redundant UCN coax segments. In a redundant I/O configuration, both the primary and backup communication paths are continuously active, and the HPM monitors the health of both paths in real time. Upon detection of a primary path failure, the system executes a bumpless switchover to the backup path within the scan cycle, with no interruption to control output signals. Redundant power supply configurations at the chassis level provide additional protection against power-related failures.

Q3: What does the warranty terms confirmed during quotation cover for the Honeywell 51401406-100 chassis, and what support is available during the warranty period for installation and commissioning issues?

A: Our warranty terms confirmed during quotation covers the Honeywell 51401406-100 chassis against defects in materials and workmanship under normal operating conditions. During the warranty period, units that fail to perform to specification will be repaired or replaced at no additional cost. Our technical support team is available to assist with installation verification, backplane continuity checks, module seating confirmation, and UCN communication diagnostics throughout the commissioning process. For ongoing maintenance planning, we recommend maintaining at least one spare chassis in the plant instrument store to minimize potential downtime during unplanned replacement events. Contact us at +86 19859288691 or plc.sales@zyplc.com for warranty claims and technical support.
